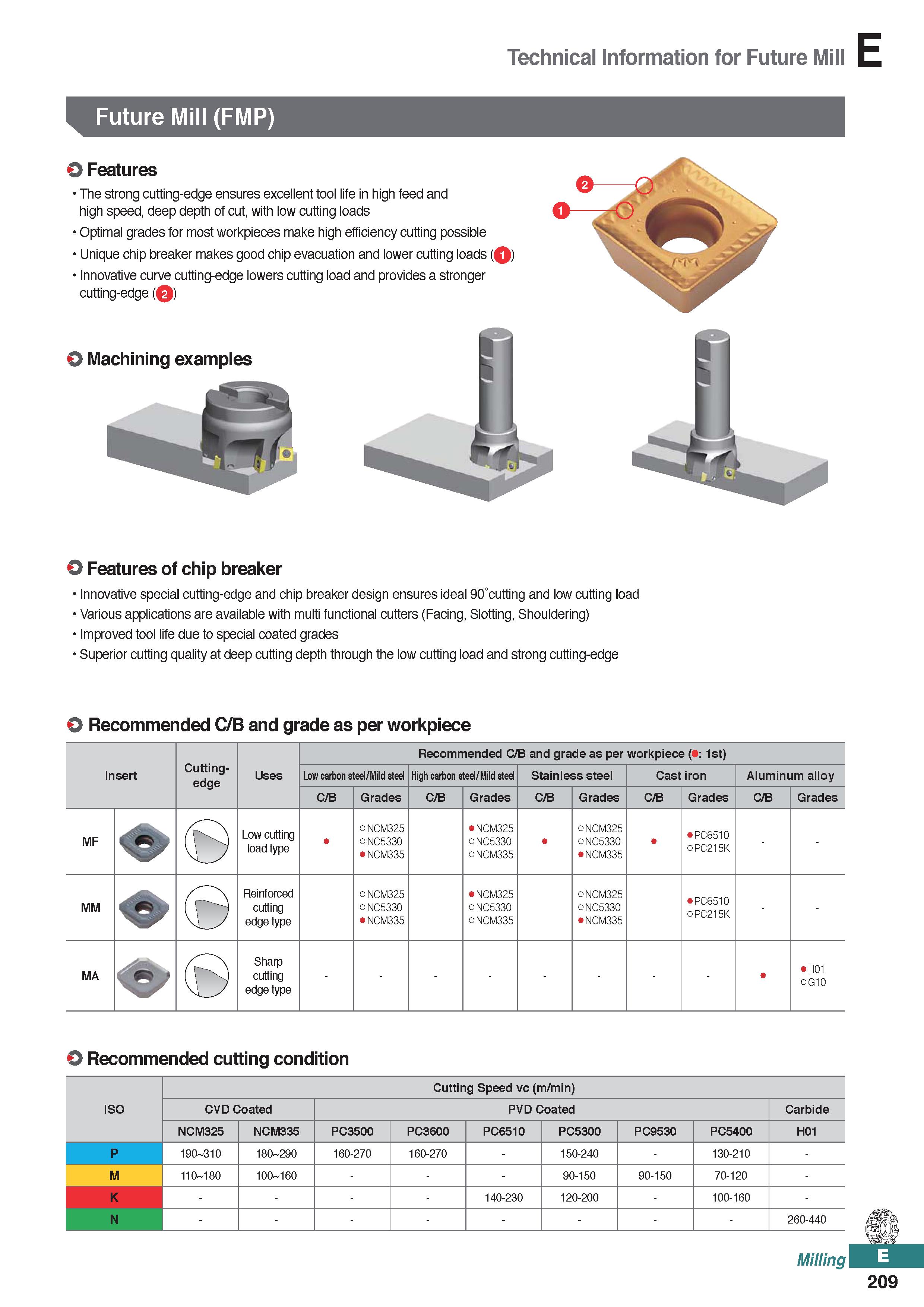

Technical Information for Future Mill Future Mill (FMP) O Features The strong cutting-edge ensures excellent tool life in high feed and high speed, deep depth of cut, with low cutting loads Optimal grades for most workpieces make high efficiency cutting possible Unique chip breaker makes good chip evacuation and lower cutting loads ) Innovative curve cutting-edge lowers cutting load and provides a stronger cutting-edge ( 2 ) O Machining examples O Features of chip breaker Innovative special cutting-edge and chip breaker design ensures ideal 90°cutting and low cutting load Various applications are available with multi functional cutters (Facing, Slotting, Shouldering) Improved tool life due to special coated grades Superior cutting quality at deep cutting depth through the low cutting load and strong cutting-edge O Recommended C/B and grade as per workpiece Cutting- edge Recommended C/B and grade as per workpiece ( : 1st) Insert Uses Low carbon steel/Mild steel High carbon steel/Mild steel Stainless steel Cast iron Aluminum alloy C/B Grades C/B Grades C/B Grades C/B Grades C/B Grades MF Low cutting load type ONCM325 ONC5330 NCM335 NCM325 ONC5330 ONCM335 ONCM325 ONC5330 NCM335 O 1 LO LO 1- CO Cv CC CL CL O MM Reinforced cutting edge type ONCM325 ONC5330 NCM335 NCM325 ONC5330 ONCM335 ONCM325 ONC5330 NCM335 O 1 LO LO 1- CO Cv CC CL CL O MA s Sharp cutting edge type H01 OG10 O Recommended cutting condition ISO Cutting Speed vc (m/min) CVD Coated PVD Coated Carbide NCM325 NCM335 PC3500 PC3600 PC6510 PC5300 PC9530 PC5400 H01 P 190 310 180 290 160-270 160-270 - 150-240 - 130-210 - M 110 180 100 160 - 90-150 90-150 70-120 - K 140-230 120-200 - 100-160 - N 260-440 Milling 209
