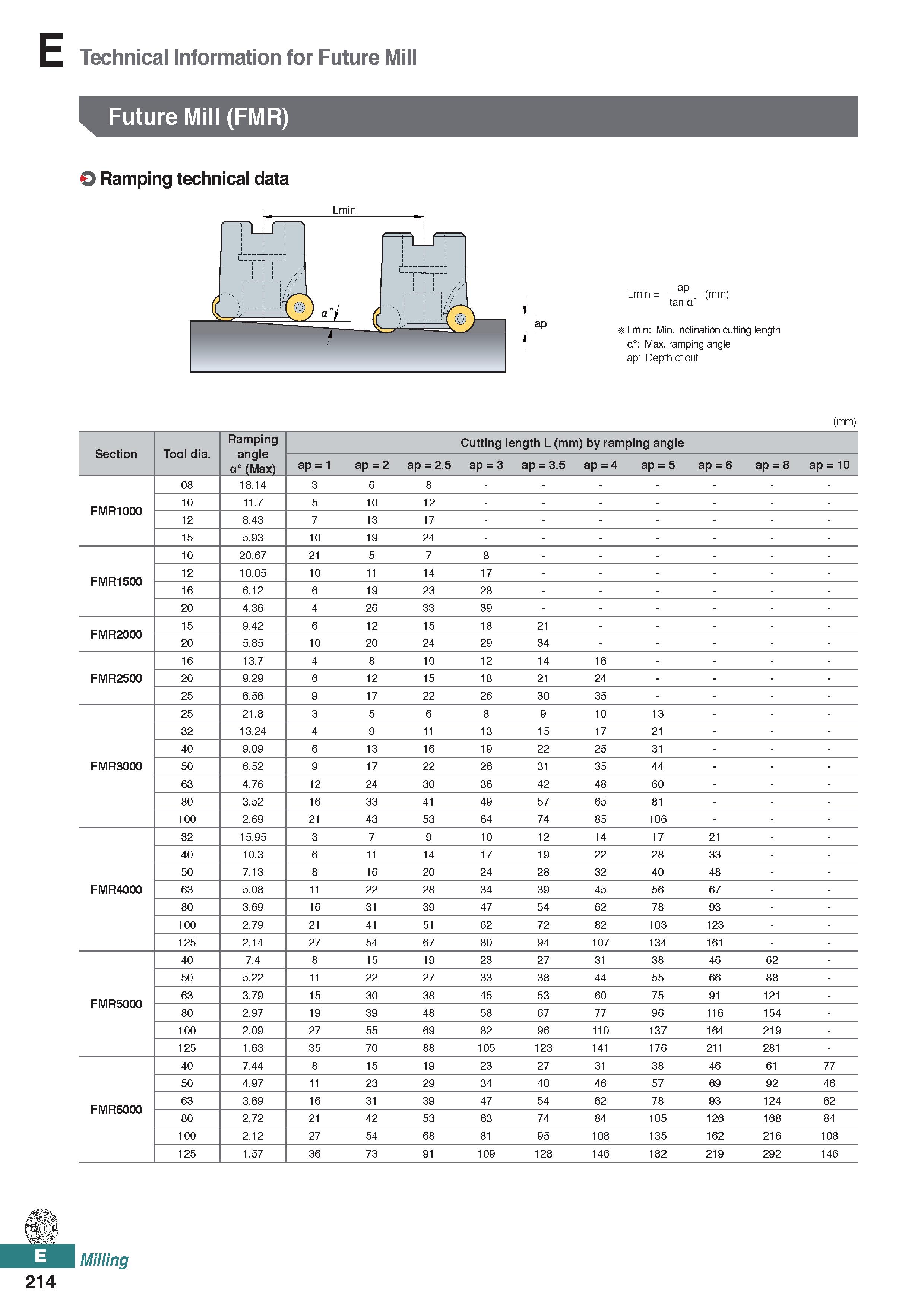

Technical Information for Future Mill Future Mill (FMR) O Ramping technical data Lmin ap Lmin = (mm) tan a° Lmin: Min. inclination cutting length a°: Max. ramping angle ap: Depth of cut (mm) Section Tool dia. Ramping angle a0 (Max) Cutting length L (mm) by ramping angle ap = 1 ap = 2 ap = 2.5 ap = 3 ap = 3.5 ap = 4 ap = 5 ap = 6 ap = 8 ap = 10 08 18.14 3 6 8 - FMR1000 10 11.7 5 10 12 - 12 8.43 7 13 17 - 15 5.93 10 19 24 - 10 20.67 21 5 7 8 FMR1500 12 10.05 10 11 14 17 16 6.12 6 19 23 28 20 4.36 4 26 33 39 FMR2000 15 9.42 6 12 15 18 21 - 20 5.85 10 20 24 29 34 - 16 13.7 4 8 10 12 14 16 FMR2500 20 9.29 6 12 15 18 21 24 25 6.56 9 17 22 26 30 35 25 21.8 3 5 6 8 9 10 13 - 32 13.24 4 9 11 13 15 17 21 - 40 9.09 6 13 16 19 22 25 31 - FMR3000 50 6.52 9 17 22 26 31 35 44 - 63 4.76 12 24 30 36 42 48 60 - 80 3.52 16 33 41 49 57 65 81 - 100 2.69 21 43 53 64 74 85 106 - 32 15.95 3 7 9 10 12 14 17 21 40 10.3 6 11 14 17 19 22 28 33 50 7.13 8 16 20 24 28 32 40 48 FMR4000 63 5.08 11 22 28 34 39 45 56 67 80 3.69 16 31 39 47 54 62 78 93 100 2.79 21 41 51 62 72 82 103 123 125 2.14 27 54 67 80 94 107 134 161 40 7.4 8 15 19 23 27 31 38 46 62 - 50 5.22 11 22 27 33 38 44 55 66 88 - FMR5000 63 3.79 15 30 38 45 53 60 75 91 121 - 80 2.97 19 39 48 58 67 77 96 116 154 - 100 2.09 27 55 69 82 96 110 137 164 219 - 125 1.63 35 70 88 105 123 141 176 211 281 - 40 7.44 8 15 19 23 27 31 38 46 61 77 50 4.97 11 23 29 34 40 46 57 69 92 46 FMR6000 63 3.69 16 31 39 47 54 62 78 93 124 62 80 2.72 21 42 53 63 74 84 105 126 168 84 100 2.12 27 54 68 81 95 108 135 162 216 108 125 1.57 36 73 91 109 128 146 182 219 292 146 214
