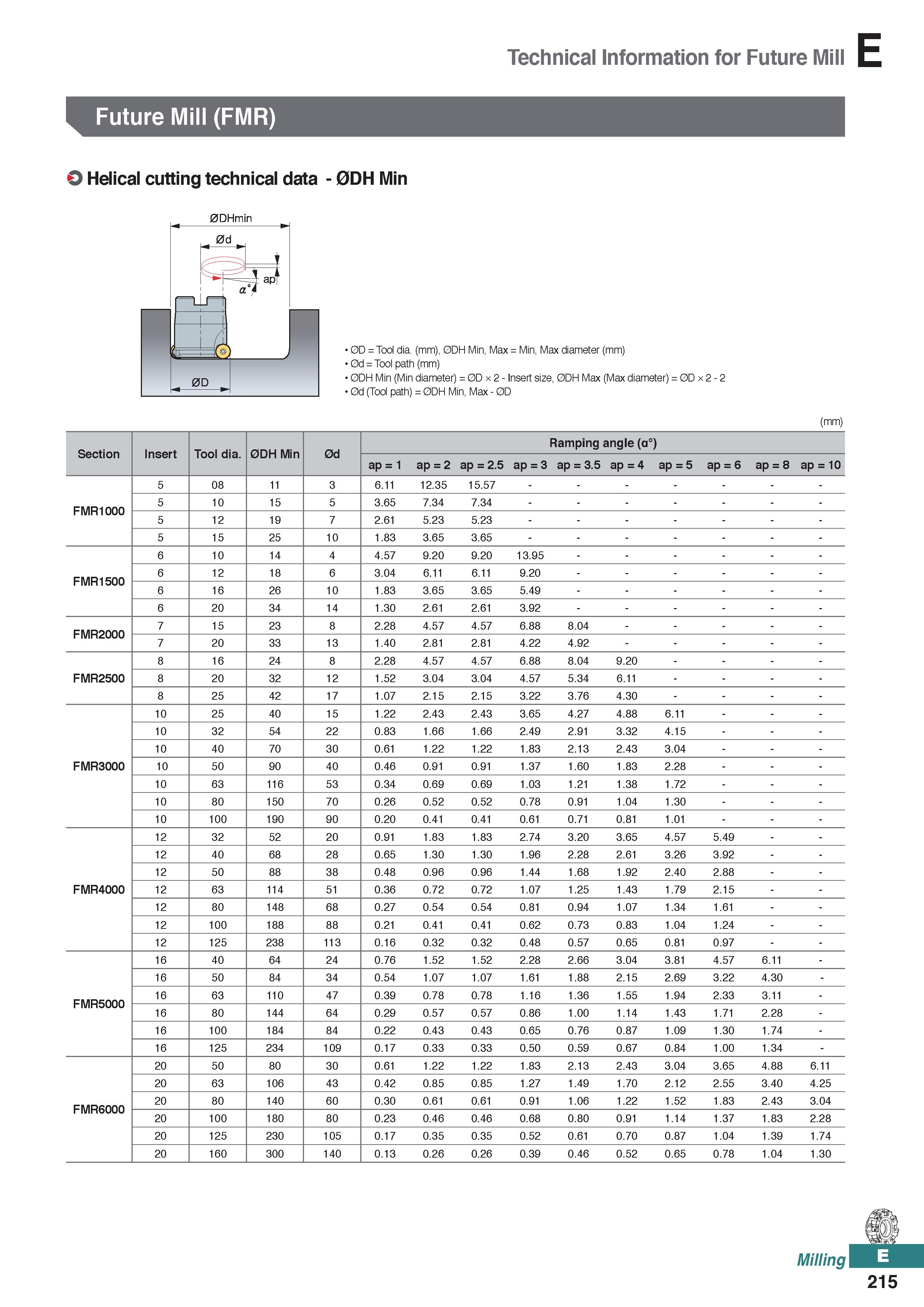

Technical Information for Future Mill Future Mill (FMR) O Helical cutting technical data - 0DH Min 0DHmin 0D = Tool dia. (mm), 0DH Min, Max = Min, Max diameter (mm) 0d = Tool path (mm) 0DH Min (Min diameter) = 0D x 2 - Insert size, 0DH Max (Max diameter) = 0D x 2 - 2 0d (Tool path) = 0DH Min, Max - 0D (mm) Section Insert Tool dia. 0DH Min 0d Ramping angle (a°) ap = 1 ap = 2 ap = 2.5 ap = 3 ap = 3.5 ap = 4 ap = 5 ap = 6 ap = 8 ap = 10 5 08 11 3 6.11 12.35 15.57 - FMR1000 5 10 15 5 3.65 7.34 7.34 - 5 12 19 7 2.61 5.23 5.23 - 5 15 25 10 1.83 3.65 3.65 - 6 10 14 4 4.57 9.20 9.20 13.95 FMR1500 6 12 18 6 3.04 6.11 6.11 9.20 6 16 26 10 1.83 3.65 3.65 5.49 6 20 34 14 1.30 2.61 2.61 3.92 FMR2000 7 15 23 8 2.28 4.57 4.57 6.88 8.04 - 7 20 33 13 1.40 2.81 2.81 4.22 4.92 - 8 16 24 8 2.28 4.57 4.57 6.88 8.04 9.20 FMR2500 8 20 32 12 1.52 3.04 3.04 4.57 5.34 6.11 8 25 42 17 1.07 2.15 2.15 3.22 3.76 4.30 10 25 40 15 1.22 2.43 2.43 3.65 4.27 4.88 6.11 - 10 32 54 22 0.83 1.66 1.66 2.49 2.91 3.32 4.15 - 10 40 70 30 0.61 1.22 1.22 1.83 2.13 2.43 3.04 - FMR3000 10 50 90 40 0.46 0.91 0.91 1.37 1 .60 1 .83 2.28 - 10 63 116 53 0.34 0.69 0.69 1.03 1 .21 1 .38 1 .72 - 10 80 150 70 0.26 0.52 0.52 0.78 0.91 1 .04 1 .30 - 10 100 190 90 0.20 0.41 0.41 0.61 0.71 0.81 1 .01 - 12 32 52 20 0.91 1.83 1.83 2.74 3.20 3.65 4.57 5.49 12 40 68 28 0.65 1.30 1.30 1.96 2.28 2.61 3.26 3.92 12 50 88 38 0.48 0.96 0.96 1.44 1 .68 1 .92 2.40 2.88 FMR4000 12 63 114 51 0.36 0.72 0.72 1.07 1 .25 1 .43 1 .79 2.15 12 80 148 68 0.27 0.54 0.54 0.81 0.94 1 .07 1 .34 1 .61 12 100 188 88 0.21 0.41 0.41 0.62 0.73 0.83 1 .04 1 .24 12 125 238 113 0.16 0.32 0.32 0.48 0.57 0.65 0.81 0.97 16 40 64 24 0.76 1.52 1.52 2.28 2.66 3.04 3.81 4.57 6.11 - 16 50 84 34 0.54 1.07 1.07 1.61 1 .88 2.15 2.69 3.22 4.30 - FMR5000 16 63 110 47 0.39 0.78 0.78 1.16 1 .36 1 .55 1 .94 2.33 3.11 - 16 80 144 64 0.29 0.57 0.57 0.86 1 .00 1.14 1 .43 1 .71 2.28 - 16 100 184 84 0.22 0.43 0.43 0.65 0.76 0.87 1 .09 1 .30 1.74 - 16 125 234 109 0.17 0.33 0.33 0.50 0.59 0.67 0.84 1 .00 1.34 - 20 50 80 30 0.61 1.22 1.22 1.83 2.13 2.43 3.04 3.65 4.88 6.11 20 63 106 43 0.42 0.85 0.85 1.27 1 .49 1 .70 2.12 2.55 3.40 4.25 FMR6000 20 80 140 60 0.30 0.61 0.61 0.91 1 .06 1 .22 1 .52 1 .83 2.43 3.04 20 100 180 80 0.23 0.46 0.46 0.68 0.80 0.91 1.14 1 .37 1.83 2.28 20 125 230 105 0.17 0.35 0.35 0.52 0.61 0.70 0.87 1 .04 1.39 1.74 20 160 300 140 0.13 0.26 0.26 0.39 0.46 0.52 0.65 0.78 1.04 1.30 215
