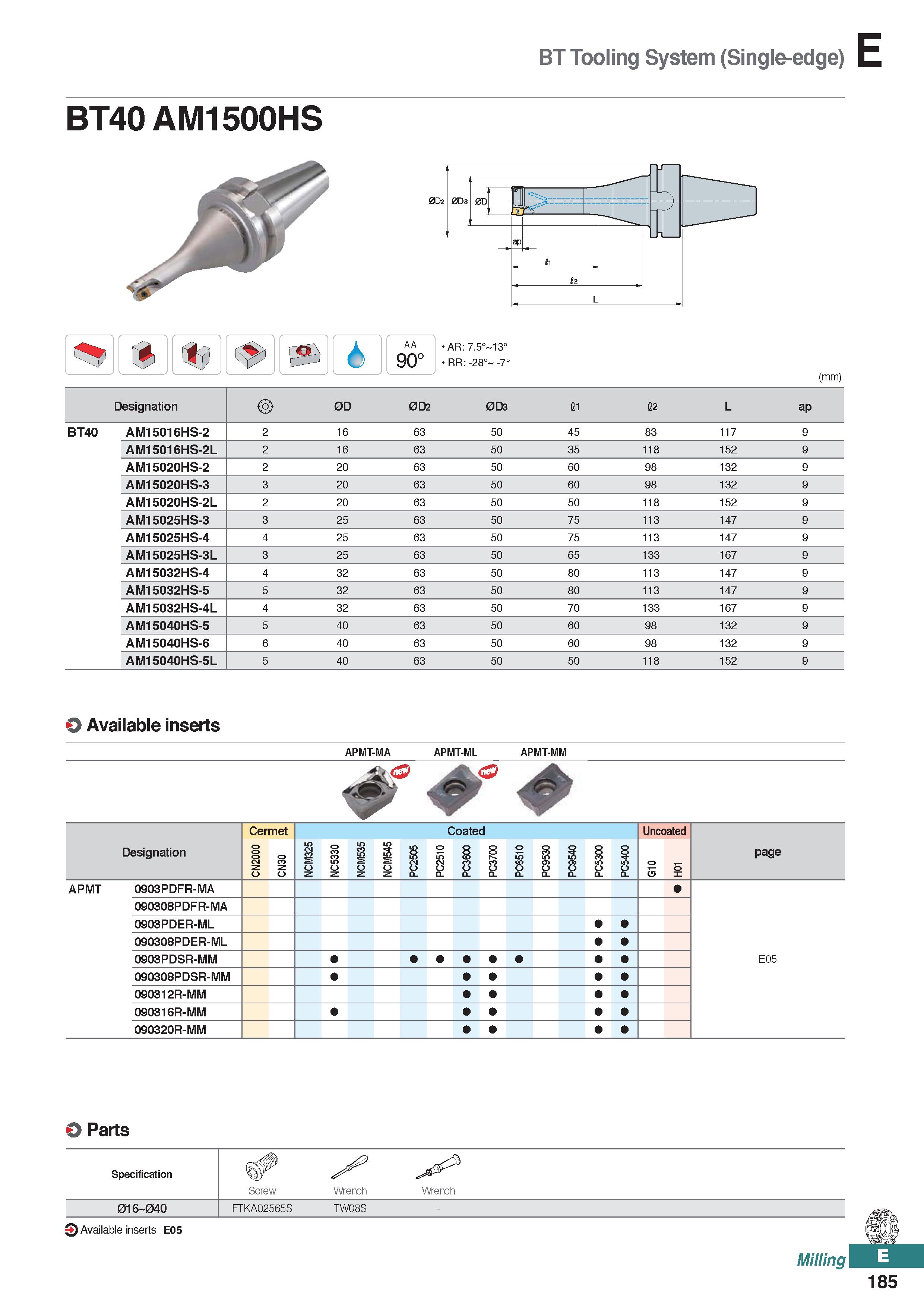

BT Tooling System (Single-edge) BT40 AM1500HS AR: 7.5° 13° RR:-28° -7° (mm) Designation 0D 0D2 0D3 11 12 L ap BT40 AM15016HS-2 2 16 63 50 45 83 117 9 AM15016HS-2L 2 16 63 50 35 118 152 9 AM15020HS-2 2 20 63 50 60 98 132 9 AM15020HS-3 3 20 63 50 60 98 132 9 AM15020HS-2L 2 20 63 50 50 118 152 9 AM15025HS-3 3 25 63 50 75 113 147 9 AM15025HS-4 4 25 63 50 75 113 147 9 AM15025HS-3L 3 25 63 50 65 133 167 9 AM15032HS-4 4 32 63 50 80 113 147 9 AM15032HS-5 5 32 63 50 80 113 147 9 AM15032HS-4L 4 32 63 50 70 133 167 9 AM15040HS-5 5 40 63 50 60 98 132 9 AM15040HS-6 6 40 63 50 60 98 132 9 AM15040HS-5L 5 40 63 50 50 118 152 9 AA 90° O Available inserts APMT-MA APMT-ML APMT-MM 4 Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 O 5 01 X APMT 0903PDFR-MA 090308PDFR-MA 0903PDER-ML 090308PDER-ML 0903PDSR-MM E05 090308PDSR-MM 090312R-MM 090316R-MM 090320R-MM 0 Parts Specification Screw Wrench Wrench 016 04O FTKA02565S TW08S - 9 Available inserts E05 Milling 185
