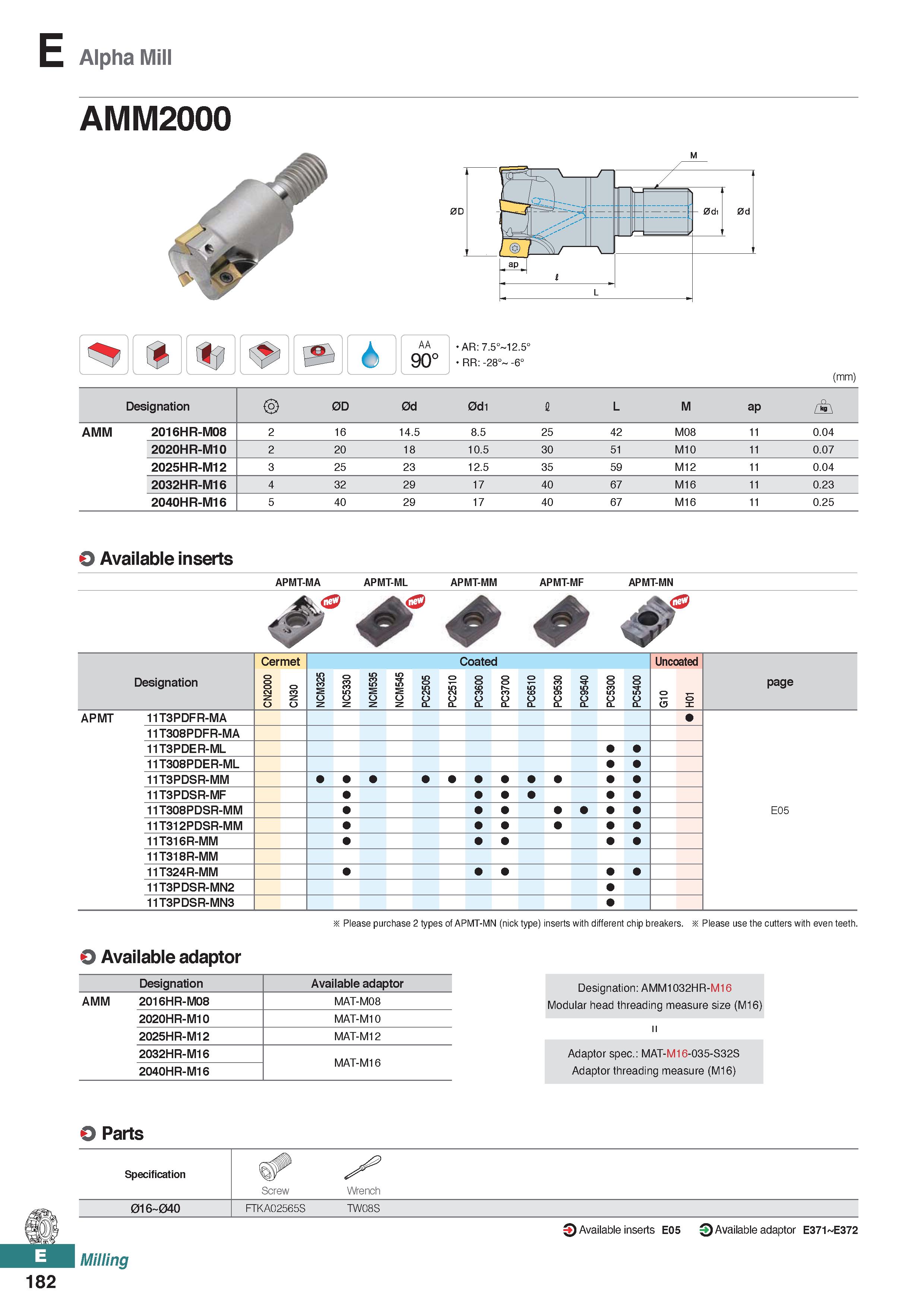

E Alpha Mill AA 90° AR:7.5° 12.5° RR: -28° -6° (mm) Designation 0D 0d 0d1 1 L M ap A AMM 2016HR-M08 2 16 14.5 8.5 25 42 M08 11 0.04 2020HR-M10 2 20 18 10.5 30 51 M10 11 0.07 2025HR-M12 3 25 23 12.5 35 59 M12 11 0.04 2032HR-M16 4 32 29 17 40 67 M16 11 0.23 2040HR-M16 5 40 29 17 40 67 M16 11 0.25 O Available inserts APMT-MA APMT-ML APMT-MM APMT-MF APMT-MN Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 o G1 01 I APMT 11T3PDFR-MA 11T308PDFR-MA 11T3PDER-ML 11T308PDER-ML 11T3PDSR-MM 11T3PDSR-MF 11T308PDSR-MM E05 11T312PDSR-MM 11T316R-MM 11T318R-MM 11T324R-MM 11T3PDSR-MN2 11T3PDSR-MN3 Please purchase 2 types of APMT-MN (nicktype) inserts with different chip breakers. Please use the cutters with even teeth. O Available adaptor Designation Available adaptor AMM 2016HR-M08 MAT-M08 2020HR-M10 MAT-M10 2025HR-M12 MAT-M12 2032HR-M16 MAT-M16 2040HR-M16 Designation: AMM1032HR-M16 Modular head threading measure size (M16) ii Adaptor spec.: MAT-M16-035-S32S Adaptor threading measure (M16) O Parts Specification Screw Wrench 016 04O FIKA02565S TW08S Milling 0 Availableinserts E05 0Availableadaptor E371 E372 182
