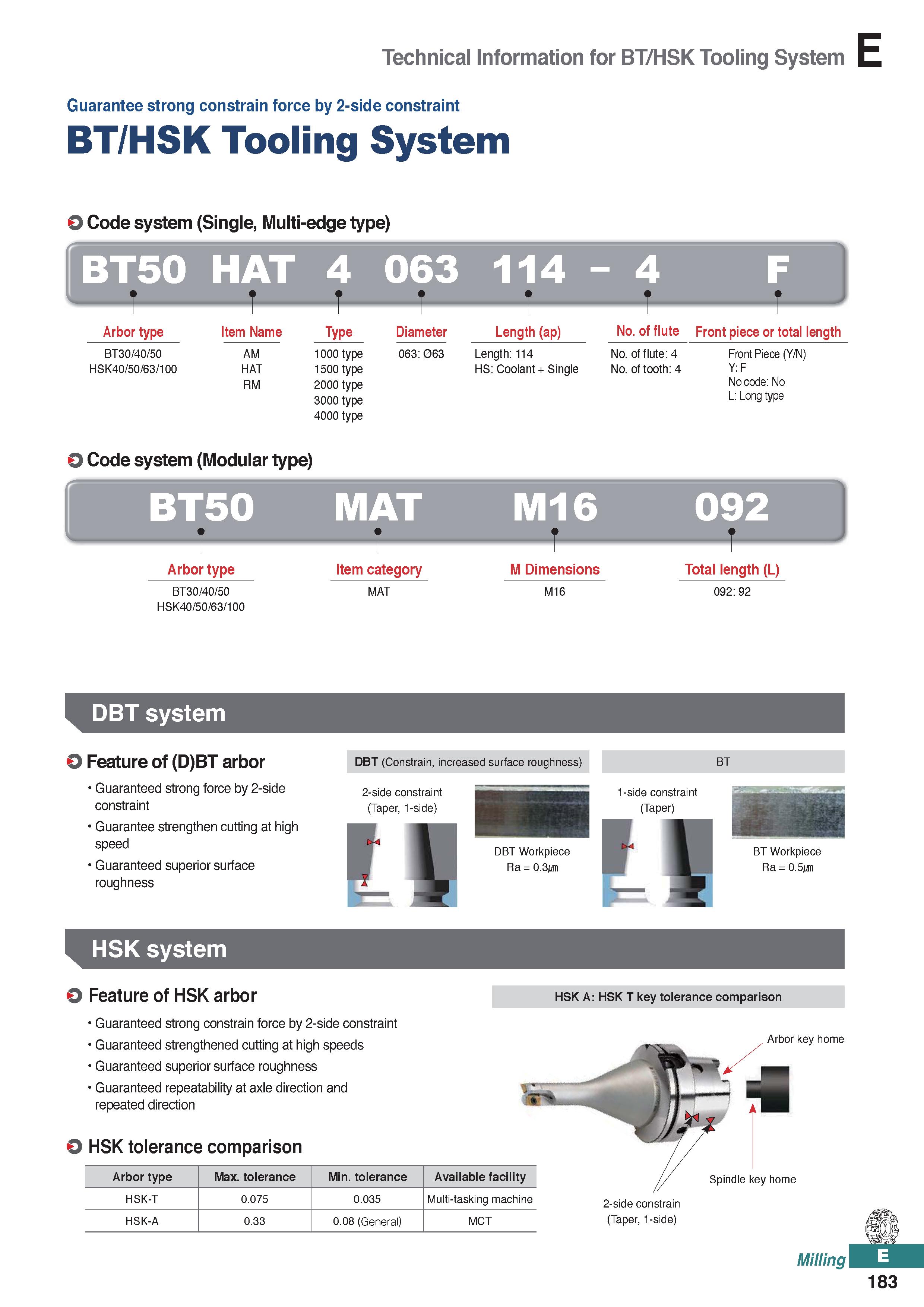

Technical Information for BT/HSK Tooling System E Guarantee strong constrain force by 2-side constraint BT/HSK Tooling System O Code system (Single, Multi-edge type) BT50 HAT 4 063 114 - f f Arbor type Item Name Type BT30/40/50 AM 1000 type HSK40/50/63/100 HAT 1500 type RM 2000 type 3000 type 4000 type f Diameter 063: 063 Length (ap) Length: 114 HS: Coolant + Single No. of flute Front piece or total length No. of flute: 4 No. of tooth: 4 Front Piece (Y/N) Y:F No code: No L: Long type O Code system (Modular type) BT50 MAT M16 092 T T T Arbor type Item category M Dimensions Total length (L) BT30/40/50 HSK40/50/63/100 MAT M16 092: 92 .DBT system O Feature of (D)BT arbor DBT (Constrain, increased surface roughness) BT Guaranteed strong force by 2-side constraint Guarantee strengthen cutting at high speed Guaranteed superior surface roughness 2-side constraint (Taper, 1-side) t DBT Workpiece Ra = 0.3jjm 1-side constraint (Taper) m BT Workpiece Ra = 0.5dn HSK system Feature of HSK arbor Guaranteed strong constrain force by 2-side constraint Guaranteed strengthened cutting at high speeds Guaranteed superior surface roughness Guaranteed repeatability at axle direction and repeated direction O HSK tolerance comparison HSK A: HSK T key tolerance comparison Arbor type Max. tolerance Min. tolerance Available facility HSK-T 0.075 0.035 Multi-tasking machine HSK-A 0.33 0.08 (General) MCT Arbor key home Spindle key home 2-side constrain (Taper, 1-side) Milling 183
