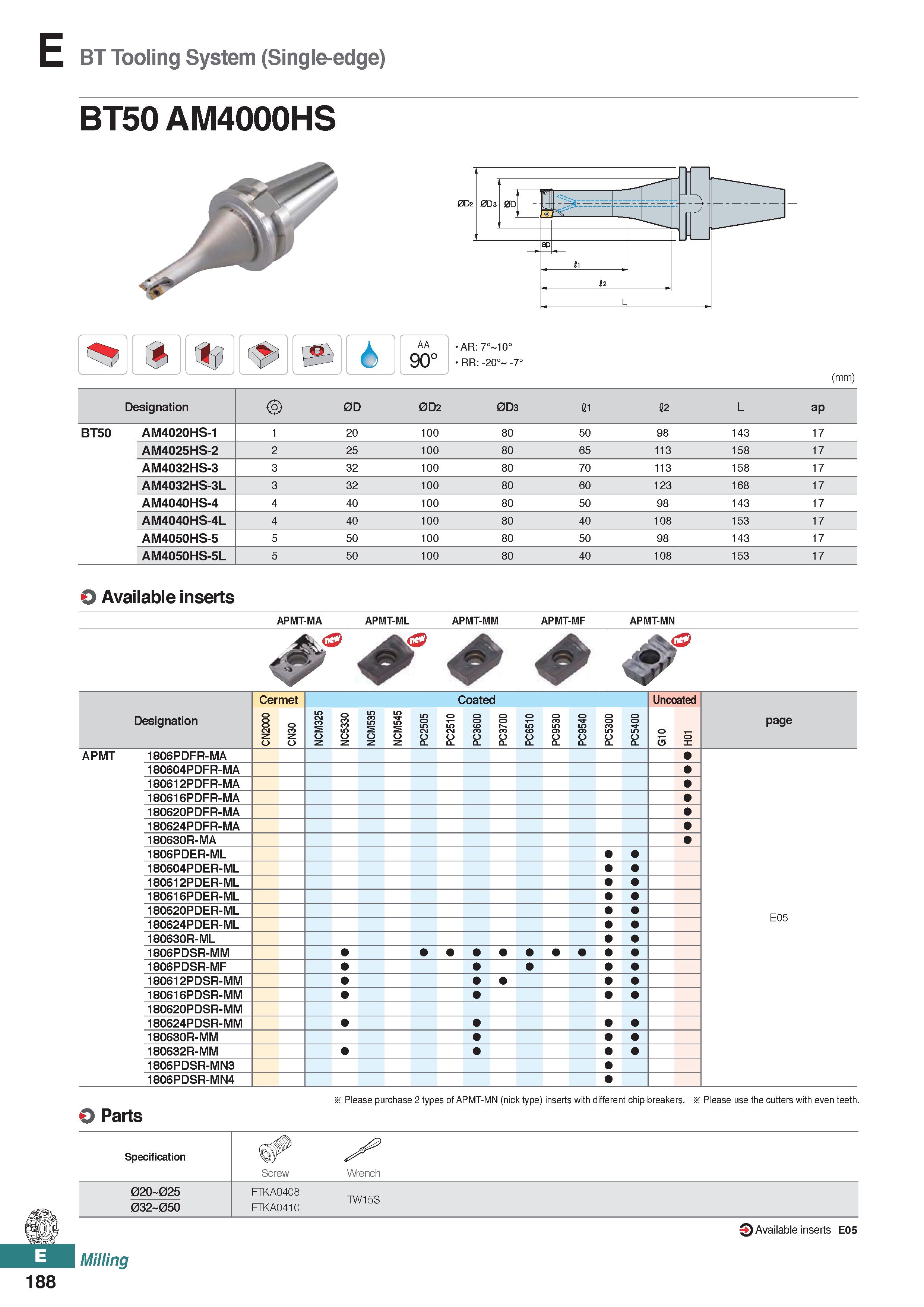

BT Tooling System (Single-edge) AA 90° AR:7° 10° RR: -20° -7° (mm) Designation 0D 0D2 0D3 11 12 L ap BT50 AM4020HS-1 1 20 100 80 50 98 143 17 AM4025HS-2 2 25 100 80 65 113 158 17 AM4032HS-3 3 32 100 80 70 113 158 17 AM4032HS-3L 3 32 100 80 60 123 168 17 AM4040HS-4 4 40 100 80 50 98 143 17 AM4040HS-4L 4 40 100 80 40 108 153 17 AM4050HS-5 5 50 100 80 50 98 143 17 AM4050HS-5L 5 50 100 80 40 108 153 17 O Available inserts APMT-MA APMT-ML APMT-MM APMT-MF APMT-MN Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 NCM535 NCM545 5 0 5 2 C P PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 o 5 01 APMT 1806PDFR-MA 180604PDFR-MA 180612PDFR-MA 180616PDFR-MA 180620PDFR-MA 180624PDFR-MA 180630R-MA 1806PDER-ML 180604PDER-ML 180612PDER-ML 180616PDER-ML 180620PDER-ML 180624PDER-ML E05 180630R-ML 1806PDSR-MM 1806PDSR-MF 180612PDSR-MM 180616PDSR-MM 180620PDSR-MM 180624PDSR-MM 180630R-MM 180632R-MM 1806PDSR-MN3 1806PDSR-MN4 O Parts Please purchase 2 types of APMT-MN (nick type) inserts with different chip breakers. Please use the cutters with even teeth. Specification S Screw Wrench 02O 025 FTKA0408 TW15S 032 05O FTKA0410 Milling 0 Availableinserts E05 188
