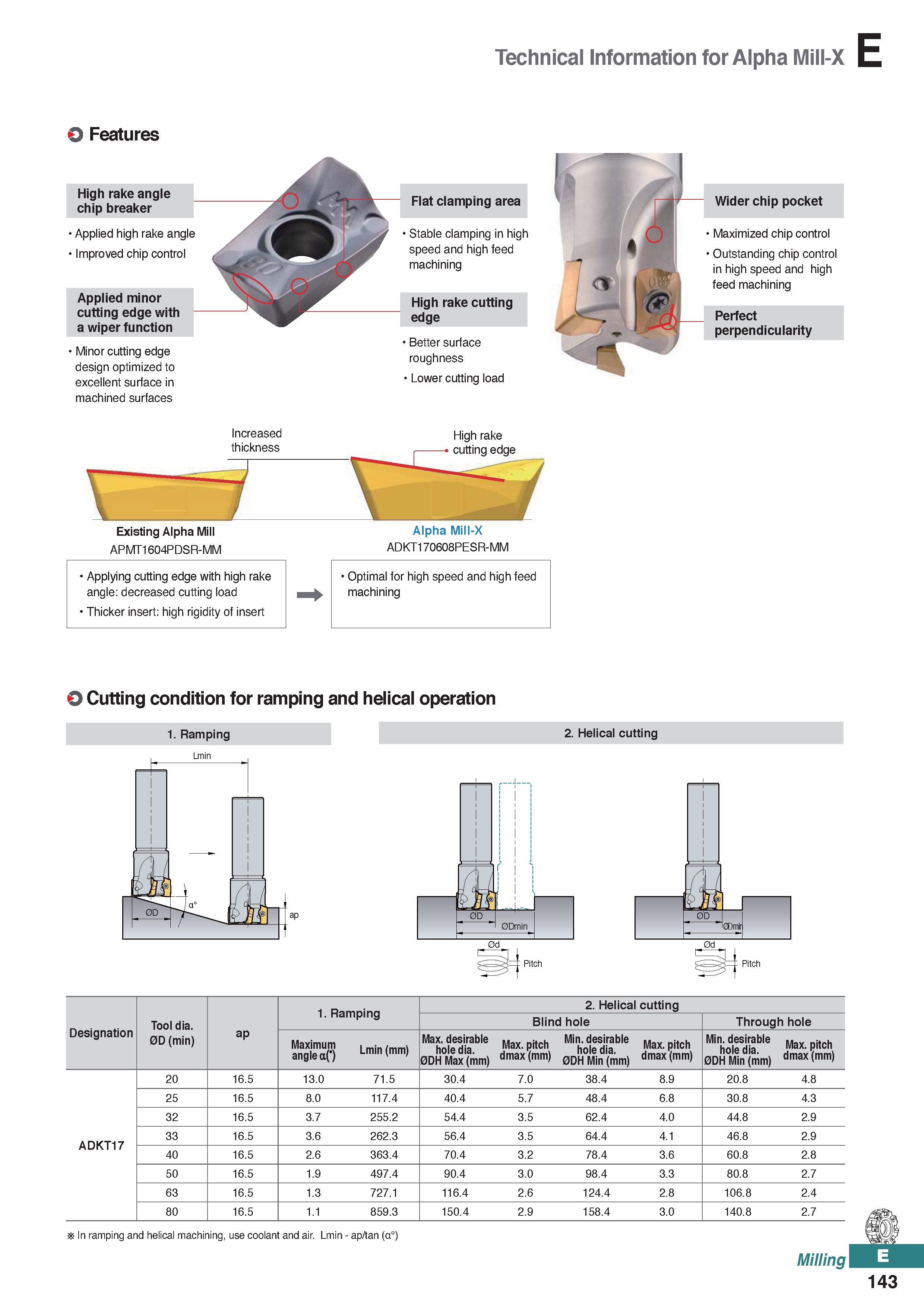

Technical Information for Alpha Mill-X O Features High rake angle chip breaker Applied high rake angle Improved chip control Applied minor cutting edge with a wiper function Minor cutting edge design optimized to excellent surface in machined surfaces Flat clamping area Stable clamping in high speed and high feed machining High rake cutting edge Better surface roughness Lower cutting load Wider chip pocket Maximized chip control Outstanding chip control in high speed and high feed machining Perfect perpendicularity Increased APMT1604PDSR-MM High rake ADKT170608PESR-MM Applying cutting edge with high rake Optimal for high speed and high feed angle: decreased cutting load machining Thicker insert: high rigidity of insert O Cutting condition for ramping and helical operation 1. Ramping 2. Helical cutting ap 1. Ramping 2. Helical cutting Designation Tool dia. Blind hole Through hole 0D (min) ap Maximum angle a( ) Lmin (mm) Max. desirable hole dia. 0DH Max (mm) Max. pitch dmax (mm) Min. desirable hole dia. 0DH Min (mm) Max. pitch dmax (mm) Min. desirable hole dia. 0DH Min (mm) Max. pitch dmax (mm) 20 16.5 13.0 71.5 30.4 7.0 38.4 8.9 20.8 4.8 25 16.5 8.0 117.4 40.4 5.7 48.4 6.8 30.8 4.3 32 16.5 3.7 255.2 54.4 3.5 62.4 4.0 44.8 2.9 ADKT17 33 16.5 3.6 262.3 56.4 3.5 64.4 4.1 46.8 2.9 40 16.5 2.6 363.4 70.4 3.2 78.4 3.6 60.8 2.8 50 16.5 1.9 497.4 90.4 3.0 98.4 3.3 80.8 2.7 63 16.5 1.3 727.1 116.4 2.6 124.4 2.8 106.8 2.4 80 16.5 1.1 859.3 150.4 2.9 158.4 3.0 140.8 2.7 In ramping and helical machining, use coolant and air. Lmin - ap/tan (a°) Milling 143
