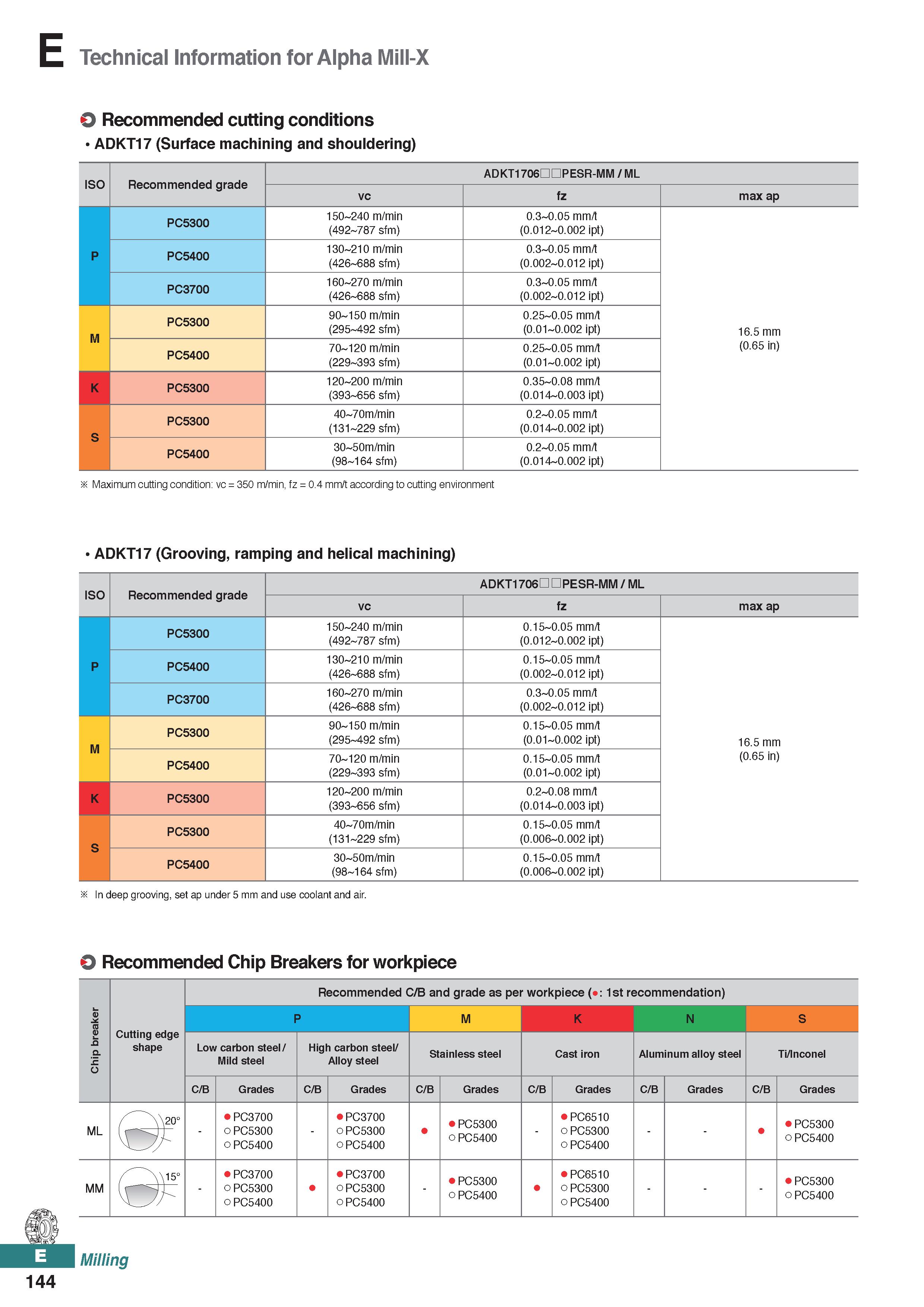

Technical Information for Alpha Mill-X 0 Recommended cutting conditions ADKT17 (Surface machining and shouldering) ISO Recommended grade ADKT1706 PESR-MM / ML vc fz max ap PC5300 150 240 m/min (492-787 sfm) 0.3 0.05 mm/t (0.012 0.002 ipt) P PC5400 130 210 m/min (426-688 sfm) 0.3 0.05 mm/t (0.002 0.012 ipt) PC3700 160 270 m/min (426-688 sfm) 0.3 0.05 mm/t (0.002 0.012 ipt) M PC5300 90 150 m/min (295-492 sfm) 0.25 0.05 mm/t (0.01 0.002 ipt) 16.5 mm PC5400 70 120 m/min (229-393 sfm) 0.25 0.05 mm/t (0.01 0.002 ipt) (0.65 in) K PC5300 120 200 m/min (393-656 sfm) 0.35 0.08 mm/t (0.014 0.003 ipt) S PC5300 40 70m/min (131-229 sfm) 0.2 0.05 mm/t (0.014 0.002 ipt) PC5400 30 50m/min (98-164 sfm) 0.2 0.05 mm/t (0.014 0.002 ipt) Maximum cutting condition: vc = 350 m/min, fz = 0.4 mm/t according to cutting environment ADKT17 (Grooving, ramping and helical machining) ISO Recommended grade ADKT1706DD PESR-MM / ML vc fz max ap PC5300 150 240 m/min (492-787 sfm) 0.15 0.05 mm/t (0.012 0.002 ipt) P PC5400 130 210 m/min (426-688 sfm) 0.15 0.05 mm/t (0.002 0.012 ipt) PC3700 160 270 m/min (426-688 sfm) 0.3 0.05 mm/t (0.002 0.012 ipt) M PC5300 90 150 m/min (295-492 sfm) 0.15 0.05 mm/t (0.01 0.002 ipt) 16.5 mm PC5400 70 120 m/min (229-393 sfm) 0.15 0.05 mm/t (0.01 0.002 ipt) (0.65 in) K PC5300 120 200 m/min (393-656 sfm) 0.2 0.08 mm/t (0.014 0.003 ipt) S PC5300 40 70m/min (131-229 sfm) 0.15 0.05 mm/t (0.006 0.002 ipt) PC5400 30 50m/min (98-164 sfm) 0.15 0.05 mm/t (0.006 0.002 ipt) In deep grooving, set ap under 5 mm and use coolant and air. 0 Recommended Chip Breakers for workpiece Chip breaker Cutting edge shape Recommended C/B and grade as per workpiece ( : 1st recommendation) P M K N S Low carbon steel/ Mild steel High carbon steel/ Alloy steel Stainless steel Cast iron Aluminum alloy steel Ti/Inconel C/B Grades C/B Grades C/B Grades C/B Grades C/B Grades C/B Grades ML 20° - PC3700 o PC5300 o PC5400 - PC3700 o PC5300 o PC5400 PC5300 o PC5400 - PC6510 o PC5300 o PC5400 PC5300 o PC5400 (vjl MM - PC3700 o PC5300 o PC5400 PC3700 o PC5300 o PC5400 - PC5300 o PC5400 PC6510 o PC5300 o PC5400 - PC5300 o PC5400 fg Milling 144
