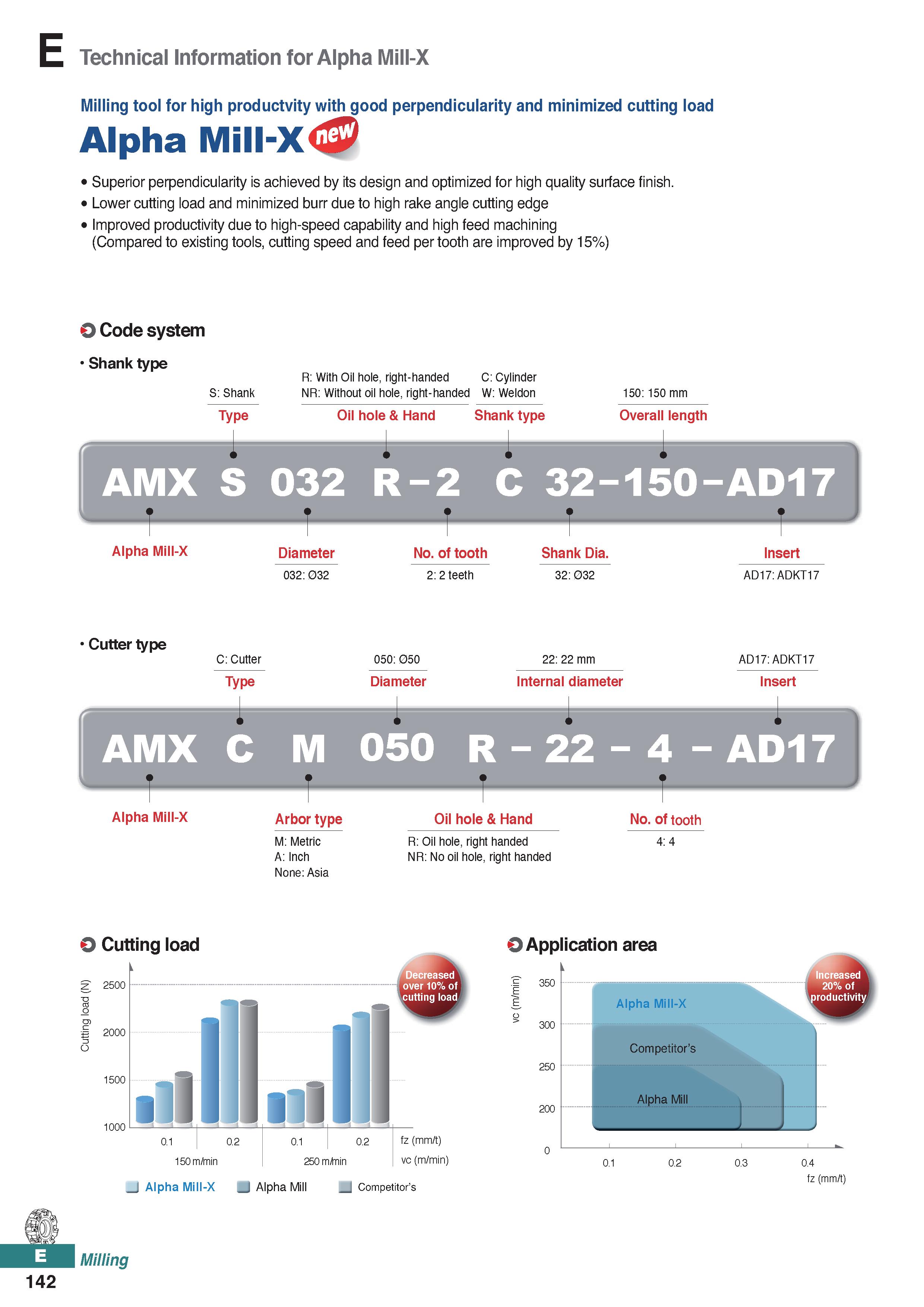

Technical Information for Alpha Mill-X Milling tool for high productvity with good perpendicularity and minimized cutting load Alpha Mill-X Superior perpendicularity is achieved by its design and optimized for high quality surface finish. Lower cutting load and minimized burr due to high rake angle cutting edge Improved productivity due to high-speed capability and high feed machining (Compared to existing tools, cutting speed and feed pertooth are improved by 15%) O Code system Shank type S: Shank Type R: With Oil hole, right-handed C: Cylinder NR: Without oil hole, right-handed W: Weldon Oil hole & Hand Shank type 150: 150 mm Overall length Tr AMX S 032 R-2 C 32-150- 1 AD17 Alpha Mill-X Diameter No. of tooth Shank Dia. Insert 032: 032 2: 2 teeth 32: 032 AD17: ADKT17 Cutter type C: Cutter 050: 050 22: 22 mm AD17: ADKT17 Type Diameter Internal diameter Insert AMX L C M 050 R- 22 - 4 - AD17 J Alpha Mill-X Arbor type Oil hole & Hand No. of tooth M: Metric R: Oil hole, right handed 4: 4 A: Inch None: Asia NR: No oil hole, right handed O Cutting load 2500 tti2000 ut C 1500 1000 0.1 0.2 150 m/min Alpha Mill-X ml Alpha I fz (mm/t) vc (m/min) Competitor’s Milling 142 O Application area in 350 E E 300 250 200 Alpha Mill-X Competitor’s Alpha Mill 0.1 0.2 0.3 0.4 fz (mm/t) 0
