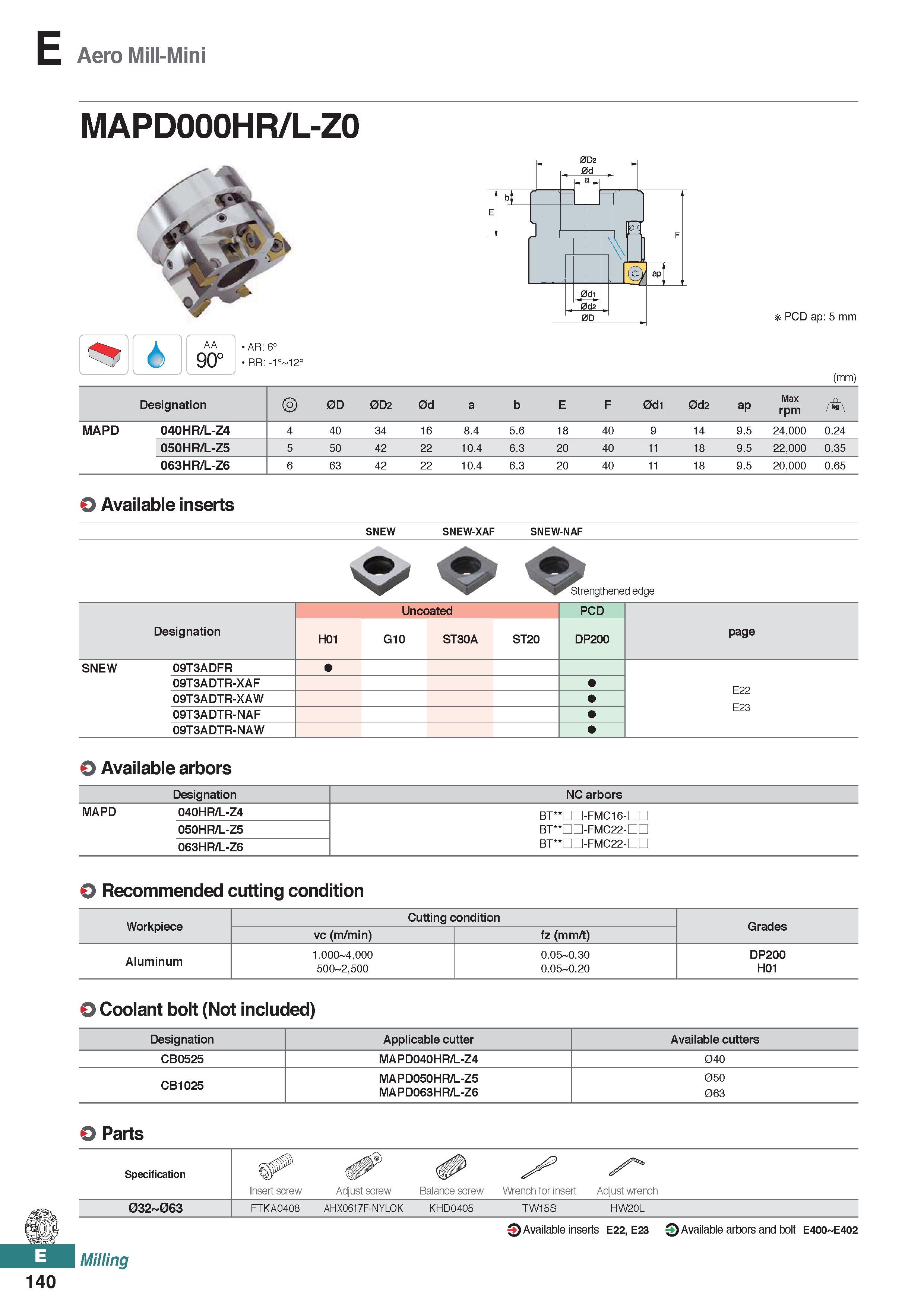

Aero Mill-Mini MAPD000HR/L-Z0 AR: 6° RR: -1° 12c PCD ap: 5 mm (mm) Designation 2> 0D 0D2 0d a b E F 0d1 0d2 ap Max rpm A \ MAPD 040HR/L-Z4 4 40 34 16 8.4 5.6 18 40 9 14 9.5 24,000 0.24 050HR/L-Z5 5 50 42 22 10.4 6.3 20 40 11 18 9.5 22,000 0.35 063HR/L-Z6 6 63 42 22 10.4 6.3 20 40 11 18 9.5 20,000 0.65 O Available inserts SNEW SNEW-XAF SNEW-NAF ❖ Strengthened edge Uncoated PCD Designation H01 G10 ST30A ST20 DP200 page SNEW 09T3ADFR 09T3ADTR-XAF E22 E23 09T3ADTR-XAW 09T3ADTR-NAF 09T3ADTR-NAW O Available arbors Designation NC arbors MAPD 040HR/L-Z4 BT’ ’ -FMC16-HD 050HR/L-Z5 BT’ ’ -FMC22-DC 063HR/L-Z6 BT’ ’ -FMC22-DC O Recommended cutting condition Workpiece Cutting condition Grades vc (m/min) fz (mm/t) Aluminum 1,000 4,000 500 2,500 0.05 0.30 0.05 0.20 DP200 H01 O Coolant bolt (Not included) Designation Applicable cutter Available cutters CB0525 MAPD040HR/L-Z4 040 CB1025 MAPD050HR/L-Z5 MAPD063HR/L-Z6 050 063 O Parts Specification Insert screw & Adjust screw Balance screw Wrench for insert Adjust wrench 032 063 FTKA0408 AHX0617F-NYL0K KHD0405 TW15S HW20L Milling 140 Q Available inserts E22, E23 O Available arbors and bolt E400 E402
