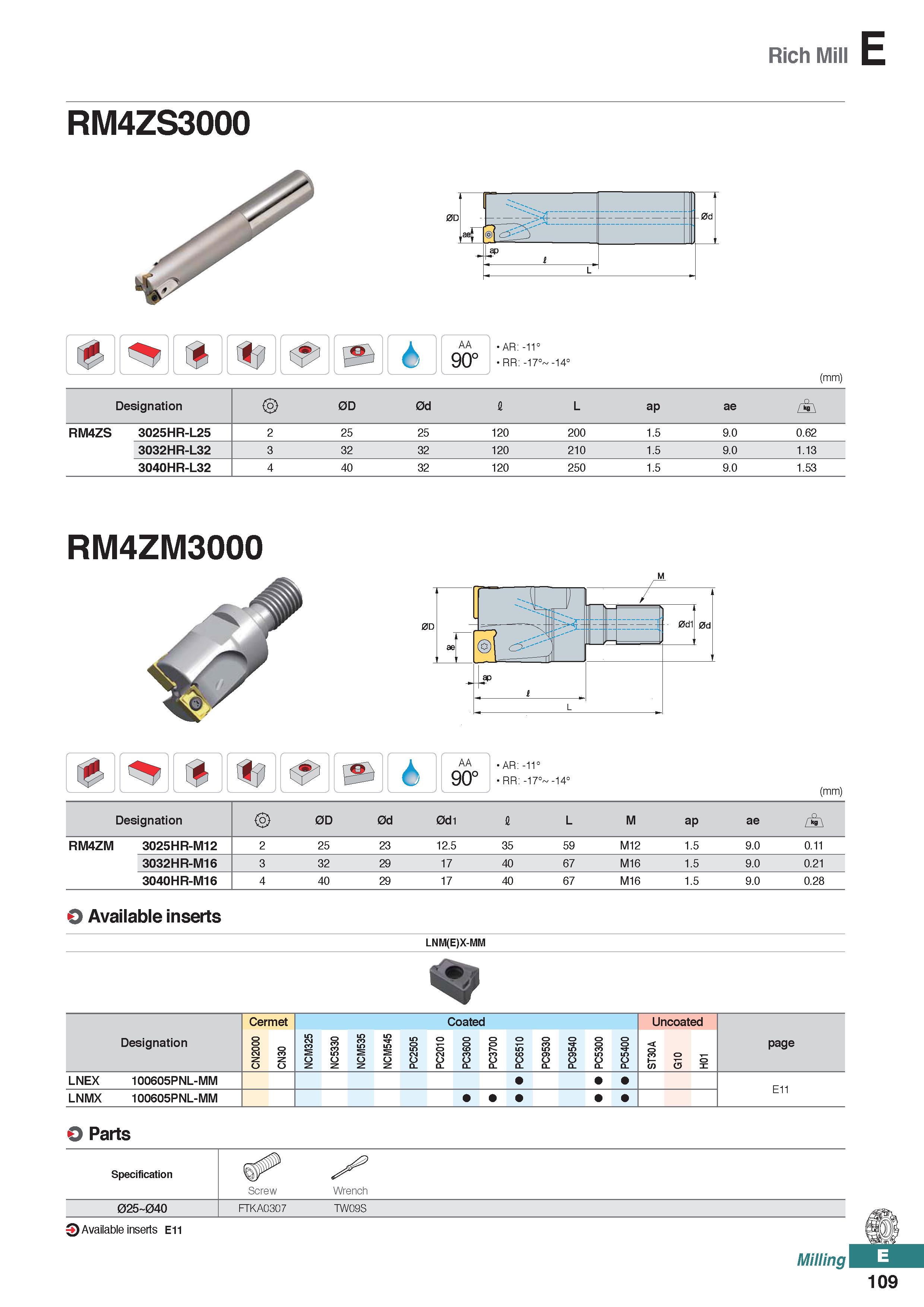

Rich Mill E RM4ZS3000 1 - j. - 0d , L 6 AA 90° AR: -11° RR: -17° -14° (mm) Designation 0D 0d I L ap ae ri\ RM4ZS 3025HR-L25 2 25 25 120 200 1.5 9.0 0.62 3032HR-L32 3 32 32 120 210 1.5 9.0 1.13 3040HR-L32 4 40 32 120 250 1.5 9.0 1.53 RM4ZM3000 6 AA 90° AR: -11° RR: -17° -14° (mm) Designation 0D 0d 0d1 I L M ap ae r+\ RM4ZM 3025HR-M12 2 25 23 12.5 35 59 M12 1.5 9.0 0.11 3032HR-M16 3 32 29 17 40 67 M16 1.5 9.0 0.21 3040HR-M16 4 40 29 17 40 67 M16 1.5 9.0 0.28 O Available inserts LNM(E)X-MM Cermet Coated Uncoated Designation 0 0 CO z z 5 g S S in CC NN 55 34 55 MM CC z z 50 01 in o CC CL Q to 3 C CL 0 0 3 C CL 0000 1 CO o 5553 to m CCCC CL CL CL CL 0 0 4 5 C CL A o 301 T 1 0 tn o m page LNEX 100605PNL-MM E11 LNMX 100605PNL-MM O Parts Specification Screw S’ Wrench 025 04O FTKA0307 TW09S Q Available inserts E11 Milling 109
