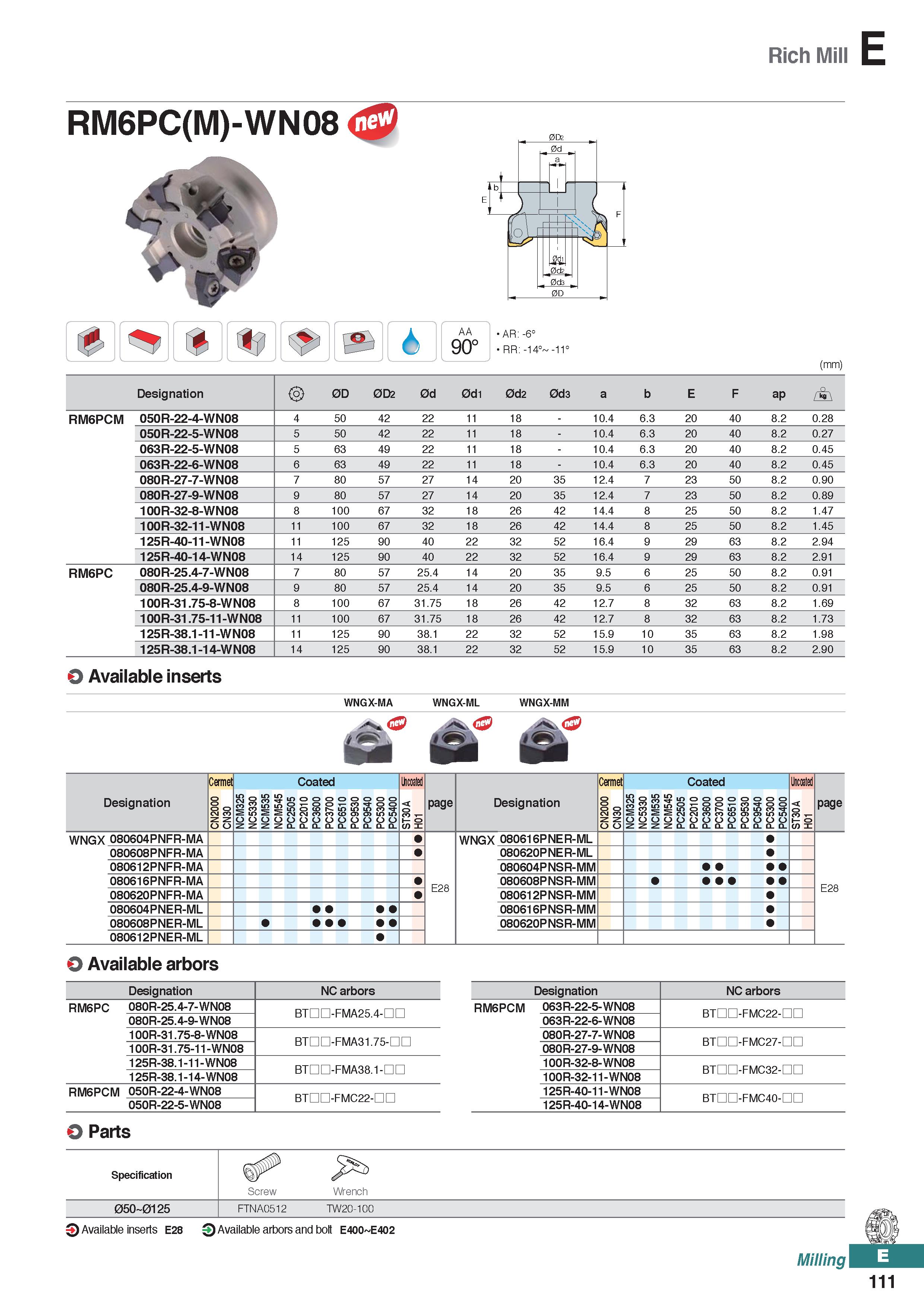

Rich Mill E RM6PC(M)-WN08 AA 90° AR: -6° RR: -14° -11° (mm) Designation 0D 0D2 0d 0d1 0d2 0d3 a b E F ap /i\ RM6PCM 050R-22-4-WN08 4 50 42 22 11 18 - 10.4 6.3 20 40 8.2 0.28 050R-22-5-WN08 5 50 42 22 11 18 - 10.4 6.3 20 40 8.2 0.27 063R-22-5-WN08 5 63 49 22 11 18 - 10.4 6.3 20 40 8.2 0.45 063R-22-6-WN08 6 63 49 22 11 18 - 10.4 6.3 20 40 8.2 0.45 080R-27-7-WN08 7 80 57 27 14 20 35 12.4 7 23 50 8.2 0.90 080R-27-9-WN08 9 80 57 27 14 20 35 12.4 7 23 50 8.2 0.89 100R-32-8-WN08 8 100 67 32 18 26 42 14.4 8 25 50 8.2 1.47 100R-32-11-WN08 11 100 67 32 18 26 42 14.4 8 25 50 8.2 1.45 125R-40-11-WN08 11 125 90 40 22 32 52 16.4 9 29 63 8.2 2.94 125R-40-14-WN08 14 125 90 40 22 32 52 16.4 9 29 63 8.2 2.91 RM6PC 080R-25.4-7-WN08 7 80 57 25.4 14 20 35 9.5 6 25 50 8.2 0.91 080R-25.4-9-WN08 9 80 57 25.4 14 20 35 9.5 6 25 50 8.2 0.91 100R-31.75-8-WN08 8 100 67 31.75 18 26 42 12.7 8 32 63 8.2 1.69 100R-31.75-11-WN08 11 100 67 31.75 18 26 42 12.7 8 32 63 8.2 1.73 125R-38.1-11-WN08 11 125 90 38.1 22 32 52 15.9 10 35 63 8.2 1.98 125R-38.1-14-WN08 14 125 90 38.1 22 32 52 15.9 10 35 63 8.2 2.90 O Available inserts WNGX-MA WNGX-ML WNGX-MM Cermet Coated Uncoated Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NC5330 05 3 5 53M CC z z PC2505 PC2010 PC3600 0 0 3 C CL. PC6510 PC9530 PC9540 PC5300 PC5400 ST30A H01 page Designation CN2000 CN30 5 5 2 IT NC z z 05 034 v) in 53M CC z z PC2505 PC2010 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A H01 page WNGX 080604PNFR-MA WNGX 080616PNER-ML 080608PNFR-MA 080620PNER-ML 080612PNFR-MA 080604PNSR-MM 080616PNFR-MA E28 080608PNSR-MM E28 080620PNFR-MA 080612PNSR-MM 080604PNER-ML 080616PNSR-MM 080608PNER-ML 080620PNSR-MM 080612PNER-ML O Available arbors Designation NC arbors Designation NC arbors RM6PC 080R-25.4-7-WN08 BTDD-FMA25.4-DC RM6PCM 063R-22-5-WN08 BTDD-FMC22-DC 080R-25.4-9-WN08 063R-22-6-WN08 100R-31.75-8-WN08 BTDD-FMA31.75-DC 080R-27-7-WN08 BTDD-FMC27-DC 100R-31.75-11-WN08 080R-27-9-WN08 125R-38.1-11-WN08 BTDD-FMA38.1-DC 100R-32-8-WN08 BTDD-FMC32-DC 125R-38.1-14-WN08 100R-32-11-WN08 RM6PCM 050R-22-4-WN08 BTDD-FMC22-DC 125R-40-11-WN08 BTDD-FMC40-DC 050R-22-5-WN08 125R-40-14-WN08 O Parts Specification Screw Wrench 05O 0125 FTNA0512 TW20-100 Q Available inserts E28 Q Available arbors and bolt E400 E402 Milling 111
