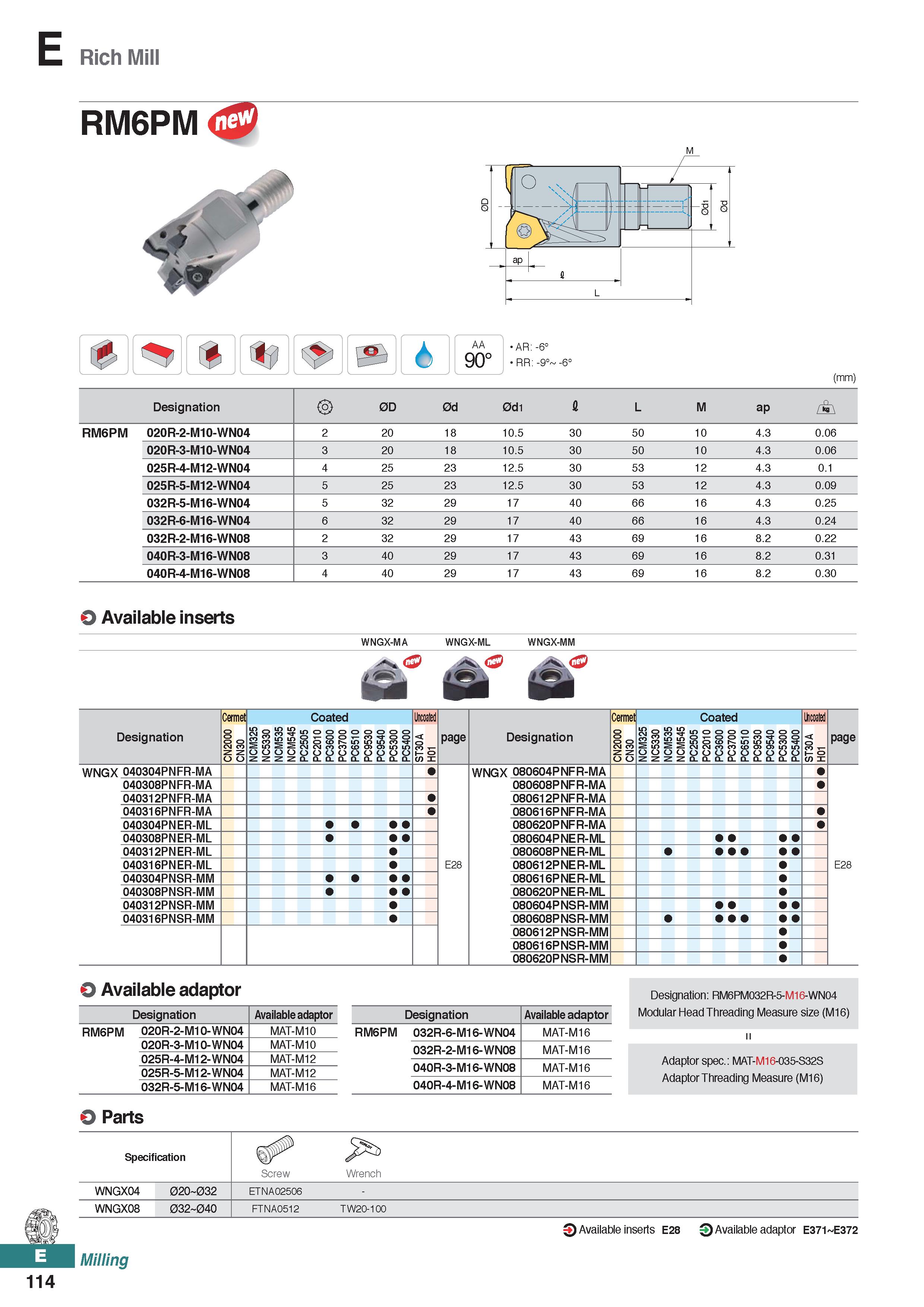

E Rich Mill RM6PM 0 M AA 90° AR: -6° RR: -9° -6° (mm) Designation 0D 0d 0d1 I L M ap f \ RM6PM 020R-2-M10-WN04 2 20 18 10.5 30 50 10 4.3 0.06 020R-3-M10-WN04 3 20 18 10.5 30 50 10 4.3 0.06 025R-4-M12-WN04 4 25 23 12.5 30 53 12 4.3 0.1 025R-5-M12-WN04 5 25 23 12.5 30 53 12 4.3 0.09 032R-5-M16-WN04 5 32 29 17 40 66 16 4.3 0.25 032R-6-M16-WN04 6 32 29 17 40 66 16 4.3 0.24 032R-2-M16-WN08 2 32 29 17 43 69 16 8.2 0.22 040R-3-M16-WN08 3 40 29 17 43 69 16 8.2 0.31 040R-4-M16-WN08 4 40 29 17 43 69 16 8.2 0.30 O Available inserts WNGX-MA WNGX-ML WNGX-MM Designation Cermet Coated Uncoated page Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2010 0 1 0 CO C Q PC3700 PC6510 PC9530 PC9540 PC5300 0 0 4 5 C CL. ST30A H01 CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2010 0 10 06 23 C CL PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A H01 WNGX 040304PNFR-MA WNGX 080604PNFR-MA 040308PNFR-MA 080608PNFR-MA 040312PNFR-MA 080612PNFR-MA 040316PNFR-MA 080616PNFR-MA 040304PNER-ML 080620PNFR-MA 040308PNER-ML 080604PNER-ML 040312PNER-ML 080608PNER-ML 040316PNER-ML E28 080612PNER-ML E28 040304PNSR-MM 080616PNER-ML 040308PNSR-MM 080620PNER-ML 040312PNSR-MM 080604PNSR-MM 040316PNSR-MM 080608PNSR-MM 080612PNSR-MM 080616PNSR-MM 080620PNSR-MM O Available adaptor Designation Available adaptor RM6PM 020R-2-M10-WN04 MAT-M10 020R-3-M10-WN04 MAT-M10 025R-4-M12-WN04 MAT-M12 025R-5-M12-WN04 MAT-M12 032R-5-M16-WN04 MAT-M16 Designation Available adaptor RM6PM 032R-6-M16-WN04 MAT-M16 032R-2-M16-WN08 MAT-M16 040R-3-M16-WN08 MAT-M16 040R-4-M16-WN08 MAT-M16 Designation: RM6PM032R-5-M16-WN04 Modular Head Threading Measure size (M16) Adaptor spec.: MAT-M16-035-S32S Adaptor Threading Measure (M16) O Parts Specification Screw Wrench WNGX04 02O 032 ETNA02506 WNGX08 032 04O FTNA0512 TW20-100 Milling Q Available inserts E28 O Available adaptor E371 E372 114
