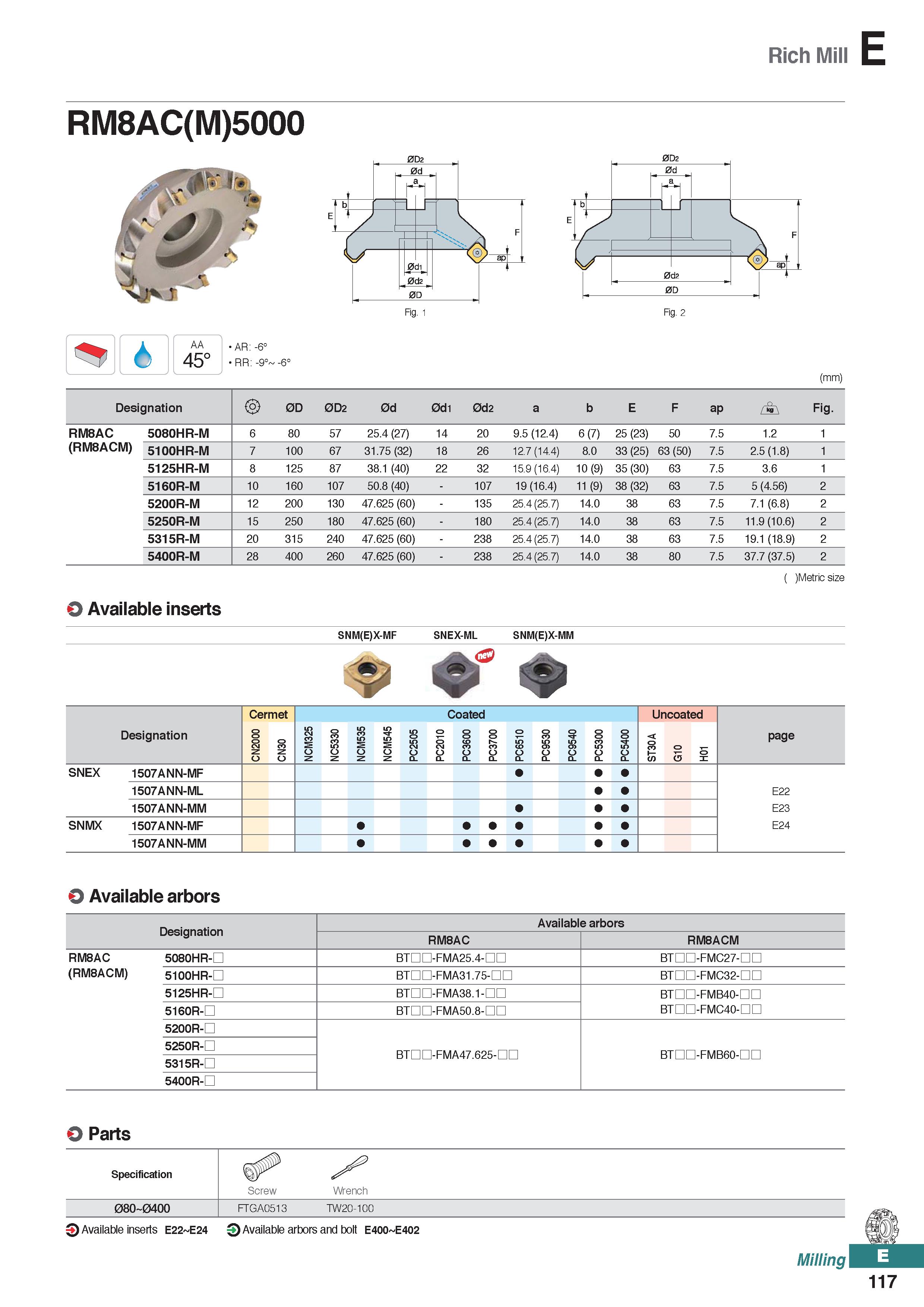

Rich Mill E RM8AC(M)5000 A AA 45° AR: -6° RR: -9° -6° (mm) Designation 0D 0D2 0d 0d1 0d2 a b E F ap & Fig. RM8AC 5080HR-M 6 80 57 25.4 (27) 14 20 9.5 (12.4) 6 (7) 25 (23) 50 7.5 1.2 1 (RM8ACM) 5100HR-M 7 100 67 31.75 (32) 18 26 12.7 (14.4) 8.0 33 (25) 63 (50) 7.5 2.5 (1.8) 1 5125HR-M 8 125 87 38.1 (40) 22 32 15.9 (16.4) 10 (9) 35 (30) 63 7.5 3.6 1 5160R-M 10 160 107 50.8 (40) - 107 19 (16.4) 11 (9) 38 (32) 63 7.5 5 (4.56) 2 5200R-M 12 200 130 47.625 (60) - 135 25.4 (25.7) 14.0 38 63 7.5 7.1 (6.8) 2 5250R-M 15 250 180 47.625 (60) - 180 25.4 (25.7) 14.0 38 63 7.5 11.9 (10.6) 2 5315R-M 20 315 240 47.625 (60) - 238 25.4 (25.7) 14.0 38 63 7.5 19.1 (18.9) 2 5400R-M 28 400 260 47.625 (60) - 238 25.4 (25.7) 14.0 38 80 7.5 37.7 (37.5) 2 ( )Metric size O Available inserts SNM(E)X-MF SNEX-ML SNM(E)X-MM Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 0 3 3 5 C N NCM535 NCM545 PC2505 0 01 2 C P PC3600 PC3700 PC6510 PC9530 PC9540 0 0 3 5 C P PC5400 ST30A G10 H01 SNEX 1507ANN-MF 1507ANN-ML E22 1507ANN-MM E23 SNMX 1507ANN-MF E24 1507ANN-MM O Available arbors Designation Available arbors RM8AC RM8ACM RM8AC 5080HR-D BTDD-FMA25.4-nn BTDD-FMC27-nn (RM8ACM) 5100HR-D BTDD-FMA31.75-nn BTDD-FMC32-nn 5125HR-D BTDD-FMA38.1-nn BTDD-FMB40-nn BTDD-FMC40-nn 5160R-D BTDD-FMA50.8-nn 5200R-D BTDD-FMA47.625-nn BTDD-FMB60-DC 5250R-D 5315R-D 5400R-D O Parts Specification Screw Wrench 08O 04OO FTGA0513 TW20-100 Q Available inserts E22 E24 O Available arbors and bolt E400 E402 Milling 117
