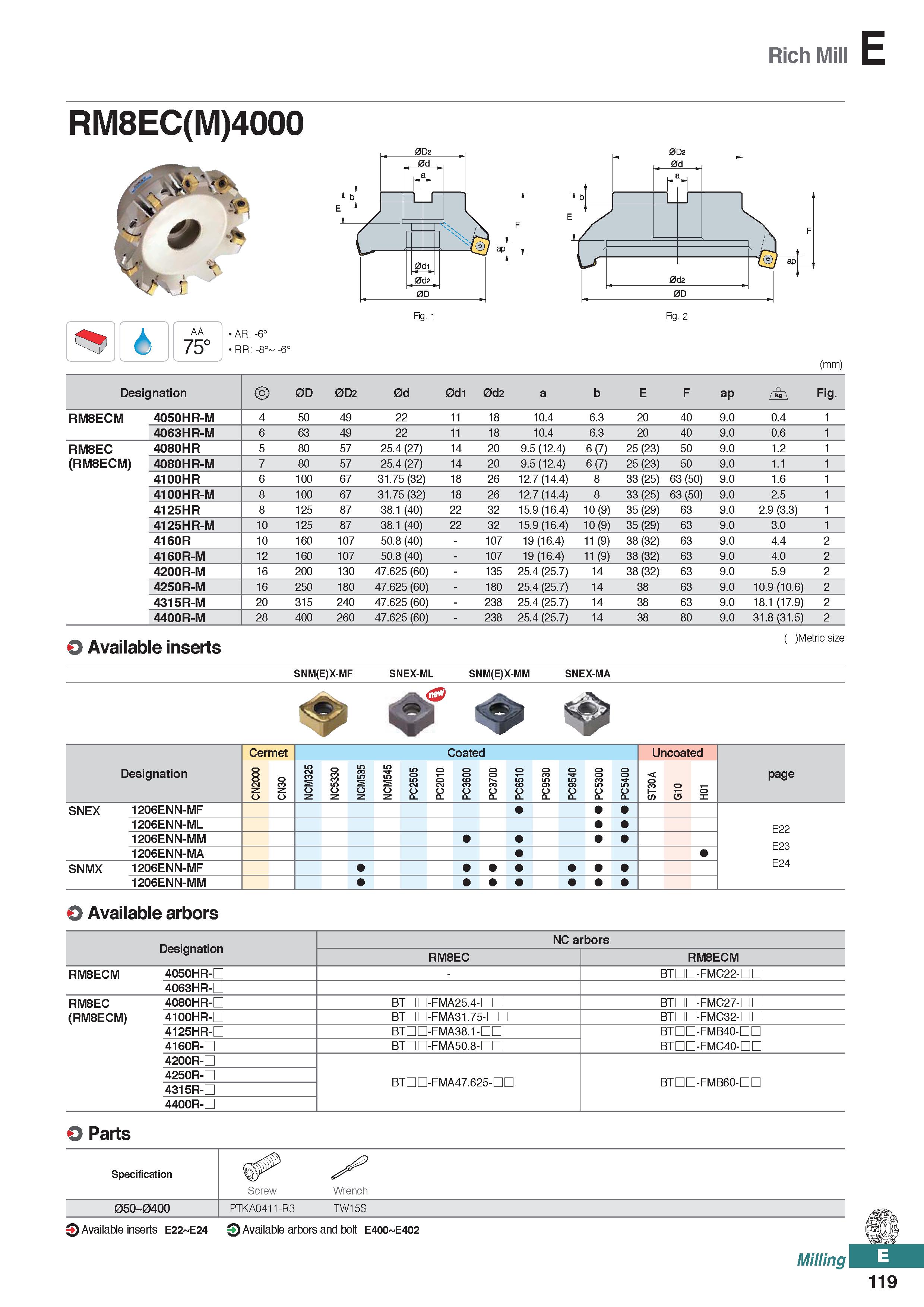

Rich Mill E RM8EC(M)4000 (mm) Designation °> 0D 0D2 0d 0d1 0d2 a b E F ap / S \ Fig. RM8ECM 4050HR-M 4 50 49 22 11 18 10.4 6.3 20 40 9.0 0.4 1 4063HR-M 6 63 49 22 11 18 10.4 6.3 20 40 9.0 0.6 1 RM8EC 4080HR 5 80 57 25.4 (27) 14 20 9.5 (12.4) 6 (7) 25 (23) 50 9.0 1.2 1 (RM8ECM) 4080HR-M 7 80 57 25.4 (27) 14 20 9.5 (12.4) 6 (7) 25 (23) 50 9.0 1.1 1 4100HR 6 100 67 31.75 (32) 18 26 12.7 (14.4) 8 33 (25) 63 (50) 9.0 1.6 1 4100HR-M 8 100 67 31.75 (32) 18 26 12.7 (14.4) 8 33 (25) 63 (50) 9.0 2.5 1 4125HR 8 125 87 38.1 (40) 22 32 15.9 (16.4) 10 (9) 35 (29) 63 9.0 2.9 (3.3) 1 4125HR-M 10 125 87 38.1 (40) 22 32 15.9 (16.4) 10 (9) 35 (29) 63 9.0 3.0 1 4160R 10 160 107 50.8 (40) - 107 19 (16.4) 11 (9) 38 (32) 63 9.0 4.4 2 4160R-M 12 160 107 50.8 (40) - 107 19 (16.4) 11 (9) 38 (32) 63 9.0 4.0 2 4200R-M 16 200 130 47.625 (60) - 135 25.4 (25.7) 14 38 (32) 63 9.0 5.9 2 4250R-M 16 250 180 47.625 (60) - 180 25.4 (25.7) 14 38 63 9.0 10.9 (10.6) 2 4315R-M 20 315 240 47.625 (60) - 238 25.4 (25.7) 14 38 63 9.0 18.1 (17.9) 2 4400R-M 28 400 260 47.625 (60) - 238 25.4 (25.7) 14 38 80 9.0 31.8 (31.5) 2 O Available inserts ( )Metric size SNM(E)X-MF SNEX-ML SNM(E)X-MM SNEX-MA Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2010 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A G10 H01 SNEX 1206ENN-MF 1206ENN-ML E22 1206ENN-MM E23 1206ENN-MA SNMX 1206ENN-MF E24 1206ENN-MM O Available arbors Designation NC arbors RM8EC RM8ECM RM8ECM 4050HR-D - Brnn-FMC22-nn 4063HR-D RM8EC 4080HR-D BTDD-FMA25.4-nn BTnn-FMC27-nn (RM8ECM) 4100HR-D BTDD-FMA31.75-nn BTnn-FMC32-nn 4125HR-D BTDD-FMA38.1-nn BTDD-FMB40-nn BTDD-FMC40-nn 4160R-D BTDD-FMA50.8-nn 4200R-D BTDD-FMA47.625-nn BTDD-FMB60-DC 4250R-D 4315R-D 4400R-D O Parts Specification Screw Wrench 05O 04OO PTKA0411-R3 TW15S Q Available inserts E22 E24 O Available arbors and bolt E400 E402 Milling 119
