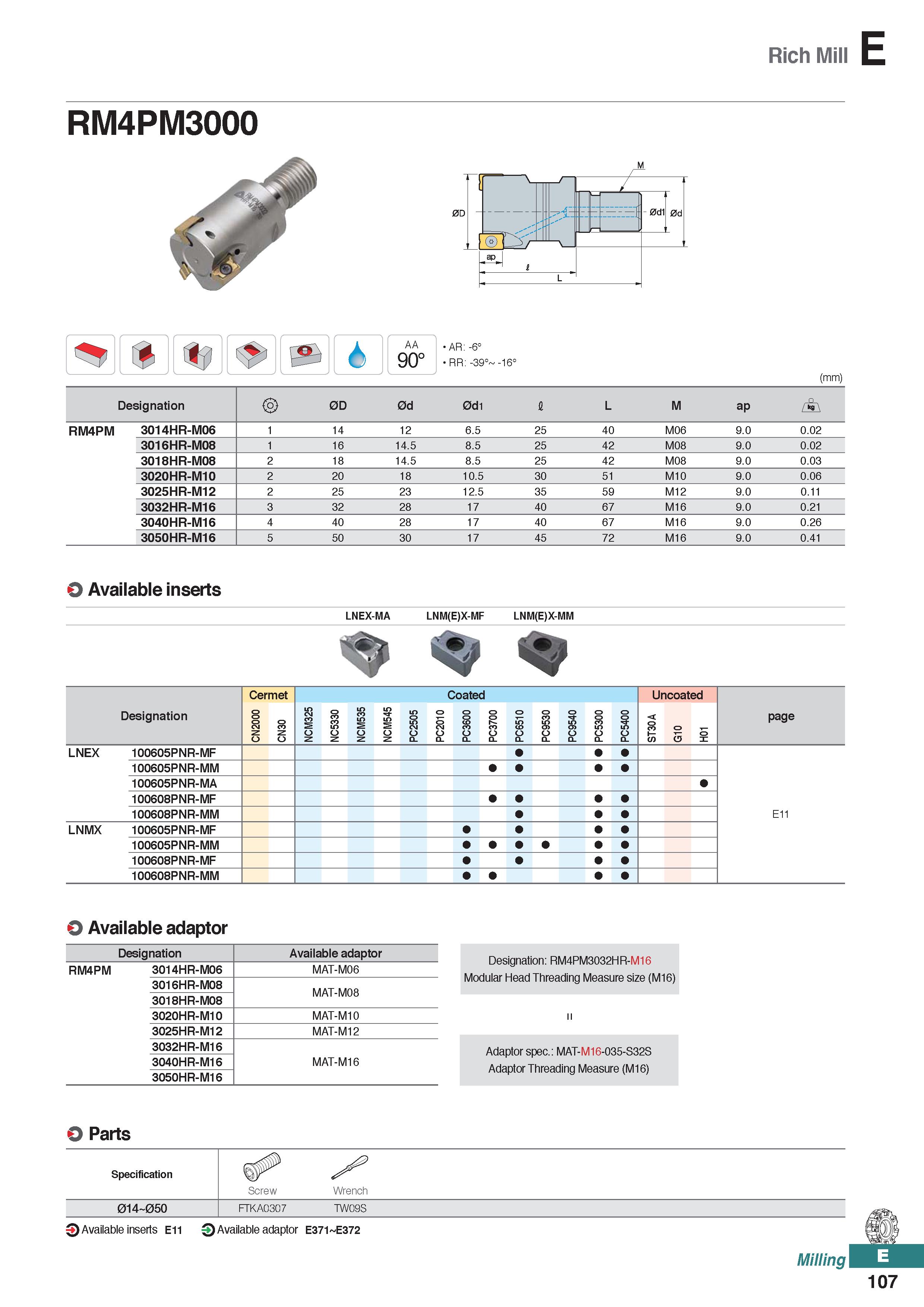

Rich Mill E AA 90° AR: -6° RR: -39° -16° (mm) Designation 0D 0d 0d1 I L M ap / A RM4PM 3014HR-M06 1 14 12 6.5 25 40 M06 9.0 0.02 3016HR-M08 1 16 14.5 8.5 25 42 M08 9.0 0.02 3018HR-M08 2 18 14.5 8.5 25 42 M08 9.0 0.03 3020HR-M10 2 20 18 10.5 30 51 M10 9.0 0.06 3025HR-M12 2 25 23 12.5 35 59 M12 9.0 0.11 3032HR-M16 3 32 28 17 40 67 M16 9.0 0.21 3040HR-M16 4 40 28 17 40 67 M16 9.0 0.26 3050HR-M16 5 50 30 17 45 72 M16 9.0 0.41 O Available inserts LNEX-MA LNM(E)X-MF LNM(E)X-MM y Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 NCM535 5 4 5 M C N PC2505 PC2010 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A G10 H01 LNEX 100605PNR-MF 100605PNR-MM 100605PNR-MA 100608PNR-MF 100608PNR-MM E11 LNMX 100605PNR-MF 100605PNR-MM 100608PNR-MF 100608PNR-MM O Available adaptor Designation Available adaptor RM4PM 3014HR-M06 MAT-M06 3016HR-M08 MAT-M08 3018HR-M08 3020HR-M10 MAT-M10 3025HR-M12 MAT-M12 3032HR-M16 3040HR-M16 MAT-M16 3050HR-M16 Designation: RM4PM3032HR-M16 Modular Head Threading Measure size (M16) ii Adaptor spec.: MAT-M16-035-S32S Adaptor Threading Measure (M16) O Parts Specification S’ Screw Wrench 014 05O FTKA0307 TW09S Q Available inserts E11 Q Available adaptor E371 E372 Milling 107
