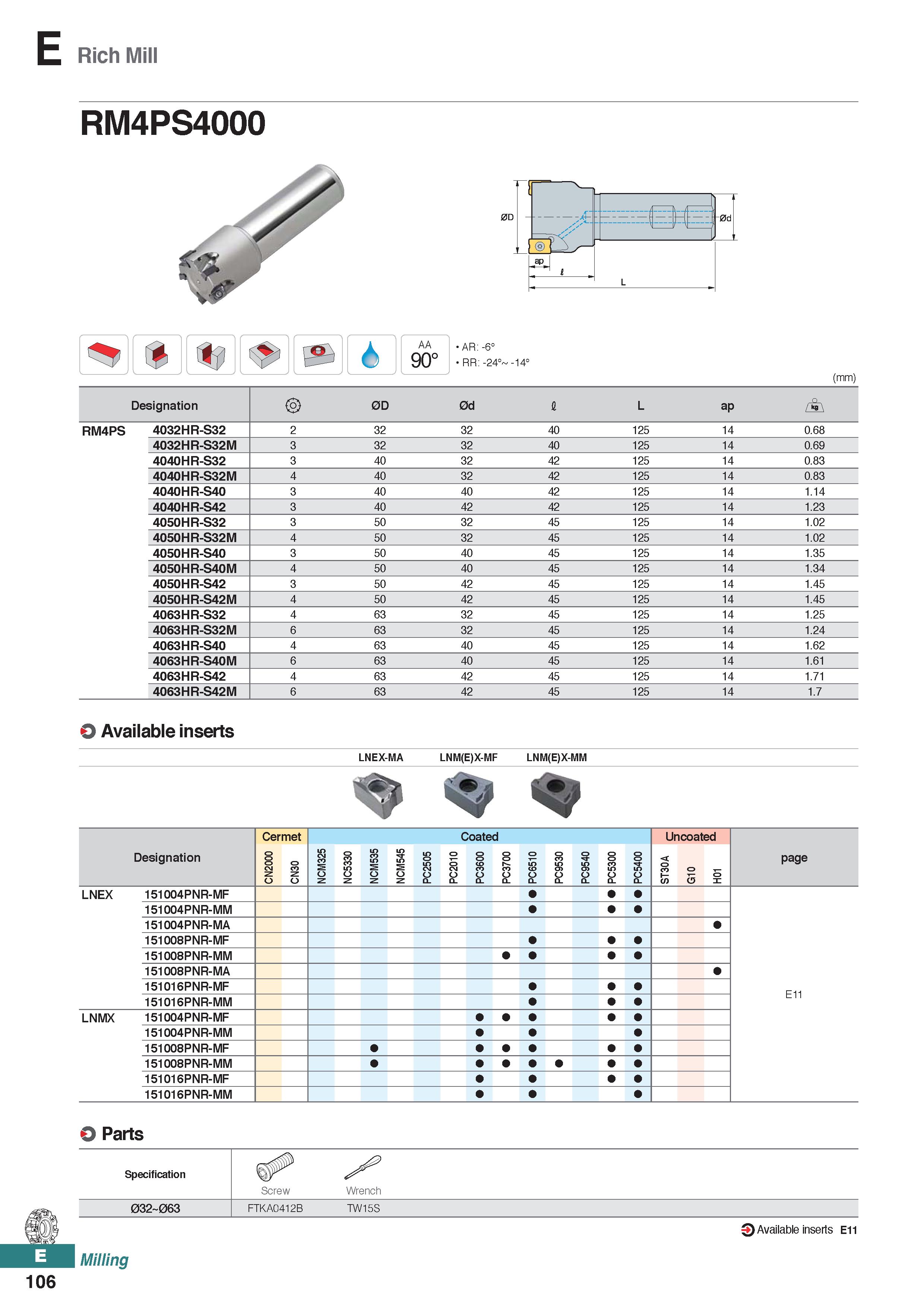

E Rich Mill RM4PS4000 AA 90° AR: -6° RR: -24° -14° (mm) Designation 0D 0d I L ap RM4PS 4032HR-S32 2 32 32 40 125 14 0.68 4032HR-S32M 3 32 32 40 125 14 0.69 4040HR-S32 3 40 32 42 125 14 0.83 4040HR-S32M 4 40 32 42 125 14 0.83 4040HR-S40 3 40 40 42 125 14 1.14 4040HR-S42 3 40 42 42 125 14 1.23 4050HR-S32 3 50 32 45 125 14 1.02 4050HR-S32M 4 50 32 45 125 14 1.02 4050HR-S40 3 50 40 45 125 14 1.35 4050HR-S40M 4 50 40 45 125 14 1.34 4050HR-S42 3 50 42 45 125 14 1.45 4050HR-S42M 4 50 42 45 125 14 1.45 4063HR-S32 4 63 32 45 125 14 1.25 4063HR-S32M 6 63 32 45 125 14 1.24 4063HR-S40 4 63 40 45 125 14 1.62 4063HR-S40M 6 63 40 45 125 14 1.61 4063HR-S42 4 63 42 45 125 14 1.71 4063HR-S42M 6 63 42 45 125 14 1.7 O Available inserts LNEX-MA LNM(E)X-MF LNM(E)X-MM Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 0335CN NCM535 NCM545 PC2505 PC2010 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A G10 H01 LNEX 151004PNR-MF 151004PNR-MM 151004PNR-MA 151008PNR-MF 151008PNR-MM 151008PNR-MA 151016PNR-MF 151016PNR-MM E11 LNMX 151004PNR-MF 151004PNR-MM 151008PNR-MF 151008PNR-MM 151016PNR-MF 151016PNR-MM 0 Parts Specification Screw S’ Wrench 032 063 FTKA0412B TW15S Milling Q Available inserts E11 106
