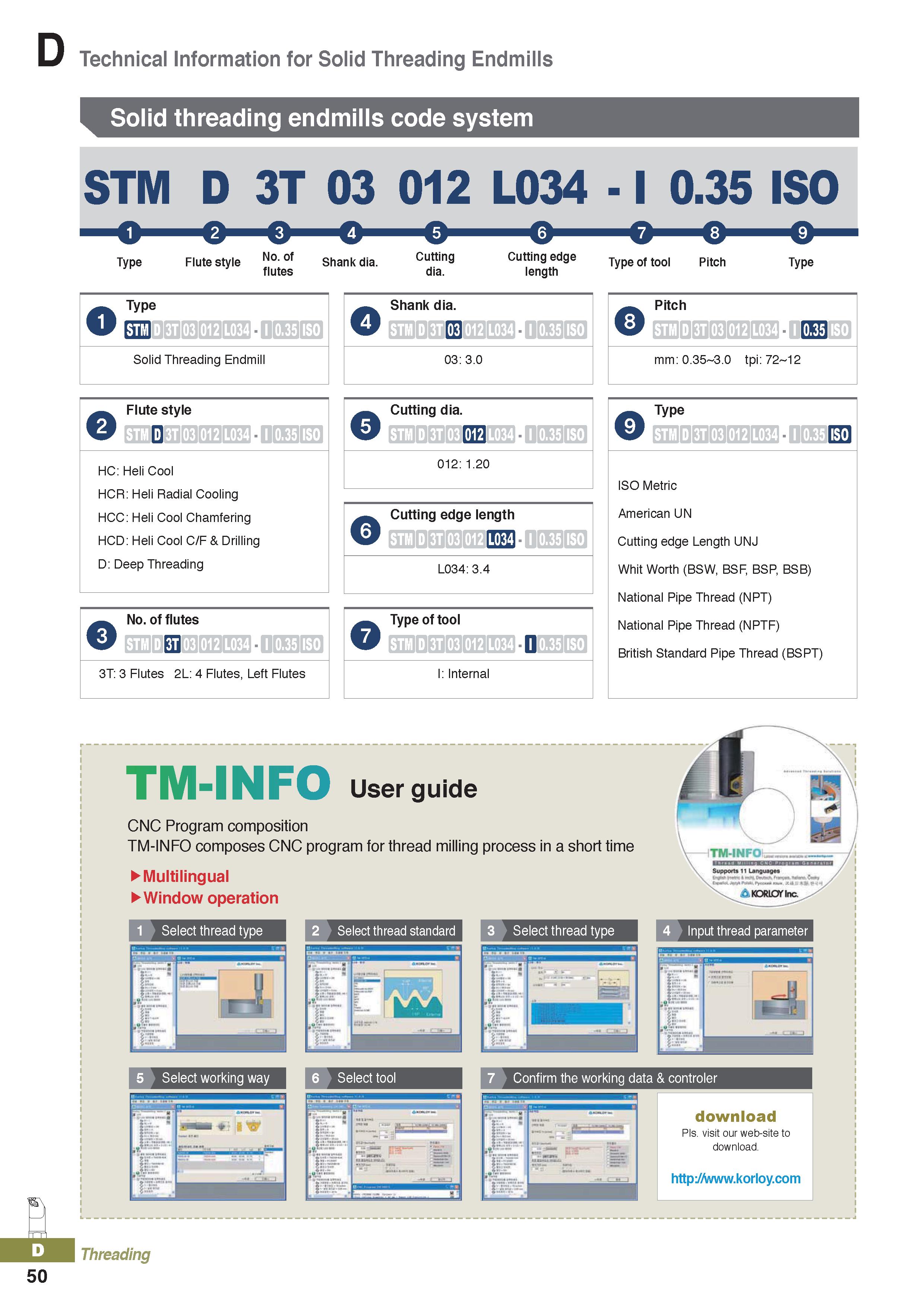

Technical Information for Solid Threading Endmills Solid threading endmills code system STM D 3T 03 012 L034 - I 0.35 ISO Type Flute style No. of Shank dia. flutes Cutting dia. Cutting edge length Type of tool Pitch Type Type - IiSo A Shank dia. Pitch - HO Solid Threading Endmill 03: 3.0 mm: 0.35 3.0 tpi: 72 12 Flute style A Cutting dia. Type Qj3SSo HC: Heli Cool 012: 1.20 ISO Metric HCR: Heli Radial Cooling HCC: Heli Cool Chamfering HCD: Heli Cool C/F & Drilling Cutting edge length sTMDjToD2p34 - SSjSo American UN Cutting edge Length UNJ D: Deep Threading L034: 3.4 Whit Worth (BSW, BSF, BSP, BSB) National Pipe Thread (NPT) No. of flutes jstmDTdq12Tq34 ms A Type of tool sTMDJDmm -fSSSo National Pipe Thread (NPTF) British Standard Pipe Thread (BSPT) 3T: 3 Flutes 2L: 4 Flutes, Left Flutes I: Internal .L TM-INFO User guide CNC Program composition TM-INFO composes CNC program for thread milling process in a short time Multilingual Window operation Select thread type 2 Select thread standard 3 Select thread type 4 Input thread parameter Select working way 6 Select tool 7 Confirm the working data & controler download Pls. visit our web-site to download. Threading 50
