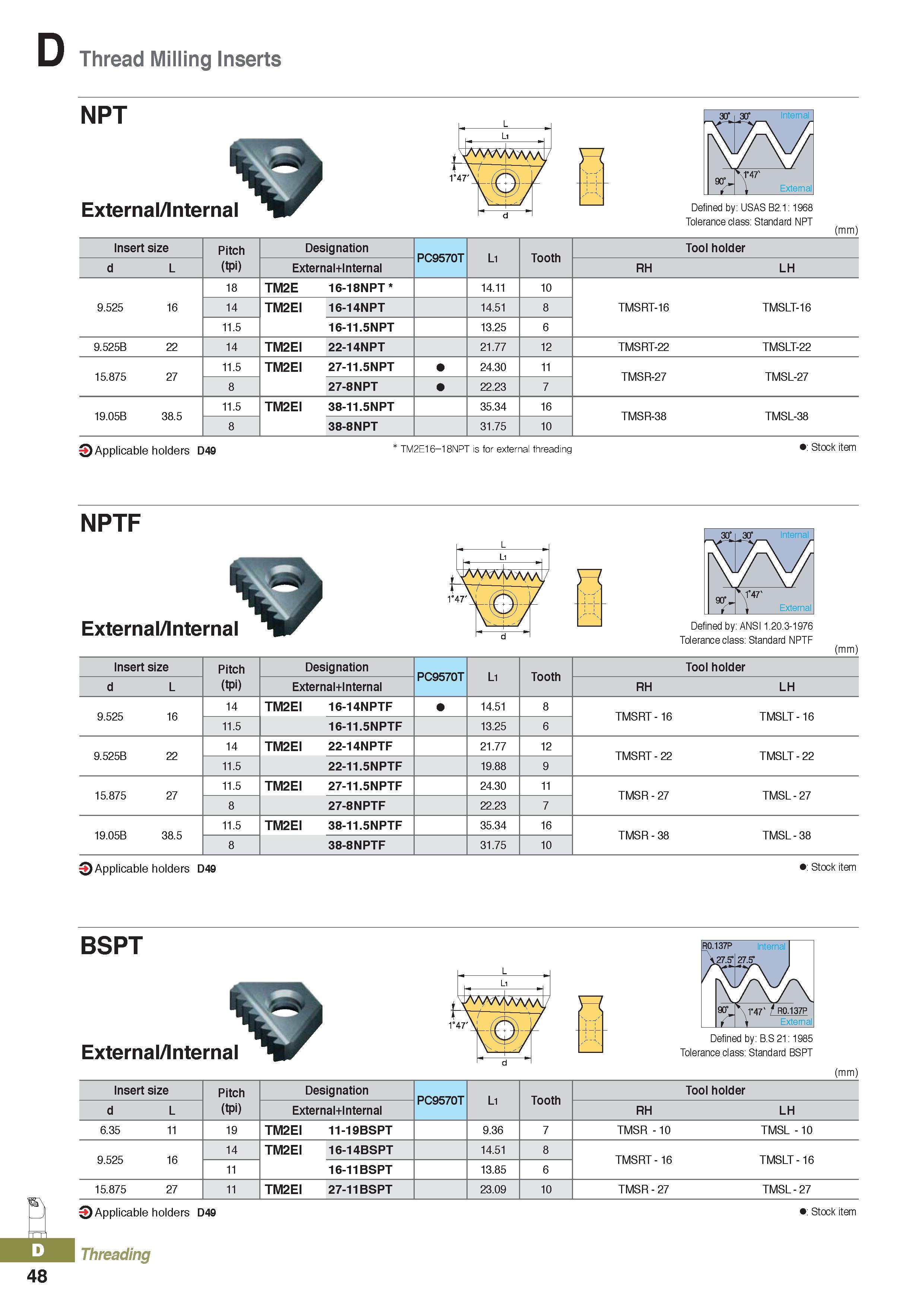

Thread Milling Inserts NPT External/Internal .V R 30° Internal 90> Vl’47' External Defined by: USAS B2.1: 1968 Tolerance class: Standard NPT (mm) Insert size Pitch Designation PC957QT Li Tooth Tool holder d L (tpi) External+Internal RH LH 18 TM2E 16-18NPT 14.11 10 9.525 16 14 TM2EI 16-14NPT 14.51 8 TMSRT-16 TMSLT-16 11.5 16-11.5NPT 13.25 6 9.525B 22 14 TM2EI 22-14NPT 21.77 12 TMSRT-22 TMSLT-22 15.875 27 11.5 TM2EI 27-11.5NPT 24.30 11 TMSR-27 TMSL-27 8 27-8NPT 22.23 7 19.05B 38.5 11.5 TM2EI 38-11.5NPT 35.34 16 TMSR-38 TMSL-38 8 38-8NPT 31.75 10 Applicable holders D49 TM2E16-18NPT is for external threading : Stock item NPTF External/Internal R 30° Internal 90“ V f47' External Defined by: ANSI 1.20.3-1976 Tolerance class: Standard NPTF (mm) Insert size Pitch Designation PC957QT L1 Tooth Tool holder d L (tpi) External+Internal RH LH 9.525 16 14 TM2EI 16-14NPTF 14.51 8 TMSRT - 16 TMSLT - 16 11.5 16-11.5NPTF 13.25 6 9.525B 22 14 TM2EI 22-14NPTF 21.77 12 TMSRT - 22 TMSLT - 22 11.5 22-11.5NPTF 19.88 9 15.875 27 11.5 TM2EI 27-11.5NPTF 24.30 11 TMSR - 27 TMSL - 27 8 27-8NPTF 22.23 7 19.05B 38.5 11.5 TM2EI 38-11.5NPTF 35.34 16 TMSR - 38 TMSL - 38 8 38-8NPTF 31.75 10 Q Applicable holders D49 : Stock item BSPT External/Internal S> R R0.137P \2JS Internal 27.5" 9ff A 1"47' T\R0.137P External Defined by: B.S 21: 1985 Tolerance class: Standard BSPT (mm) Insert size Pitch Designation PC957QT L1 Tooth Tool holder d L (tpi) External+Internal RH LH 6.35 11 19 TM2EI 11-19BSPT 9.36 7 TMSR - 10 TMSL - 10 9.525 16 14 TM2EI 16-14BSPT 14.51 8 TMSRT - 16 TMSLT - 16 11 16-11BSPT 13.85 6 15.875 27 11 TM2EI 27-11BSPT 23.09 10 TMSR - 27 TMSL - 27 .L 3 Applicable holders D49 Threading : Stock item 48
