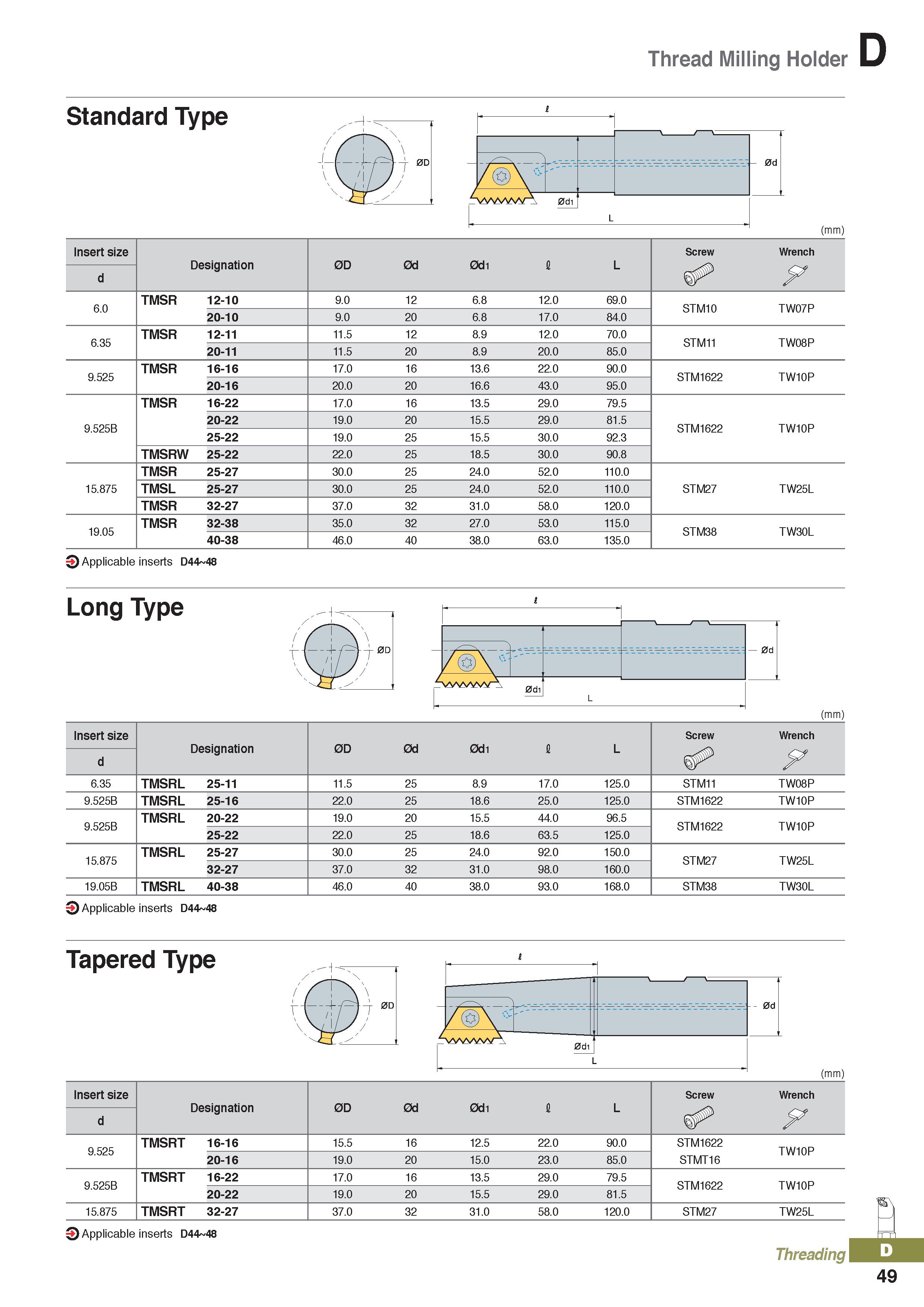

Thread Milling Holder Standard Type (mm) Insert size Designation 0D 0d 0d1 1 L Screw Wrench d 6.0 TMSR 12-10 9.0 12 6.8 12.0 69.0 STM10 TW07P 20-10 9.0 20 6.8 17.0 84.0 6.35 TMSR 12-11 11.5 12 .9 8. 12.0 70.0 STM11 TW08P 20-11 11.5 20 .9 8. 20.0 85.0 9.525 TMSR 16-16 17.0 16 13.6 22.0 90.0 STM1622 TW10P 20-16 20.0 20 16.6 43.0 95.0 TMSR 16-22 17.0 16 13.5 29.0 79.5 9.525B 20-22 19.0 20 15.5 29.0 81.5 STM1622 TW10P 25-22 19.0 25 15.5 30.0 92.3 TMSRW 25-22 22.0 25 18.5 30.0 90.8 TMSR 25-27 30.0 25 24.0 52.0 110.0 15.875 TMSL 25-27 30.0 25 24.0 52.0 110.0 STM27 TW25L TMSR 32-27 37.0 32 31.0 58.0 120.0 19.05 TMSR 32-38 35.0 32 27.0 53.0 115.0 STM38 TW30L 40-38 46.0 40 38.0 63.0 135.0 o Applicable inserts D44 48 Long Type (mm) Insert size Designation 0D 0d 0d1 1 L Screw Wrench d F 6.35 TMSRL 25-11 11.5 25 8.9 17.0 125.0 STM11 TW08P 9.525B TMSRL 25-16 22.0 25 18.6 25.0 125.0 STM1622 TW10P 9.525B TMSRL 20-22 19.0 20 15.5 44.0 96.5 STM1622 TW10P 25-22 22.0 25 18.6 63.5 125.0 15.875 TMSRL 25-27 30.0 25 24.0 92.0 150.0 STM27 TW25L 32-27 37.0 32 31.0 98.0 160.0 19.05B TMSRL 40-38 46.0 40 38.0 93.0 168.0 STM38 TW30L 3 Applicable inserts D44 48 Tapered Type 0 Applicable inserts D44 48 (mm) Insert size Designation 0D 0d 0d1 1 L Screw Wrench d y 9.525 TMSRT 16-16 15.5 16 12.5 22.0 90.0 STM1622 TW10P 20-16 19.0 20 15.0 23.0 85.0 STMT16 9.525B TMSRT 16-22 17.0 16 13.5 29.0 79.5 STM1622 TW10P 20-22 19.0 20 15.5 29.0 81.5 15.875 TMSRT 32-27 37.0 32 31.0 58.0 120.0 STM27 TW25L Threading Jm 49
