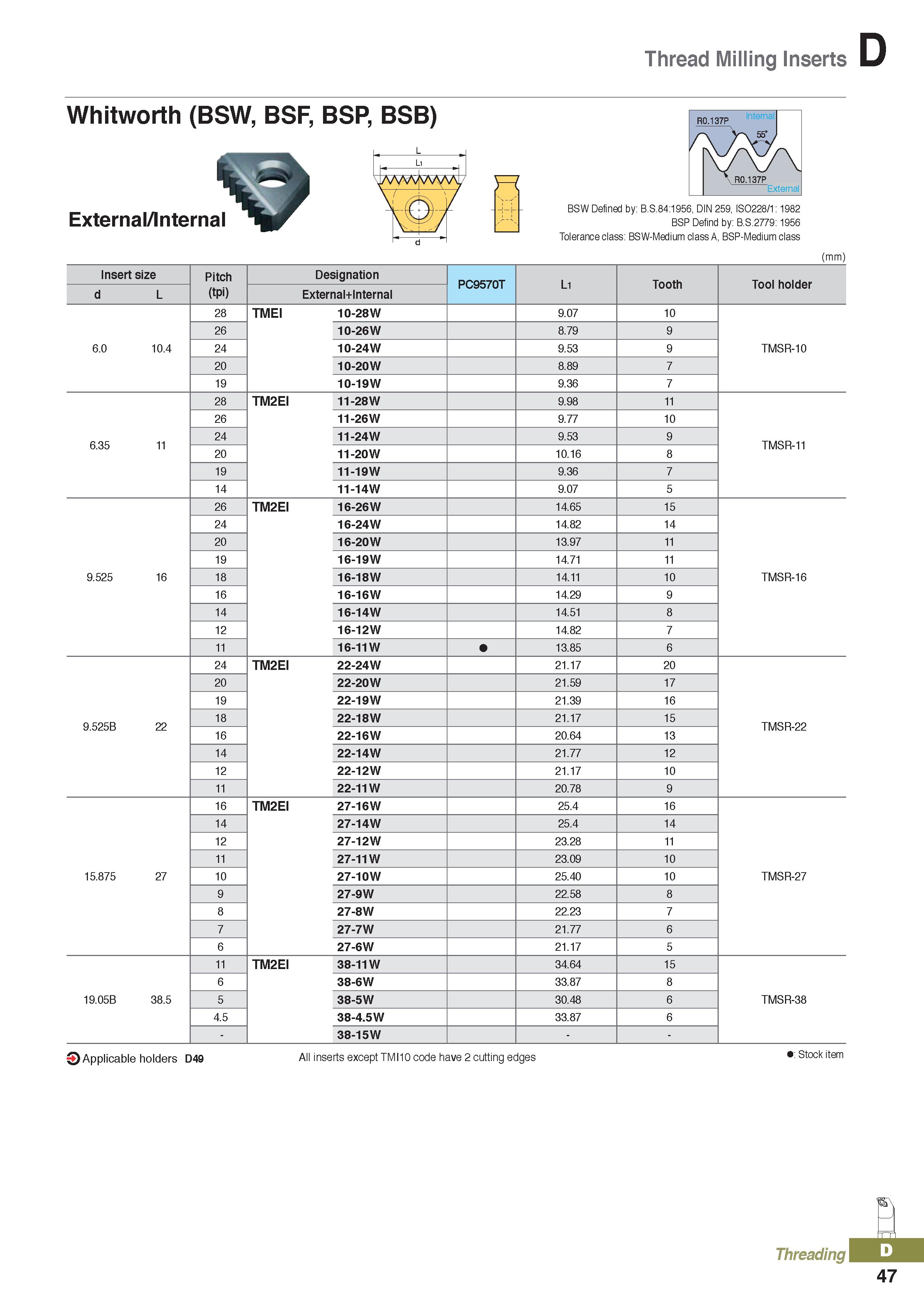

Thread Milling Inserts Whitworth (BSW, BSF, BSP, BSB) External/Internal BSW Delined by: B.S.841956, DIN 259, ISO228/1: 1982 BSP Defind by: B.S.2779: 1956 Tolerance class: BSW-Medium class A, BSP-Medium class (mm) Insert size Pitch (tpi) Designation PC9570T L1 Tooth Tool holder d L External+Internal 6.0 10.4 28 TMEI 10-28W 9.07 10 TMSR-10 26 10-26W 8.79 9 24 10-24W 9.53 9 20 10-20W 8.89 7 19 10-19W 9.36 7 6.35 11 28 TM2EI 11-28W 9.98 11 TMSR-11 26 11-26W 9.77 10 24 11-24W 9.53 9 20 11-20W 10.16 8 19 11-19W 9.36 7 14 11-14W 9.07 5 9.525 16 26 TM2EI 16-26W 14.65 15 TMSR-16 24 16-24W 14.82 14 20 16-20W 13.97 11 19 16-19W 14.71 11 18 16-18W 14.11 10 16 16-16W 14.29 9 14 16-14W 14.51 8 12 16-12W 14.82 7 11 16-11W 13.85 6 9.525B 22 24 TM2EI 22-24W 21.17 20 TMSR-22 20 22-20W 21.59 17 19 22-19W 21.39 16 18 22-18W 21.17 15 16 22-16W 20.64 13 14 22-14W 21.77 12 12 22-12W 21.17 10 11 22-11W 20.78 9 15.875 27 16 TM2EI 27-16W 25.4 16 TMSR-27 14 27-14W 25.4 14 12 27-12W 23.28 11 11 27-11W 23.09 10 10 27-10W 25.40 10 9 27-9W 22.58 8 8 27-8W 22.23 7 7 27-7W 21.77 6 6 27-6W 21.17 5 11 TM2EI 38-11W 34.64 15 6 38-6W 33.87 8 19.05B 38.5 5 38-5W 30.48 6 TMSR-38 4.5 38-4.5W 33.87 6 - 38-15W 9 Applicable holders D49 All inserts except TMI10 code have 2 cutting edges : Stock item Jm Threading 47
