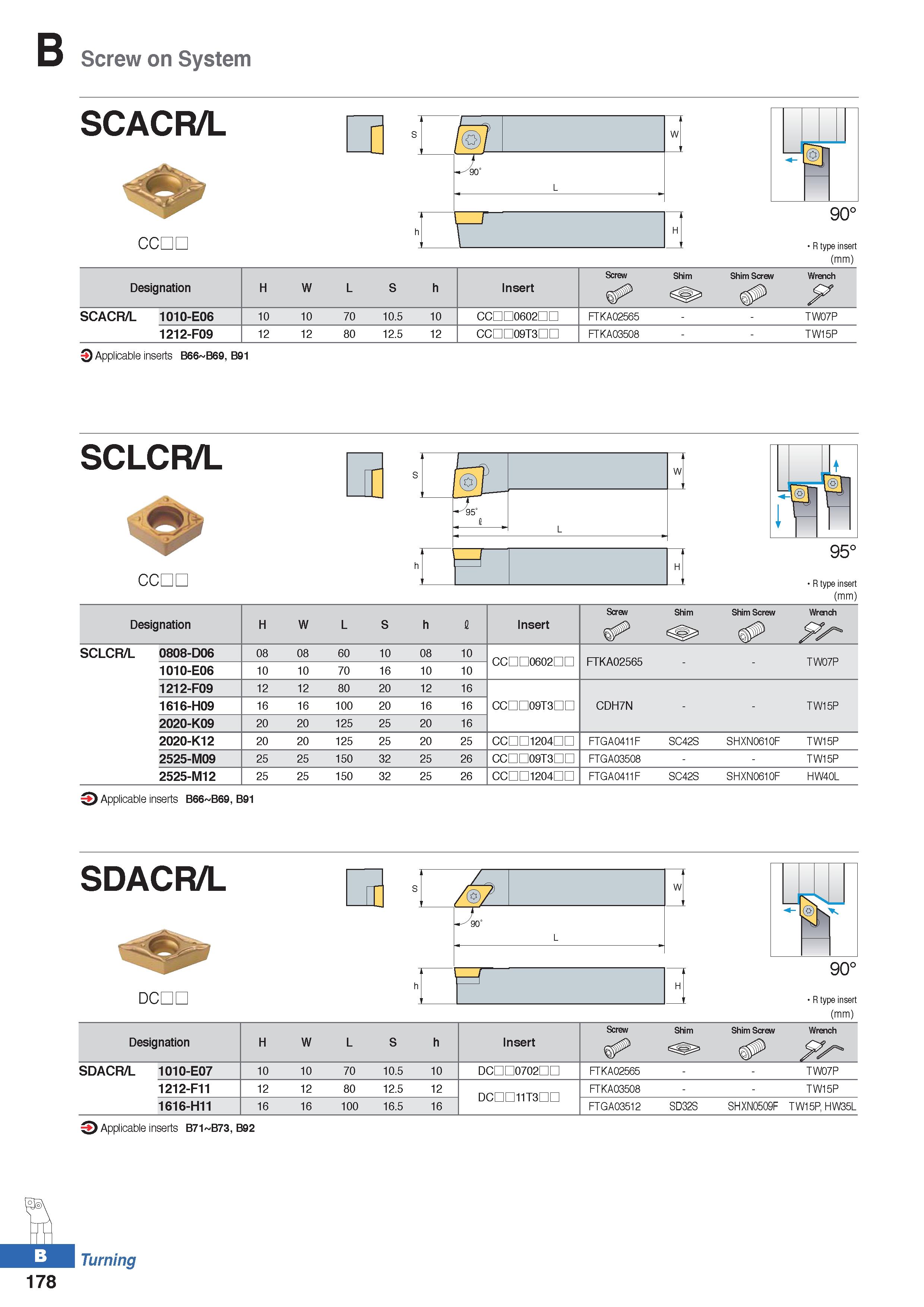

Screw on System SCACR/L CCDL 90° R type insert (mm) Screw Shim Shim Screw Wrench Designation H W L S h Insert F SCACR/L 1010-E06 10 10 70 10.5 10 CCDD0602nn FTKA02565 TW07P 1212-F09 12 12 80 12.5 12 CCDD09T3nn FTKA03508 TW15P 0 Applicable inserts B66 B69, B91 SCLCR/L CCDL JT E 2") ''95' R type insert (mm) Designation H W L S h I Insert Screw Shim Shim Screw Wrench SCLCR/L 0808-D06 08 08 60 10 08 10 CCDD0602nn FTKA02565 TW07P 1010-E06 10 10 70 16 10 10 1212-F09 12 12 80 20 12 16 1616-H09 16 16 100 20 16 16 CCDD09T3nn CDH7N TW15P 2020-K09 20 20 125 25 20 16 2020-K12 20 20 125 25 20 25 CCHD1204HD FTGA0411F SC42S SHXN0610F TW15P 2525-M09 25 25 150 32 25 26 CCDD09T3nn FTGA03508 TW15P 2525-M12 25 25 150 32 25 26 CCHD1204HD FTGA0411F SC42S SHXN0610F HW40L Applicable inserts B66 B69, B91 W S L h H SDACR/L DCDL id 90° R type insert (mm) Designation H W L S h Insert Screw Shim Shim Screw Wrench SDACR/L 1010-E07 10 10 70 10.5 10 DCDD0702nn FTKA02565 TW07P 1212-F11 12 12 80 12.5 12 DCHD11T3HD FTKA03508 TW15P 1616-H11 16 16 100 16.5 16 FTGA03512 SD32S SHXN0509F TW15P, HW35L Applicable inserts B71 B73, B92
