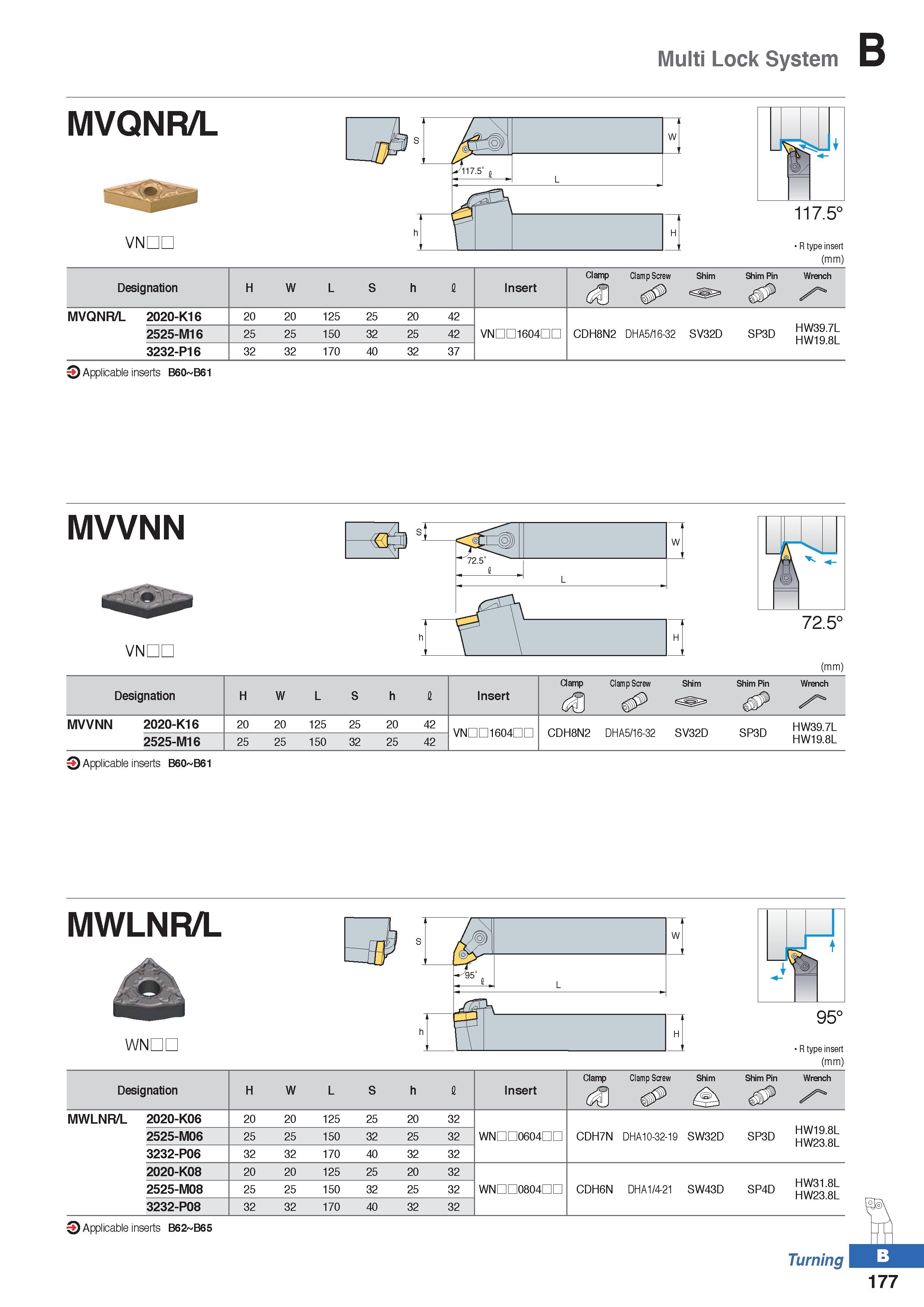

Multi Lock System MVQNR/L VNDL R type insert (mm) Designation H W L S h I Insert Clamp Clamp Screw 6 Shim Shim Pin Wrench y MVQNR/L 2020-K16 20 20 125 25 20 42 HW39.7L HW19.8L 2525-M16 25 25 150 32 25 42 VNHD1604HD CDH8N2 DHA5/16-32 SV32D SP3D 3232-P16 32 32 170 40 32 37 o Applicable inserts B60 B61 MVVNN VNDL 72.5° (mm) Designation H W L S h 2 Insert Clamp Clamp Screw Shim Shim Pin & Wrench y MVVNN 2020-K16 20 20 125 25 20 42 VNHD1604HD CDH8N2 DHA5/16-32 SV32D SP3D HW39.7L 2525-M16 25 25 150 32 25 42 HW19.8L 9 Applicable inserts B60 B61 MWLNR/L WNDL K 95° R type insert (mm) Designation H W L S h I Insert Clamp fid Clamp Screw Shim Shim Pin Wrench A" MWLNR/L 2020-K06 20 20 125 25 20 32 HW19.8L HW23.8L 2525-M06 25 25 150 32 25 32 WNDD0604nn CDH7N DHA10-32-19 SW32D SP3D 3232-P06 32 32 170 40 32 32 2020-K08 20 20 125 25 20 32 HW31.8L HW23.8L 2525-M08 25 25 150 32 25 32 WNDD0804nn CDH6N DHA1/4-21 SW43D SP4D 3232-P08 32 32 170 40 32 32 Applicable inserts B62 B65 Turning 177
