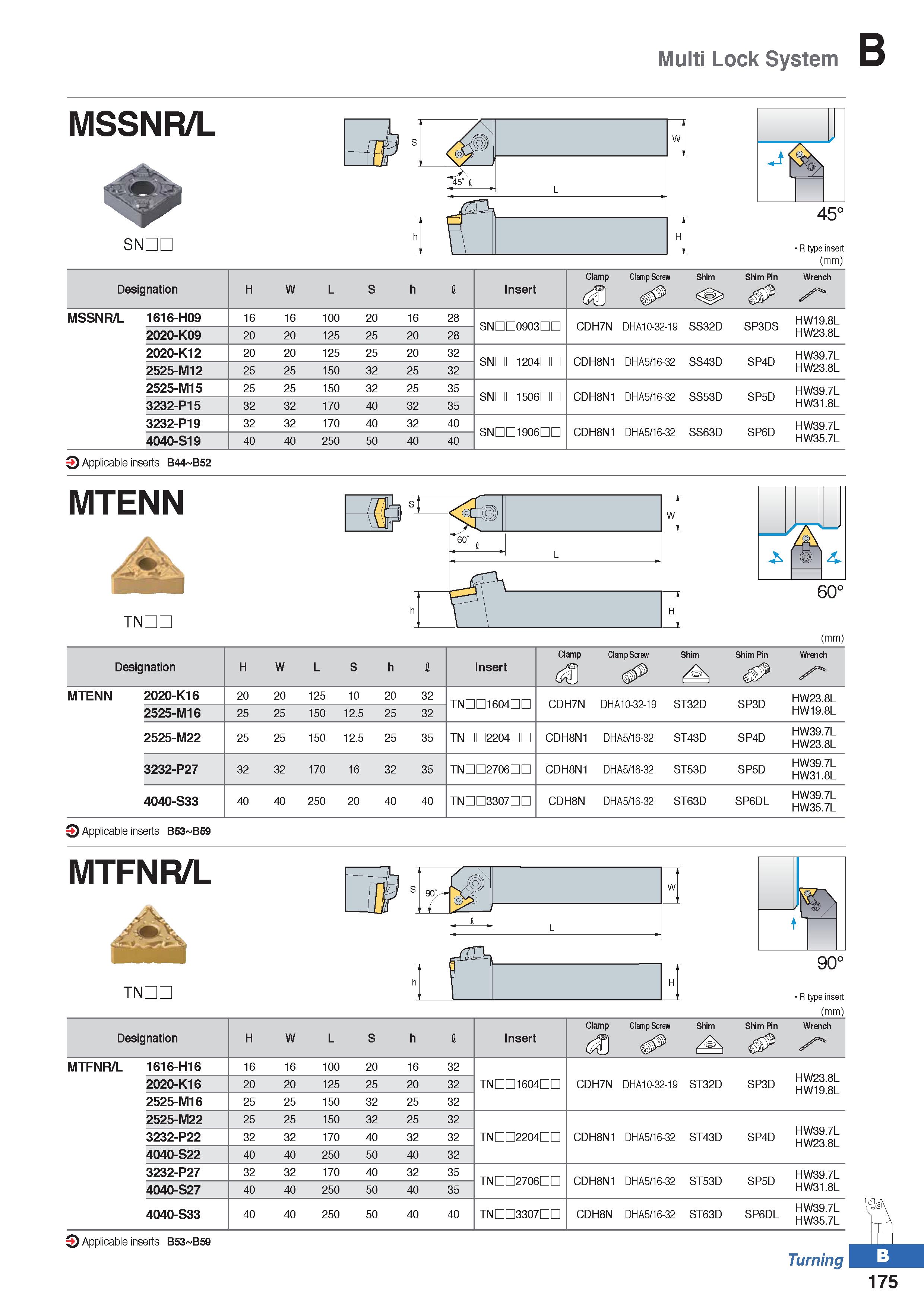

Multi Lock System MSSNR/L SNDL 45° R type insert (mm) Designation H W L S h I Insert Clamp Clamp Screw Shim Shim Pin Wrench MSSNR/L 1616-H09 16 16 100 20 16 28 SNDD0903nn CDH7N DHA10-32-19 SS32D SP3DS HW19.8L 2020-K09 20 20 125 25 20 28 HW23.8L 2020-K12 20 20 125 25 20 32 SNHD1204HD CDH8N1 DHA5/16-32 SS43D SP4D HW39.7L 2525-M12 25 25 150 32 25 32 HW23.8L 2525-M15 25 25 150 32 25 35 SNHD1506HD CDH8N1 DHA5/16-32 SS53D SP5D HW39.7L 3232-P15 32 32 170 40 32 35 HW31.8L 3232-P19 32 32 170 40 32 40 SNHD1906HD CDH8N1 DHA5/16-32 SS63D SP6D HW39.7L 4040-S19 40 40 250 50 40 40 HW35.7L 9 Applicable inserts B44 B52 MTENN mmm TNDL 4. 60° (mm) Designation H W L S h 2 Insert Clamp ck\ Clamp Screw Shim Shim Pin Wrench MTENN 2020-K16 20 20 125 10 20 32 TNHD1604HD CDH7N DHA10-32-19 ST32D SP3D HW23.8L 2525-M16 25 25 150 12.5 25 32 HW19.8L 2525-M22 25 25 150 12.5 25 35 TNDD2204nn CDH8N1 DHA5/16-32 ST43D SP4D HW39.7L HW23.8L 3232-P27 32 32 170 16 32 35 TNDD2706nn CDH8N1 DHA5/16-32 ST53D SP5D HW39.7L HW31.8L 4040-S33 40 40 250 20 40 40 TNDD3307nn CDH8N DHA5/16-32 ST63D SP6DL HW39.7L HW35.7L 9 Applicable inserts B53 B59 MTFNR/L TNDL 90° R type insert (mm) Designation H W L S h I Insert Clamp Clamp Screw Shim Shim Pin Wrench MTFNR/L 1616-H16 16 16 100 20 16 32 HW23.8L HW19.8L 2020-K16 20 20 125 25 20 32 TNHD1604HD CDH7N DHA10-32-19 ST32D SP3D 2525-M16 25 25 150 32 25 32 2525-M22 25 25 150 32 25 32 HW39.7L HW23.8L 3232-P22 32 32 170 40 32 32 TNDD2204nn CDH8N1 DHA5/16-32 ST43D SP4D 4040-S22 40 40 250 50 40 32 3232-P27 32 32 170 40 32 35 TNDD2706nn CDH8N1 DHA5/16-32 ST53D SP5D HW39.7L 4040-S27 40 40 250 50 40 35 HW31.8L 4040-S33 40 40 250 50 40 40 TNDD3307nn CDH8N DHA5/16-32 ST63D SP6DL HW39.7L HW35.7L O Applicable inserts B53 B59 Turning 175
