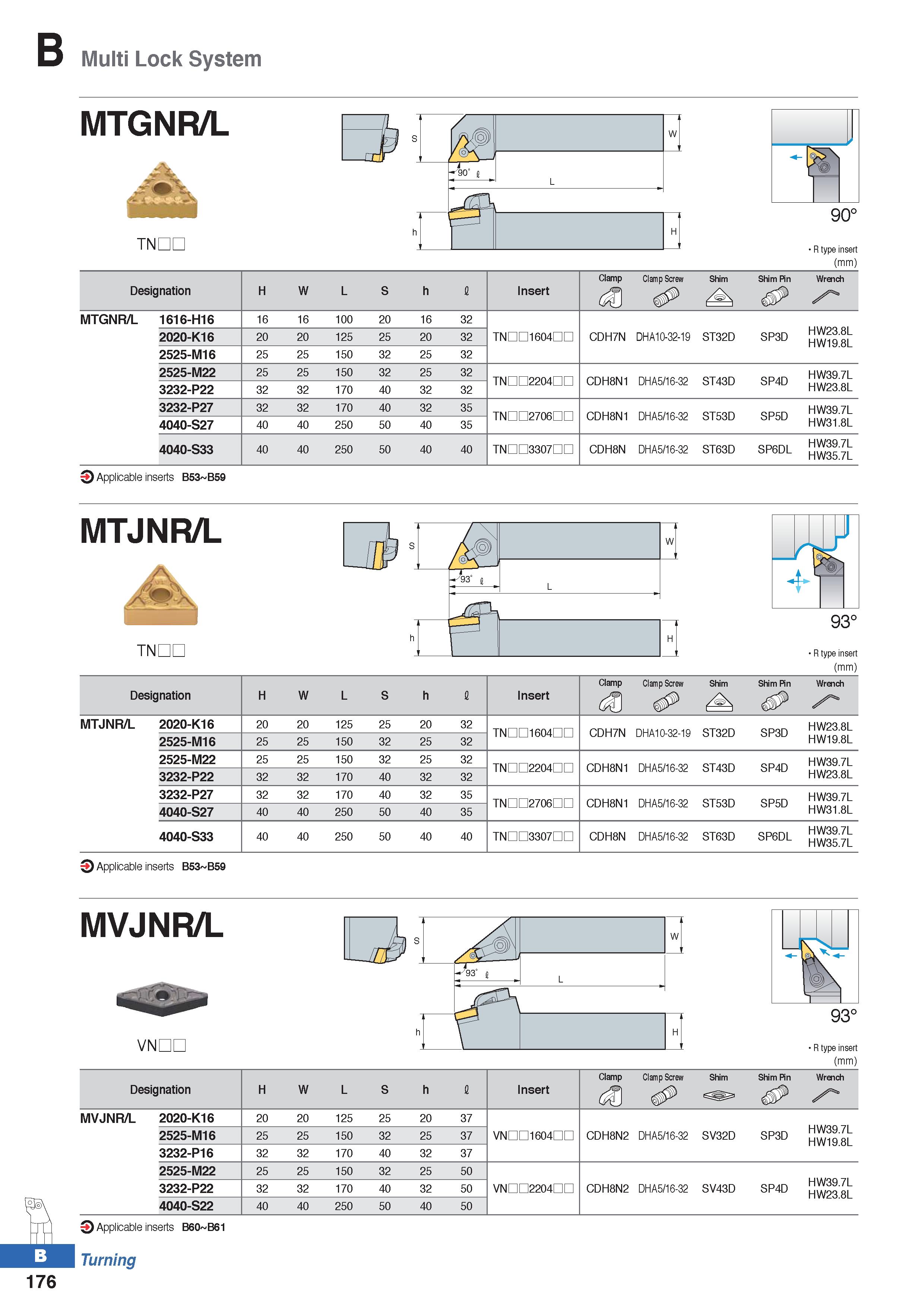

Multi Lock System mtgnr/l TNDL 90° R type insert (mm) Designation H W L S h I Insert Clamp Clamp Screw Shim Shim Pin Wrench MTGNR/L 1616-H16 16 16 100 20 16 32 HW23.8L HW19.8L 2020-K16 20 20 125 25 20 32 TNHD1604HD CDH7N DHA10-32-19 ST32D SP3D 2525-M16 25 25 150 32 25 32 2525-M22 25 25 150 32 25 32 TNDD2204nn CDH8N1 DHA5/16-32 ST43D SP4D HW39.7L 3232-P22 32 32 170 40 32 32 HW23.8L 3232-P27 32 32 170 40 32 35 TNDD2706nn CDH8N1 DHA5/16-32 ST53D SP5D HW39.7L 4040-S27 40 40 250 50 40 35 HW31.8L 4040-S33 40 40 250 50 40 40 TNDD3307nn CDH8N DHA5/16-32 ST63D SP6DL HW39.7L HW35.7L O Applicable inserts B53 B59 MTJNR/L TNDL R type insert (mm) Clamp Clamp Screw Shim Shim Pin Wrench Designation H W L S h I Insert A"‘ MTJNR/L 2020-K16 20 20 125 25 20 32 TNHD1604HD CDH7N DHA10-32-19 ST32D SP3D HW23.8L 2525-M16 25 25 150 32 25 32 HW19.8L 2525-M22 25 25 150 32 25 32 TNDD2204nn CDH8N1 DHA5/16-32 ST43D SP4D HW39.7L 3232-P22 32 32 170 40 32 32 HW23.8L 3232-P27 32 32 170 40 32 35 TNDD2706nn CDH8N1 DHA5/16-32 ST53D SP5D HW39.7L 4040-S27 40 40 250 50 40 35 HW31.8L 4040-S33 40 40 250 50 40 40 TNDD3307nn CDH8N DHA5/16-32 ST63D SP6DL HW39.7L HW35.7L O Applicable inserts B53 B59 MVJNR/L VNDL R type insert (mm) Designation H W L S h I Insert Clamp (nD Clamp Screw Shim Shim Pin Wrench MVJNR/L 2020-K16 20 20 125 25 20 37 HW39.7L HW19.8L 2525-M16 25 25 150 32 25 37 VNHD1604HD CDH8N2 DHA5/16-32 SV32D SP3D 3232-P16 32 32 170 40 32 37 2525-M22 25 25 150 32 25 50 HW39.7L HW23.8L 3232-P22 32 32 170 40 32 50 VNDD2204nn CDH8N2 DHA5/16-32 SV43D SP4D 4040-S22 40 40 250 50 40 50 Applicable inserts B60 B61 Turning 176
