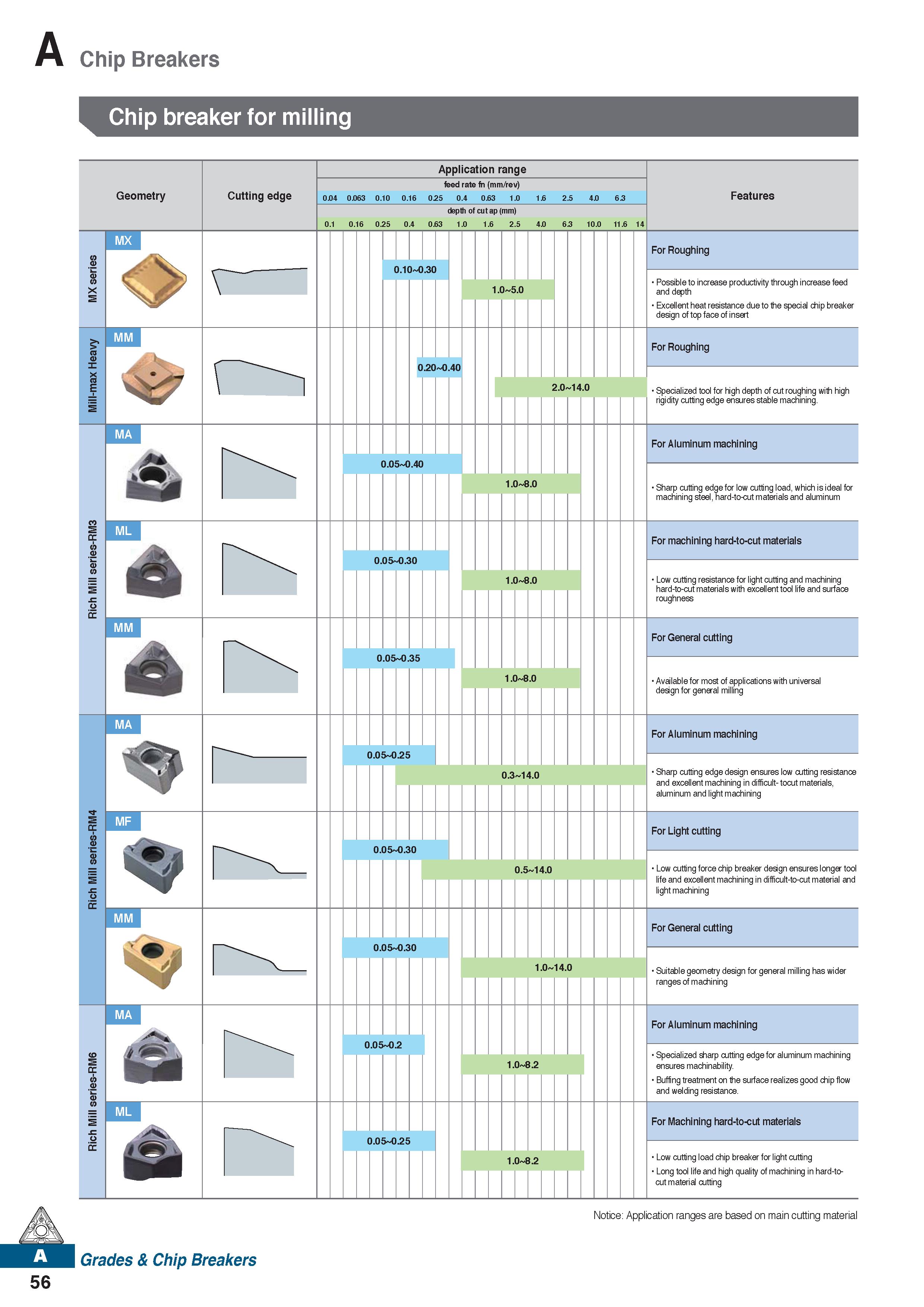

Chip Breakers Chip breaker for milling 56 Geometry Cutting edge Application range feed rate fn (mm/rev) 0.04 0.063 0.10 0.16 0.25 0.4 0.63 1.0 1.6 2.5 4.0 6.3 depth of cut ap (mm) 0.1 0.16 0.25 0.4 0.63 1.0 1.6 2.5 4.0 6.3 10.0 11.6 14 Features 0.10 0.30 1.0 5.0 For Roughing Possible to increase productivity through increase feed and depth Excellent heat resistance due to the special chip breaker design of top face of insert 2.0 14.0 For Roughing Specialized tool for high depth of cut roughing with high rigidity cutting edge ensures stable machining. 0.05 0.40 For Aluminum machining Sharp cutting edge for low cutting load, which is ideal for machining steel, hard-to-cut materials and aluminum 1.0 8.0 For machining hard-to-cut materials Low cutting resistance for light cutting and machining hard-to-cut materials with excellent tool life and surface For General cutting Available for most of applications with universal design for general milling For Aluminum machining Sharp cutting edge design ensures low cutting resistance and excellent machining in difficult- tocut materials, aluminum and light machining For Light cutting Low cutting force chip breaker design ensures longer tool life and excellent machining in difficult-to-cut material and light machining 0.05 0.30 For General cutting Suitable geometry design for general milling has wider ranges of machining 1.0 8.2 For Aluminum machining Specialized sharp cutting edge for aluminum machining ensures machinability. Buffing treatment on the surface realizes good chip flow and welding resistance. 1.0 8.2 For Machining hard-to-cut materials Low cutting load chip breaker for light cutting Long tool life and high quality of machining in hard-to-cut material cutting MX MA MA MF MA ML Notice: Application ranges are based on main cutting material Grades & Chip Breakers
