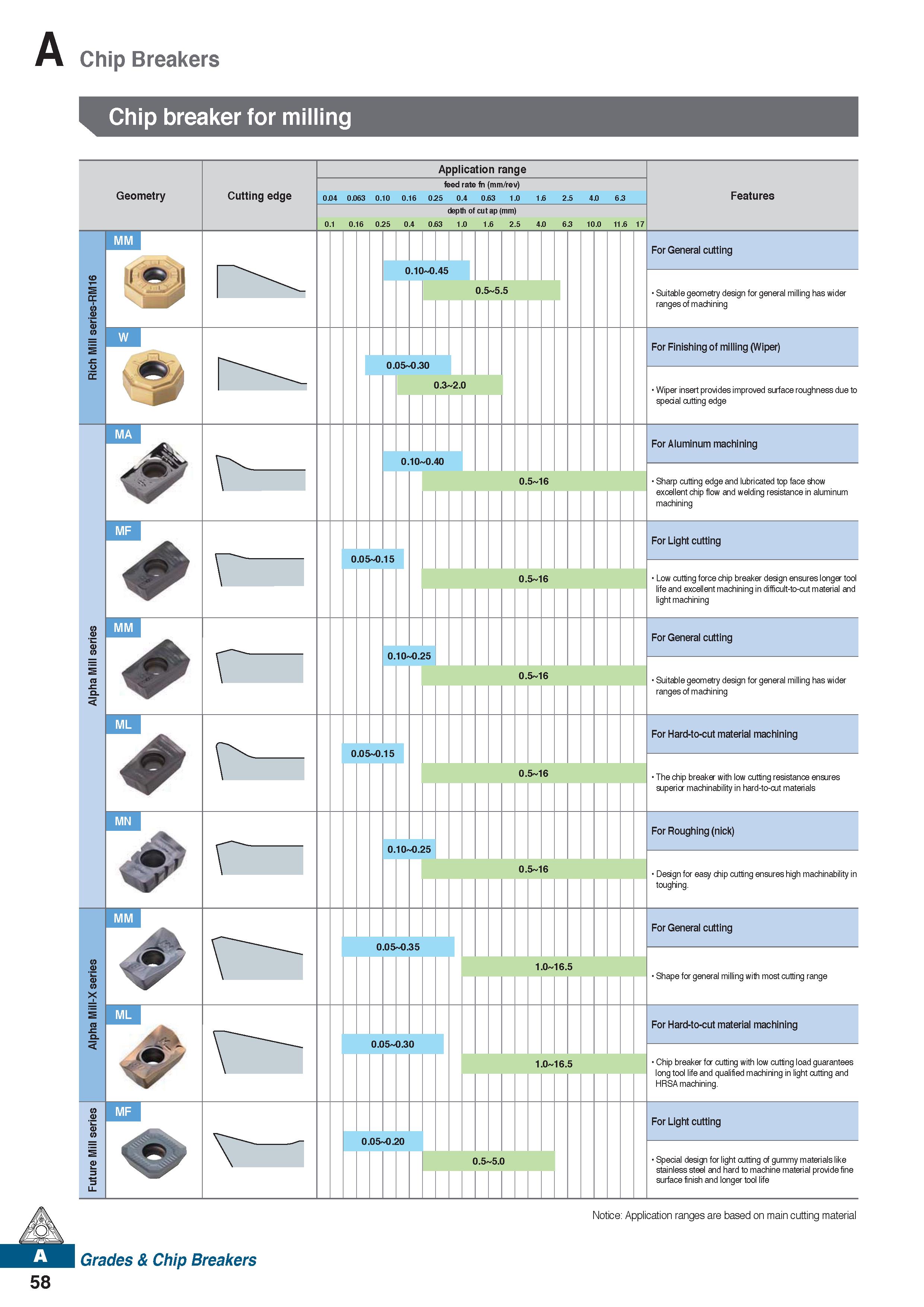

Chip Breakers Chip breaker for milling Geometry mm Cutting edge Application range feed rate fn (mm/rev) 0.04 0.063 0.10 0.16 0.25 0.4 0.63 1.0 1.6 2.5 4.0 6.3 depth of cut ap (mm) 0.1 0.16 0.25 0.4 0.63 1.0 1.6 2.5 4.0 6.3 10.0 11.6 17 0.5 5.5 0.3 2.0 0.5 16 0.5 16 0.5 16 0.5 16 0.10 0.25 0.05 0.35 0.05 0.20 1.0 16.5 Features For General cutting Suitable geometry design for general milling has wider ranges of machining For Finishing of milling (Wiper) Wiper insert provides improved surface roughness due to special cutting edge For Aluminum machining Sharp cutting edge and lubricated top face show excellent chip flow and welding resistance in aluminum machining For Light cutting Low cutting force chip breaker design ensures longer tool life and excellent machining in difficult-to-cut material and light machining For General cutting Suitable geometry design for general milling has wider ranges of machining For Hard-to-cut material machining The chip breaker with low cutting resistance ensures superior machinability in hard-to-cut materials For Roughing (nick) Design for easy chip cutting ensures high machinability in toughing. For General cutting Shape for general milling with most cutting range For Hard-to-cut material machining Chip breaker for cutting with low cutting load guarantees long tool life and qualified machining in light cutting and HRSA machining. For Light cutting Special design for light cutting of gummy materials like stainless steel and hard to machine material provide fine surface finish and longer tool life 58 Notice: Application ranges are based on main cutting material Grades & Chip Breakers W MA MF ML MN ML MF
