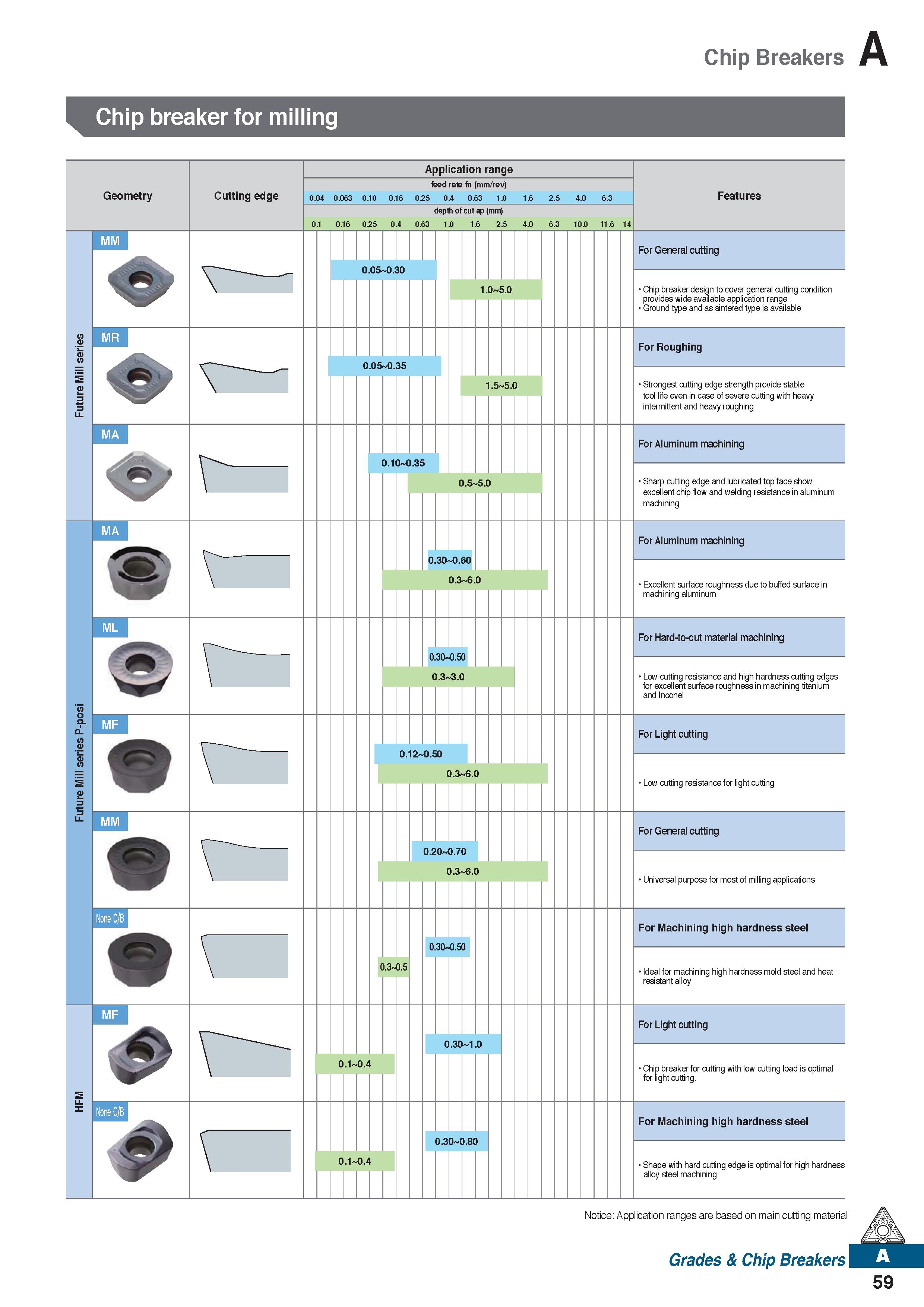

Chip Breakers Chip breaker for milling Geometry mm Cutting edge Application range feed rate fn (mm/rev) 0.04 0.063 0.10 0.16 025 0.4 0.63 1.0 1.6 2.5 4.0 6.3 depth of cut ap (mm) 0.1 0.16 025 0.4 0.63 1.0 1.6 2.5 4.0 6.3 10.0 11.6 14 0.05 0.35 1.0 5.0 0.30 0.60 0.3 6.0 0.30 0.50 0.3 3.0 0.12 0.50 0.20 0.70 0.3 6.0 0.3 0.5 0.1 0.4 0.30 0.50 0.30 0.80 Features For General cutting Chip breaker design to cover general cutting condition provides wide available application range Ground type and as sintered type is available For Roughing Strongest cutting edge strength provide stable tool life even in case of severe cutting with heavy intermittent and heavy roughing For Aluminum machining Sharp cutting edge and lubricated top face show excellent chip flow and welding resistance in aluminum machining For Aluminum machining Excellent surface roughness due to buffed surface in machining aluminum For Hard-to-cut material machining Low cutting resistance and high hardness cutting edges for excellent surface roughness in machining titanium and Inconel For Light cutting Low cutting resistance for light cutting For General cutting Universal purpose for most of milling applications For Machining high hardness steel Ideal for machining high hardness mold steel and heat resistant alloy For Light cutting Chip breaker for cutting with low cutting load is optimal for light cutting. For Machining high hardness steel Shape with hard cutting edge is optimal for high hardness alloy steel machining. Notice: Application ranges are based on main cutting material Grades & Chip Breakers 59 MR MA MA ML MF MF
