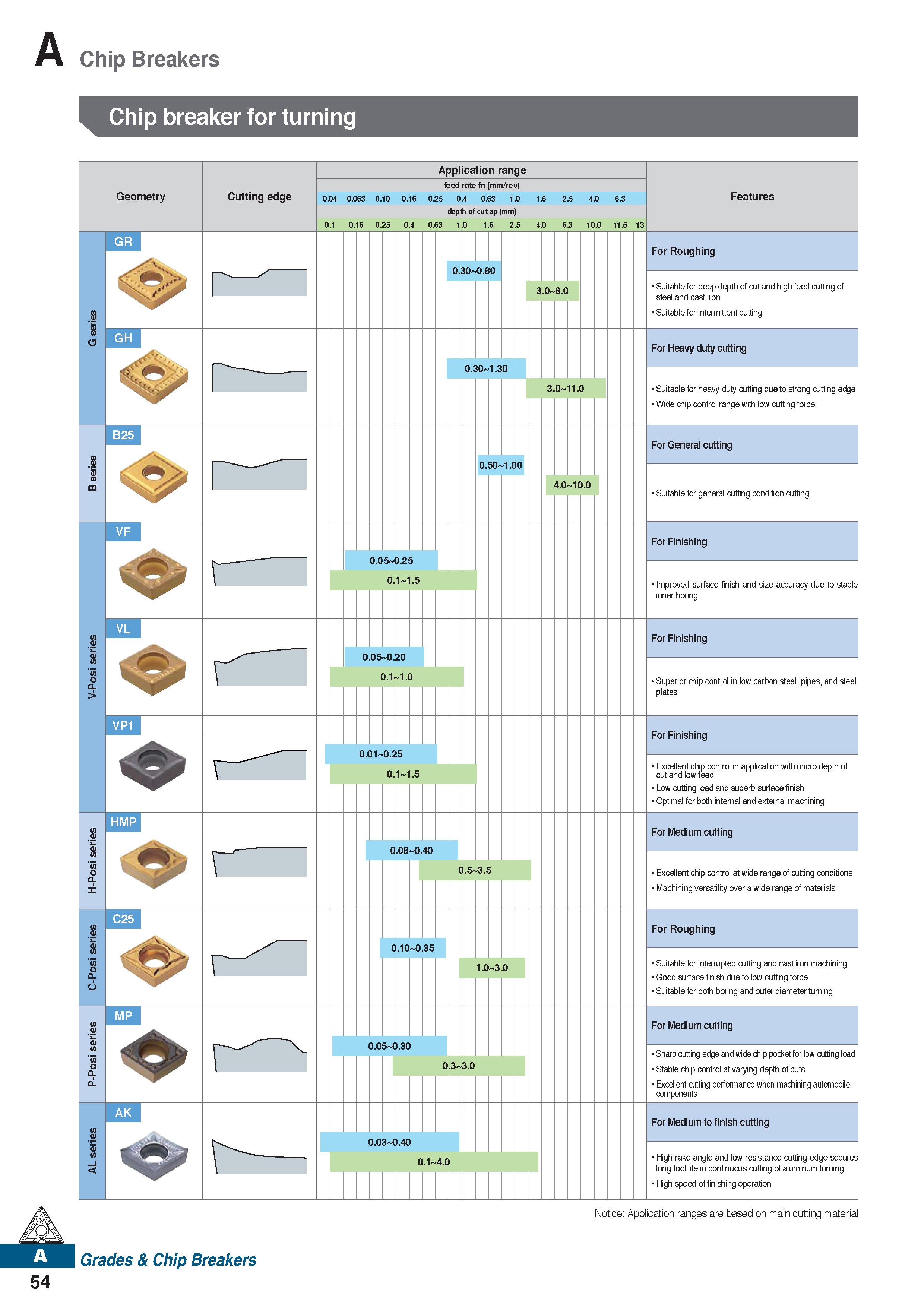

Chip Breakers Chip breaker for turning Geometry Cutting edge r Application range feed rate fn (mm/rev) 0.04 0.063 0.10 0.16 0.25 0.4 0.63 1.0 1.6 2.5 4.0 6.3 depth of cut ap (mm) 0.1 0.16 0.25 0.4 0.63 1.0 1.6 2.5 4.0 6.3 10.0 11.6 13 0.30 1.30 0.1 1.5 0.05 0.20 0.1 1.0 0.01 0.25 0.1 1.5 0.5 3.5 0.05 0.30 1.0 3.0 0.03 0.40 4.0 10.0 Features For Roughing Suitable for deep depth of cut and high feed cutting of steel and cast iron Suitable for intermittent cutting For Heavy duty cutting Suitable for heavy duty cutting due to strong cutting edge Wide chip control range with low cutting force For General cutting Suitable for general cutting condition cutting For Finishing Improved surface finish and size accuracy due to stable inner boring For Finishing Superior chip control in low carbon steel, pipes, and steel plates For Finishing Excellent chip control in application with micro depth of cut and low feed Low cutting load and superb surface finish Optimal for both internal and external machining For Medium cutting Excellent chip control at wide range of cutting conditions Machining versatility over a wide range of materials For Roughing Suitable for interrupted cutting and cast iron machining Good surface finish due to low cutting force Suitable for both boring and outer diameter turning For Medium cutting Sharp cutting edge and wide chip pocket for low cutting load Stable chip control at varying depth of cuts Excellent cutting performance when machining automobile components For Medium to finish cutting High rake angle and low resistance cutting edge secures long tool life in continuous cutting of aluminum turning High speed of finishing operation 54 Grades & Chip Breakers Notice: Application ranges are based on main cutting material GR GH B25 VF VL VP1 HMP C25 MP AK
