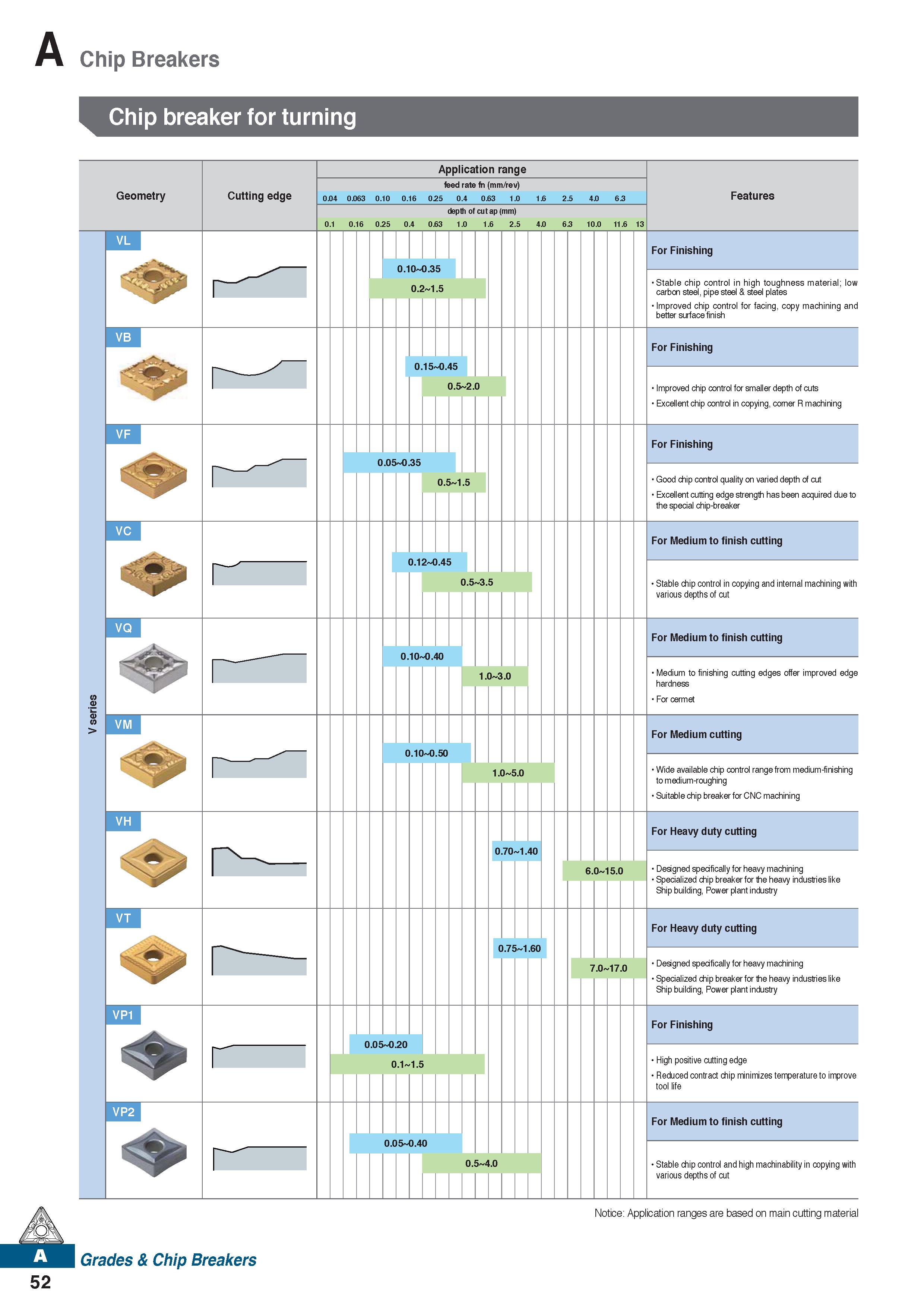

Chip Breakers Chip breaker for turning Geometry Cutting edge r Application range feed rate fn (mm/rev) 0.04 0.063 0.10 0.16 0.25 0.4 0.63 1.0 1.6 2.5 4.0 6.3 depth of cut ap (mm) 0.1 0.16 0.25 0.4 0.63 1.0 1.6 2.5 4.0 6.3 10.0 11.6 13 0.10 0.35 0.2 1.5 0.15 0.45 0.5 2.0 0.05 0.35 0.10 0.40 0.10 0.50 0.05 0.20 0.75 1.60 6.0 15.0 Features For Finishing Stable chip control in high toughness material; low carbon steel, pipe steel & steel plates Improved chip control for facing, copy machining and better surface finish For Finishing Improved chip control for smaller depth of cuts Excellent chip control in copying, corner R machining For Finishing Good chip control quality on varied depth of cut Excellent cutting edge strength has been acquired due to the special chip-breaker For Medium to finish cutting Stable chip control in copying and internal machining with various depths of cut For Medium to finish cutting Medium to finishing cutting edges offer improved edge hardness For Medium cutting Wide available chip control range from medium-finishing to medium-roughing Suitable chip breaker for CNC machining For Heavy duty cutting Designed specifically for heavy machining Specialized chip breaker for the heavy industries like Ship building, Power plant industry For Heavy duty cutting Designed specifically for heavy machining Specialized chip breaker for the heavy industries like Ship building, Power plant industry For Finishing High positive cutting edge Reduced contract chip minimizes temperature to improve tool life For Medium to finish cutting Stable chip control and high machinability in copying with various depths of cut 52 Grades & Chip Breakers Notice: Application ranges are based on main cutting material VL VB VF VC VQ For cermet VM VH VT VP1 VP2
