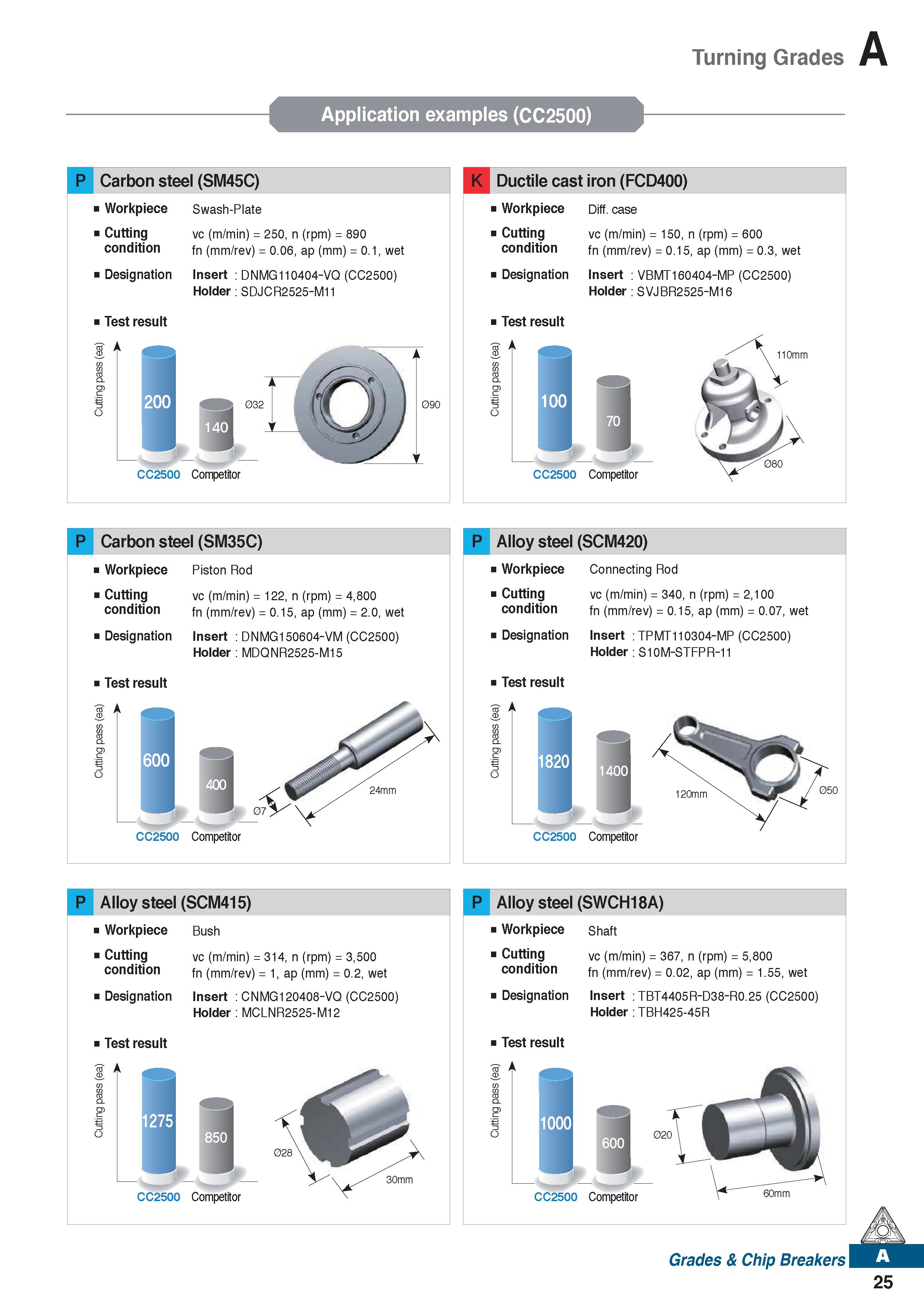

Turning Grades Application examples (CC2500) P Carbon steel (SM45C) Workpiece Swash-Plate Cutting vc (m/min) = 250, n (rpm) = 890 condition fn (mm/rev) = 0.06, ap (mm) = 0.1, wet Designation Insert : DNMG110404-VQ (CC2500) Holder : SDJCR2525-M11 Test result A 090 CC2500 Competitor Ductile cast iron (FCD400) Workpiece Diff. case Cutting condition vc (m/min) = 150, n (rpm) = 600 fn (mm/rev) = 0.15, ap (mm) = 0.3, wet Designation Insert : VBMT160404-MP (CC2500) Holder : SVJBR2525-M16 Test result CC2500 Competitor P Carbon steel (SM35C) Workpiece Piston Rod Cutting condition Designation Test result A vc (m/min) = 122, n (rpm) = 4,800 fn (mm/rev) = 0.15, ap (mm) = 2.0, wet Insert : DNMG150604-VM (CC2500) Holder : MDQNR2525-M15 24mm CC2500 Competitor P Alloy steel (SCM420) Workpiece Connecting Rod Cutting condition Designation Test result vc (m/min) = 340, n (rpm) = 2,100 fn (mm/rev) = 0.15, ap (mm) = 0.07, wet Insert : TPMT110304-MP (CC2500) Holder : S10M-STFPR-11 B B “ w V CC2500 Competitor 050 P Alloy steel (SCM415) Workpiece Bush Cutting condition Designation Test result A vc (m/min) = 314, n (rpm) = 3,500 fn (mm/rev) = 1, ap (mm) = 0.2, wet Insert : CNMG120408-VQ (CC2500) Holder : MCLNR2525-M12 CC2500 Competitor 028 30mm P Alloy steel (SWCH18A) Workpiece Shaft Cutting condition Designation Test result vc (m/min) = 367, n (rpm) = 5,800 fn (mm/rev) = 0.02, ap (mm) = 1.55, wet Insert : TBT4405R-D38-R0.25 (CC2500) Holder : TBH425-45R CC2500 Competitor 60mm Grades & Chip Breakers 25
