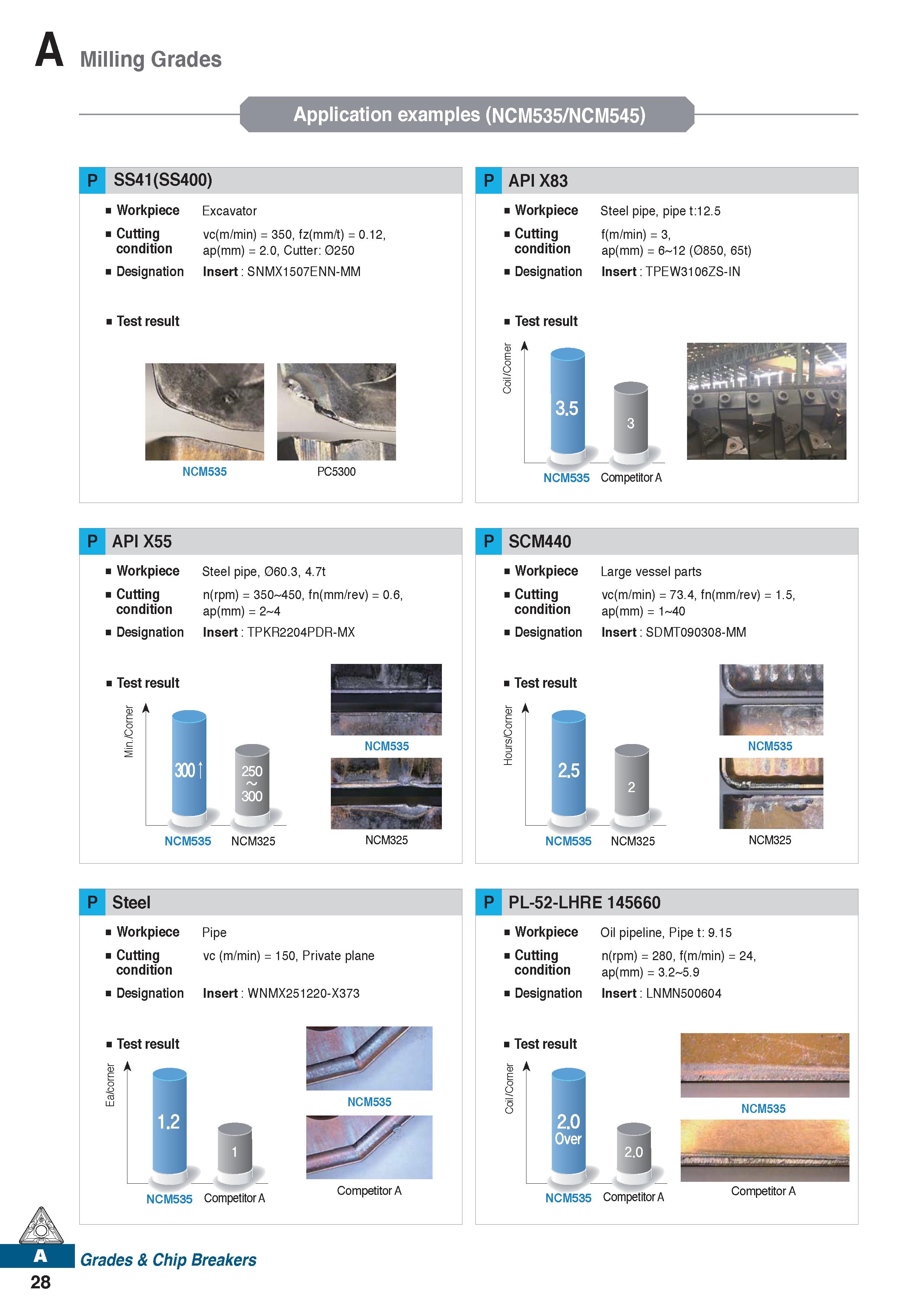

Milling Grades Application examples (NCM535/NCM545) P SS41(SS400) Workpiece Excavator vc(m/min) = 350, fz(mm/t) = 0.12, ap(mm) = 2.0, Cutter: 0250 Designation Insert: SNMX1507ENN-MM Cutting condition Test result NCM535 PC5300 P API X83 Workpiece Steel pipe, pipe t:12.5 f(m/min) = 3, ap(mm) = 6 12 (0850, 65t) Designation Insert: TPEW3106ZS-IN Cutting condition Test result CD A NCM535 Competitor A P API X55 Workpiece Steel pipe, 060.3, 4.7t Cutting condition n(rpm) = 350 450, fn(mm/rev) = 0. ap(mm) = 2 4 Designation Insert: TPKR2204PDR-MX Test result CD A c a g NCM535 NCM325 NCM325 P SCM440 Workpiece Large vessel parts vc(m/min) = 73.4, fn(mm/rev) = 1.5, ap(mm) = 1 40 Designation Insert: SDMT090308-MM Cutting condition Test result NCM535 NCM325 NCM325 P Steel Workpiece Pipe vc (m/min) = 150, Private plane Cutting condition Designation Insert: WNMX251220-X373 Test result NCM535 Competitor A Competitor A Grades & Chip Breakers P PL-52-LHRE 145660 Workpiece Cutting condition Designation Test result Oil pipeline, Pipe t: 9.15 n(rpm) = 280, f(m/min) = 24, ap(mm) = 3.2 5.9 Insert: LNMN500604 NCM535 Competitor A NCM535 Competitor A 28
