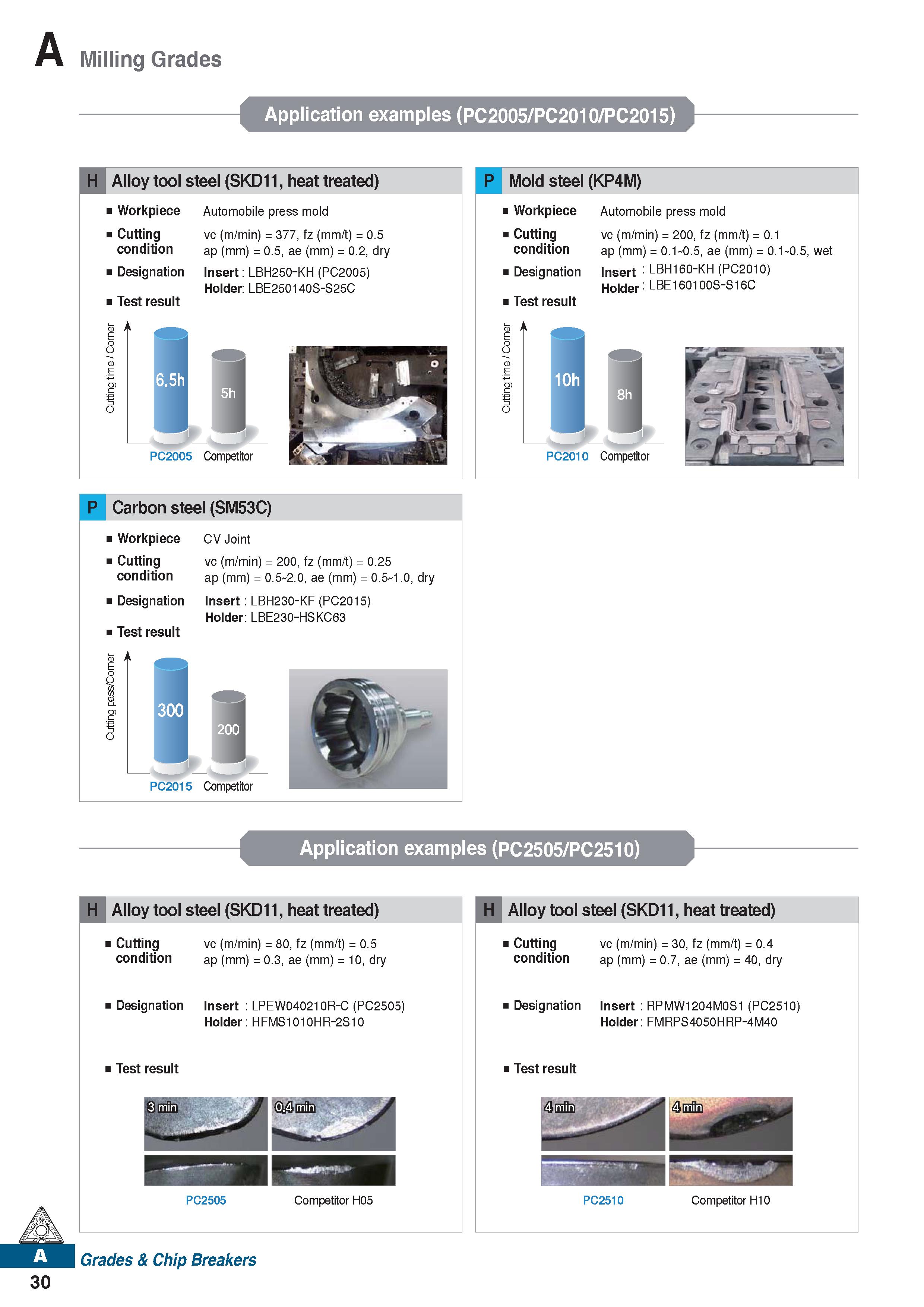

Milling Grades Application examples (PC2005/PC2010/PC2015) H Alloy tool steel (SKD11, heat treated) Workpiece Cutting condition Designation Test result Automobile press mold vc (m/min) = 377, fz (mm/t) = 0.5 ap (mm) = 0.5, ae (mm) = 0.2, dry Insert: LBH250-KH (PC2005) Holder: LBE250140S-S25C PC2005 Competitor P Mold steel (KP4M) Workpiece Cutting condition Designation Test result Automobile press mold vc (m/min) = 200, fz (mm/t) = 0.1 ap (mm) = 0.1 0.5, ae (mm) = 0.1 0.5, wet Insert : LBH160-KH (PC2010) Holder: LBE160100S-S16C PC2010 Competitor P Carbon steel (SM53C) Workpiece CV Joint Cutting condition Designation Test result vc (m/min) = 200, fz (mm/t) = 0.25 ap (mm) = 0.5 2.0, ae (mm) = 0.5 1.0, dry Insert: LBH230-KF (PC2015) Holder: LBE230-HSKC63 PC2015 Competitor Application examples (PC2505/PC2510) 30 H Alloy tool steel (SKD11, heat treated) Cutting vc (m/min) = 80, fz (mm/t) = 0.5 condition ap (mm) = 0.3, ae (mm) = 10, dry Designation Insert : LPEW040210R-C (PC2505) Holder: HFMS1010HR-2S10 Test result PC2505 Competitor H05 Grades & Chip Breakers H Alloy tool steel (SKD11, heat treated) Cutting vc (m/min) = 30, fz (mm/t) = 0.4 condition ap (mm) = 0.7, ae (mm) = 40, dry Designation Insert : RPMW1204M0S1 (PC2510) Holder: FMRPS4050HRP-4M40 Test result PC2510 Competitor H10
