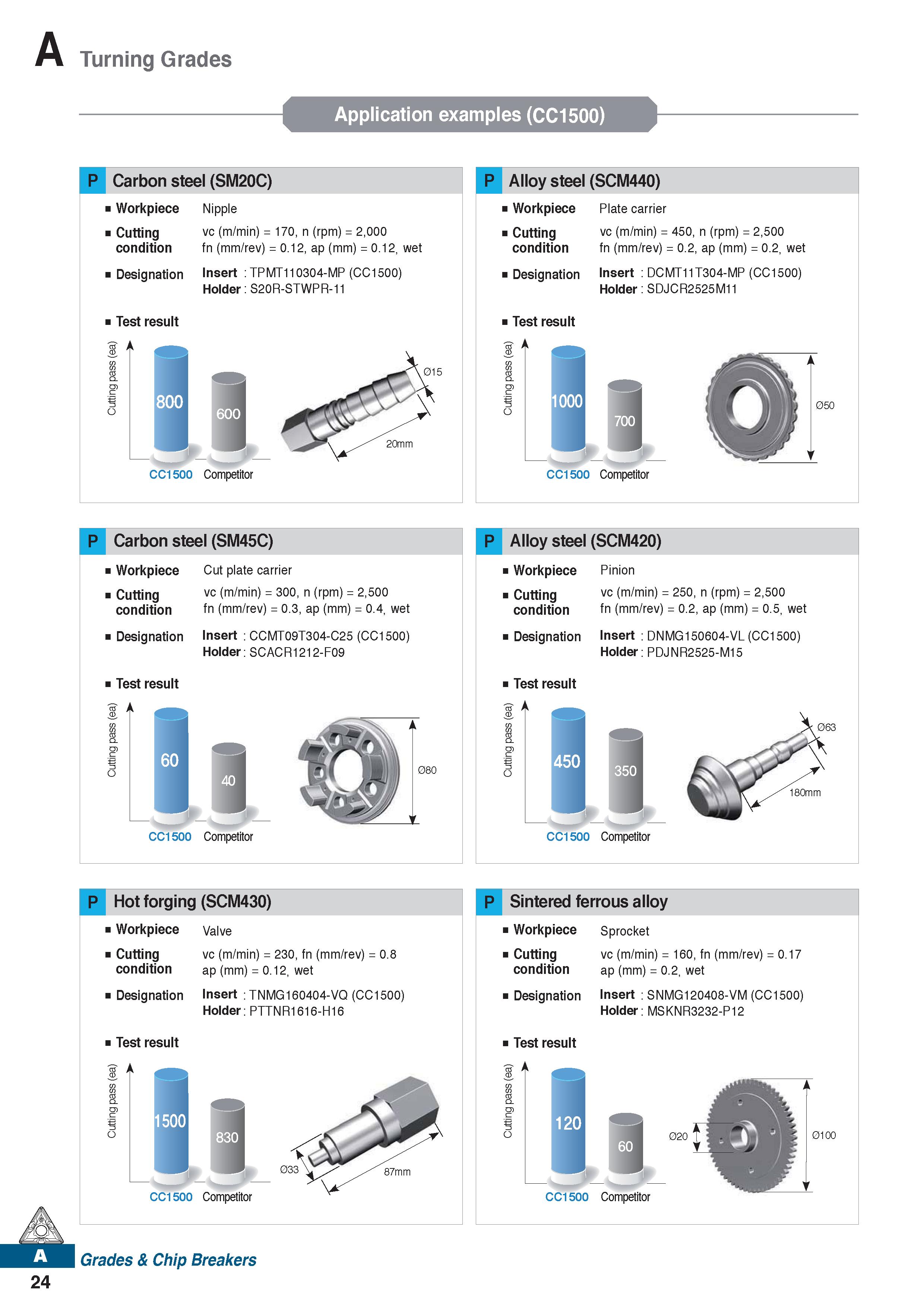

Turning Grades Application examples (CC1500) P Carbon steel (SM20C) Workpiece Cutting condition Designation Test result "S' A Nipple vc (m/min) = 170, n (rpm) = 2,000 fn (mm/rev) = 0.12, ap (mm) = 0.12, wet Insert : TPMT110304-MP (CC1500) Holder: S20R-STWPR-11 015 20mm CC1500 Competitor P Alloy steel (SCM440) Workpiece Plate carrier Cutting condition Designation Test result vc (m/min) = 450, n (rpm) = 2,500 fn (mm/rev) = 0.2, ap (mm) = 0.2, wet Insert : DCMT11T304-MP (CC1500) Holder: SDJCR2525M11 CC1500 Competitor 050 P Carbon steel (SM45C) Workpiece Cutting condition Designation Test result Is A Cut plate carrier vc (m/min) = 300, n (rpm) = 2,500 fn (mm/rev) = 0.3, ap (mm) = 0.4, wet Insert : CCMT09T304-C25 (CC1500) Holder: SCACR1212-F09 CC1500 Competitor 080 P Alloy steel (SCM420) Workpiece Pinion Cutting vc (m/min) = 250, n (rpm) = 2,500 condition fn (mm/rev) = 0.2, ap (mm) = 0.5, wet Designation Insert : DNMG150604-VL (CC1500) Holder: PDJNR2525-M15 Test result 063 180mm CC1500 Competitor P Hot forging (SCM430) Workpiece Valve Cutting vc (m/min) = 230, fn (mm/rev) = 0.8 condition ap (mm) = 0.12, wet Designation Insert : TNMG160404-VQ (CC1500) Holder: PTTNR1616-H16 Test result 87mm CC1500 Competitor Grades & Chip Breakers P Sintered ferrous alloy Workpiece Sprocket Cutting vc (m/min) = 160, fn (mm/rev) = 0.17 condition ap (mm) = 0.2, wet Designation Insert : SNMG120408-VM (CC1500) Holder: MSKNR3232-P12 Test result 0100 CC1500 Competitor 24
