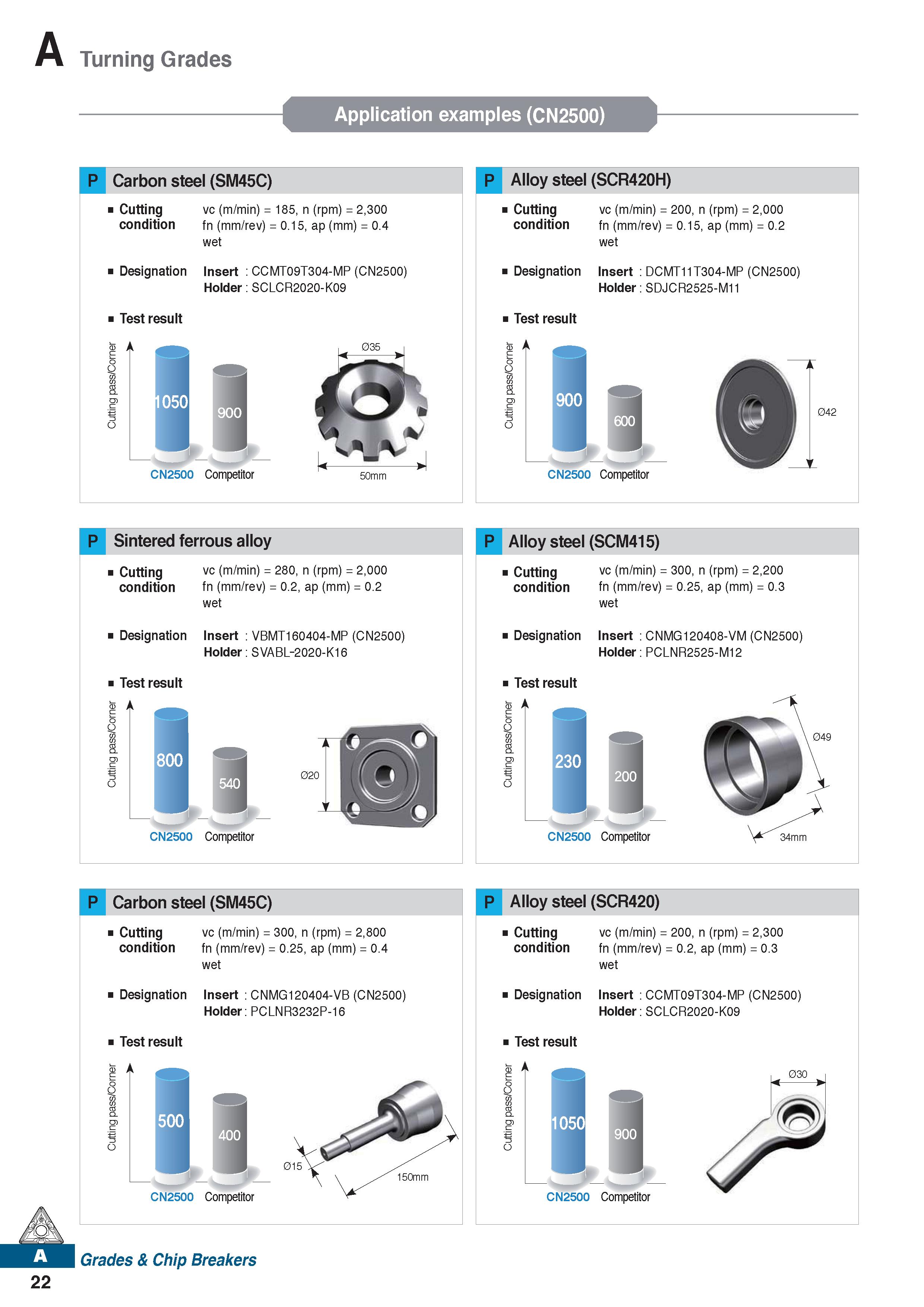

Turning Grades Application examples (CN2500) P Carbon steel (SM45C) Cutting vc (m/min) = 185, n (rpm) = 2,300 condition fn (mm/rev) = 0.15, ap (mm) = 0.4 wet Designation Insert : CCMT09T304-MP (CN2500) Holder: SCLCR2020-K09 Test result 035 CN2500 Competitor 50mm P Alloy steel (SCR420H) Cutting vc (m/min) = 200, n (rpm) = 2,000 condition fn (mm/rev) = 0.15, ap (mm) = 0.2 wet Designation Insert : DCMT11T304-MP (CN2500) Holder: SDJCR2525-M11 Test result CD A C CN2500 Competitor 042 P Sintered ferrous alloy Cutting vc (m/min) = 280, n (rpm) = 2,000 condition fn (mm/rev) = 0.2, ap (mm) = 0.2 wet Designation Insert : VBMT160404-MP (CN2500) Holder: SVABL-2020-K16 Test result CD A 020 CN2500 Competitor P Alloy steel (SCM415) Cutting vc (m/min) = 300, n (rpm) = 2,200 condition fn (mm/rev) = 0.25, ap (mm) = 0.3 wet Designation Insert : CNMG120408-VM (CN2500) Holder: PCLNR2525-M12 Test result CN2500 Competitor 049 34mm P Carbon steel (SM45C) Cutting vc (m/min) = 300, n (rpm) = 2,800 condition fn (mm/rev) = 0.25, ap (mm) = 0.4 wet Designation Insert : CNMG120404-VB (CN2500) Holder: PCLNR3232P-16 Test result 150mm CN2500 Competitor Grades & Chip Breakers P Alloy steel (SCR420) Cutting vc (m/min) = 200, n (rpm) = 2,300 condition fn (mm/rev) = 0.2, ap (mm) = 0.3 wet Designation Insert : CCMT09T304-MP (CN2500) Holder: SCLCR2020-K09 Test result CN2500 Competitor 22
