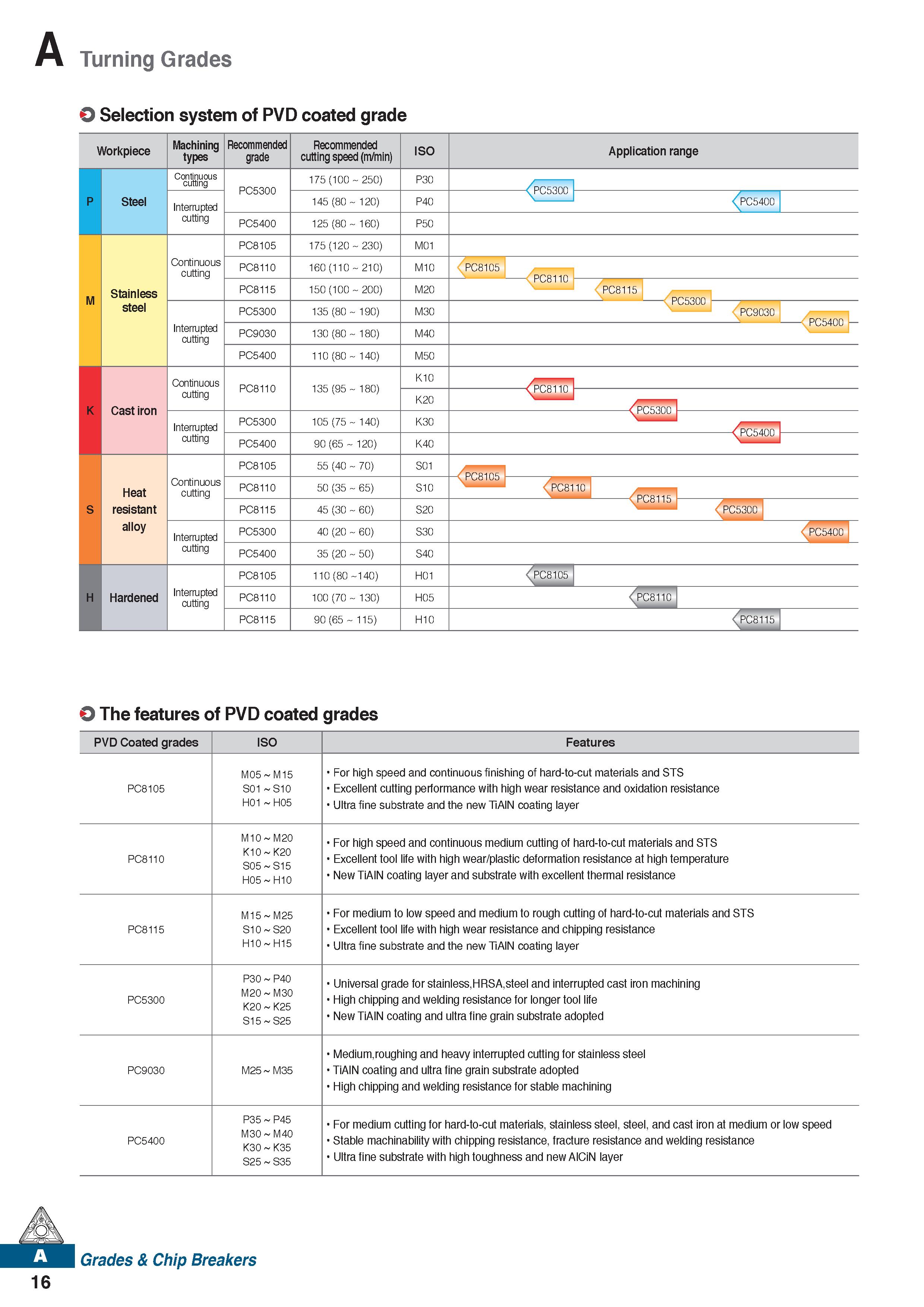

A Turning Grades O Selection system of PVD coated grade Workpiece Machining types Recommended grade Recommended cutting speed (m/min) ISO Application range Continuous cutting Steel PC5300 175 (100 250) P30 Interrupted cutting 145 (80 120) P40 PC5300 P PC5400 PC5400 125 (80 160) P50 PC8105 175 (120 230) M01 Continuous cutting PC8110 160 (110 210) M10 PC8105 Stainless steel PC8115 150 (100 200) M20 PC8110 PC8115 PC5300 135 (80 190) Interrupted cutting PC9030 130 (80 PC5400 110 (80 M30 PC5300 PC9030 80) PC5400 M40 40) M50 Continuous cutting PC8110 135 (95 80) K10 Cast iron K20 P PC8110 Interrupted cutting PC5300 105 (75 140) K30 P PC5300 PC5400 90 (65 120) K40 P PC5400 PC8105 55 (40 70) S01 Heat resistant alloy Continuous cutting PC8110 50 (35 65) S10 P PC8105 PC8110 PC8115 45 (30 60) S20 P PC8115 P PC5300 Interrupted cutting PC5300 40 (20 60) S30 J PC5400 PC5400 35 (20 50) S40 PC8105 110 (80 140) H01 Hardened Interrupted cutting P PC8105 PC8110 100 (70 130) H05 P PC8110 PC8115 90 (65 115) H10 P PC8115 P M K S H O The features of PVD coated grades PVD Coated grades ISO Features PC8105 M05 M15 S01 S10 H01 H05 For high speed and continuous finishing of hard-to-cut materials and STS Excellent cutting performance with high wear resistance and oxidation resistance Ultra fine substrate and the new TiAIN coating layer PC8110 M10 M20 K10 K20 S05 S15 H05 H10 For high speed and continuous medium cutting of hard-to-cut materials and STS Excellent tool life with high wear/plastic deformation resistance at high temperature New TiAlN coating layer and substrate with excellent thermal resistance PC8115 M15 M25 S10 S20 H10 H15 For medium to low speed and medium to rough cutting of hard-to-cut materials and STS Excellent tool life with high wear resistance and chipping resistance Ultra fine substrate and the new TiAIN coating layer PC5300 P30 P40 M20 M30 K20 K25 S15 S25 Universal grade for stainless,HRSA,steel and interrupted cast iron machining High chipping and welding resistance for longer tool life New TiAlN coating and ultra fine grain substrate adopted PC9030 M25 M35 Medium,roughing and heavy interrupted cutting for stainless steel TiAlN coating and ultra fine grain substrate adopted High chipping and welding resistance for stable machining PC5400 P35 P45 M30 M40 K30 K35 S25 S35 For medium cutting for hard-to-cut materials, stainless steel, steel, and cast iron at medium or low speed Stable machinability with chipping resistance, fracture resistance and welding resistance Ultra fine substrate with high toughness and new AlCiN layer Grades & Chip Breakers 16
