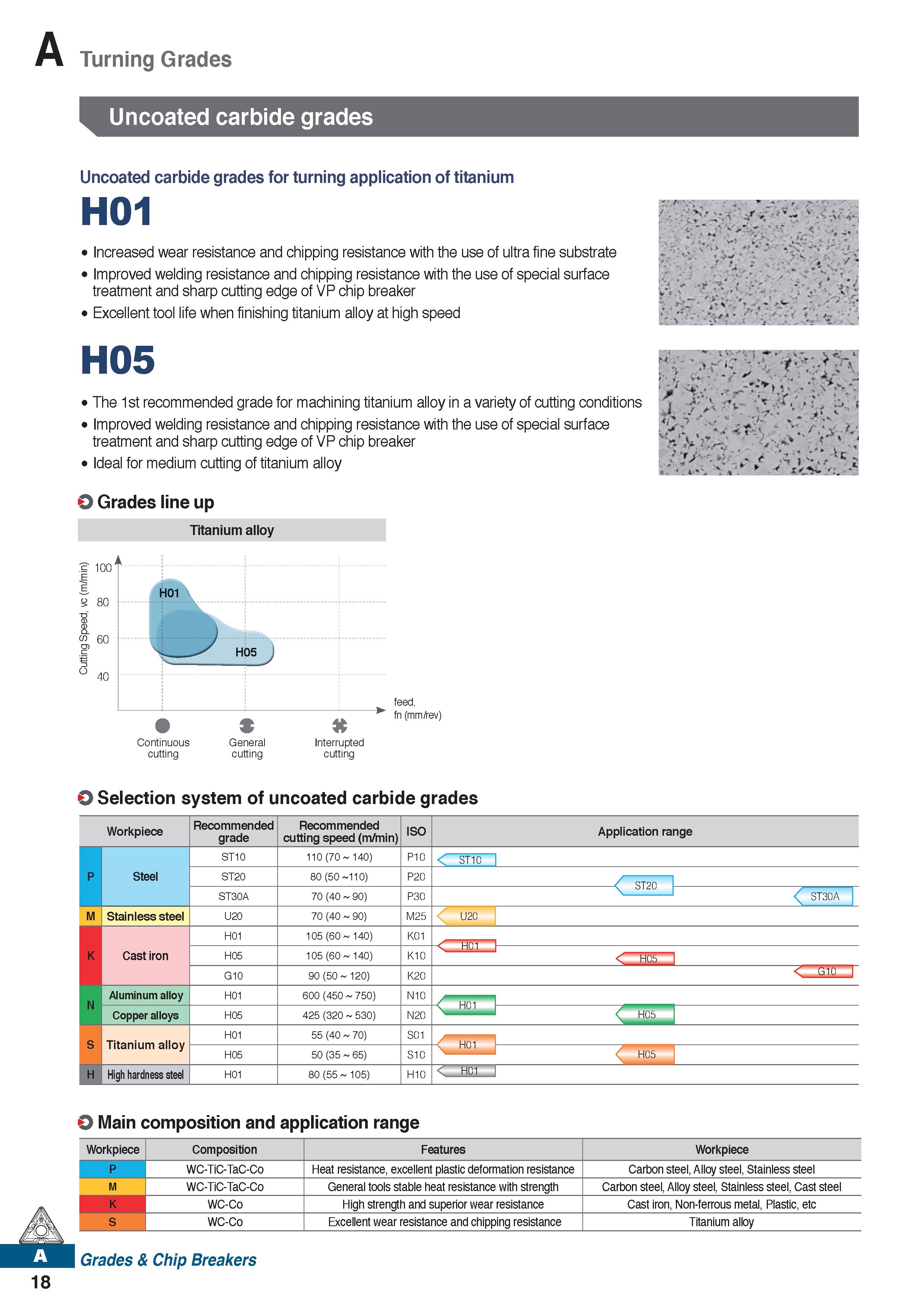

Turning Grades Uncoated carbide grades Uncoated carbide grades for turning application of titanium H01 Increased wear resistance and chipping resistance with the use of ultra fine substrate Improved welding resistance and chipping resistance with the use of special surface treatment and sharp cutting edge of VP chip breaker Excellent tool life when finishing titanium alloy at high speed H05 The 1st recommended grade for machining titanium alloy in a variety of cutting conditions Improved welding resistance and chipping resistance with the use of special surface treatment and sharp cutting edge of VP chip breaker Ideal for medium cutting of titanium alloy O Grades line up Titanium alloy S' 100 /m (m/ g 80 co 60 40 1H01 \ Continuous cutting s General cutting feed, fn (mm/rev) Interrupted cutting O Selection system of uncoated carbide grades Workpiece Recommended grade Recommended cutting speed (m/min) ISO Application range P Steel ST10 110 (70 140) P10 ST10 ST20 80 (50 110) P20 ST30A 70 (40 90) P30 S T CO o > M Stainless steel U20 70 (40 90) M25 U20 K N Cast iron H01 105 (60 140) K01 H05 105 (60 140) K10 H05 G10 90 (50 120) K20 G10 I Aluminum alloy H01 600 (450 750) N10 H01 Copper alloys H05 425 (320 530) N20 H05 S Titanium alloy H01 55 (40 70) S01 H05 50 (35 65) S10 H05 H High hardness steel H01 80 (55 105) H10 H01 O Main composition and application range Workpiece Composition Features Workpiece P WC-TiC-TaC-Co Heat resistance, excellent plastic deformation resistance Carbon steel, Alloy steel, Stainless steel M WC-TiC-TaC-Co General tools stable heat resistance with strength Carbon steel, Alloy steel, Stainless steel, Cast steel K WC-Co High strength and superior wear resistance Cast iron, Non-ferrous metal, Plastic, etc S WC-Co Excellent wear resistance and chipping resistance Titanium alloy Grades & Chip Breakers 18
