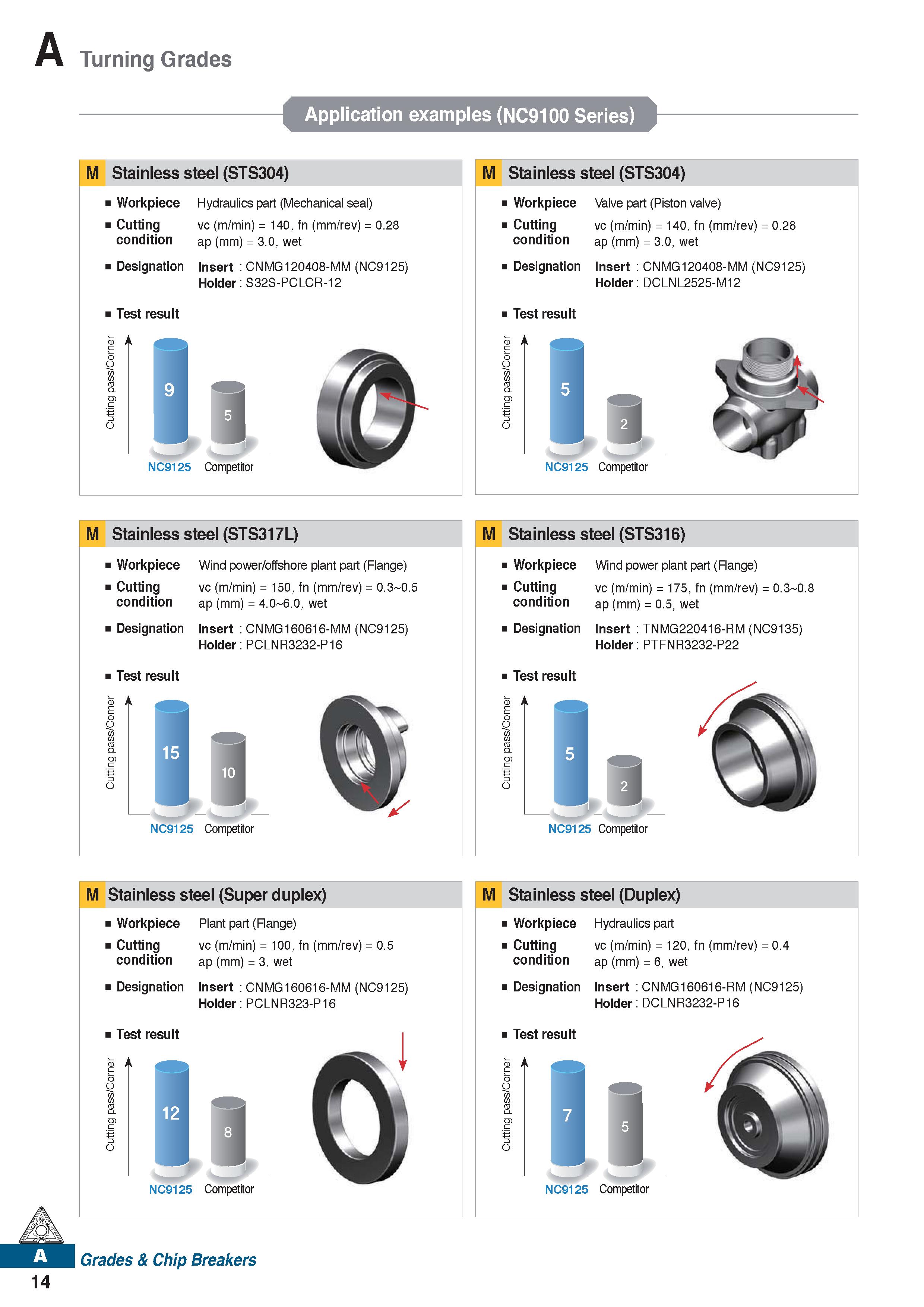

Turning Grades Application examples (NC9100 Series) M Stainless steel (STS304) Workpiece Cutting condition Designation Test result Hydraulics part (Mechanical seal) vc (m/min) = 140, fn (mm/rev) = 0.28 ap (mm) = 3.0, wet Insert : CNMG120408-MM (NC9125) Holder: S32S-PCLCR-12 II NC9125 Competitor M Stainless steel (STS304) Workpiece Valve part (Piston valve) Cutting condition Designation Test result vc (m/min) = 140, fn (mm/rev) = 0.28 ap (mm) = 3.0, wet Insert : CNMG120408-MM (NC9125) Holder: DCLNL2525-M12 NC9125 Competitor M Stainless steel (STS317L) Workpiece Cutting condition Designation Test result CD A Wind power/offshore plant part (Flange) vc (m/min) = 150, fn (mm/rev) = 0.3 0.5 ap (mm) = 4.0 6.0, wet Insert : CNMG160616-MM (NC9125) Holder: PCLNR3232-P16 NC9125 Competitor M Stainless steel (STS316) Workpiece Wind power plant part (Flange) Cutting condition Designation Test result vc (m/min) = 175, fn (mm/rev) = 0.3 0. ap (mm) = 0.5, wet Insert : TNMG220416-RM (NC9135) Holder: PTFNR3232-P22 NC9125 Competitor M Stainless steel (Super duplex) Workpiece Cutting condition Designation Test result Plant part (Flange) vc (m/min) = 100, fn (mm/rev) = 0.5 ap (mm) = 3, wet Insert : CNMG160616-MM (NC9125) Holder: PCLNR323-P16 M NC9125 Competitor Grades & Chip Breakers M Stainless steel (Duplex) Workpiece Cutting condition Designation Test result a) A Hydraulics part vc (m/min) = 120, fn (mm/rev) = 0.4 ap (mm) = 6, wet Insert : CNMG160616-RM (NC9125) Holder: DCLNR3232-P16 NC9125 Competitor 14
