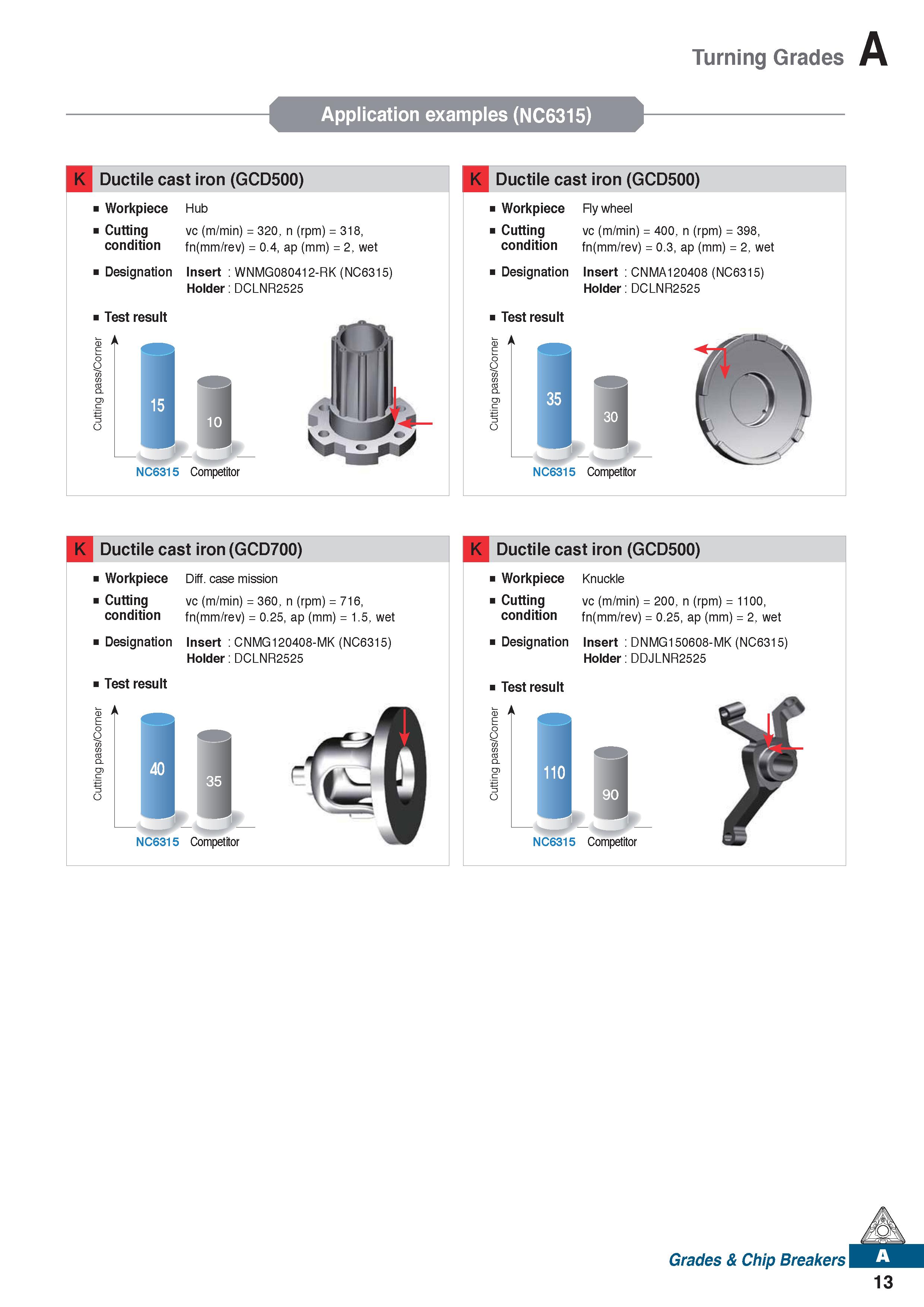

Turning Grades Application examples (NC6315) K Ductile cast iron (GCD500) Workpiece Hub Cutting vc (m/min) = 320, n (rpm) = 318, condition fn(mm/rev) = 0.4, ap (mm) = 2, wet Designation Insert : WNMG080412-RK (NC6315) Holder: DCLNR2525 Test result NC6315 Competitor K Ductile cast iron (GCD500) Workpiece Fly wheel Cutting vc (m/min) = 400, n (rpm) = 398, condition fn(mm/rev) = 0.3, ap (mm) = 2, wet Designation Insert : CNMA120408 (NC6315) Holder: DCLNR2525 Test result NC6315 Competitor K Ductile cast iron (GCD700) Workpiece Diff. case mission Cutting vc (m/min) = 360, n (rpm) = 716, condition fn(mm/rev) = 0.25, ap (mm) = 1.5, wet Designation Insert : CNMG120408-MK (NC6315) Holder: DCLNR2525 Test result NC6315 Competitor K Ductile cast iron (GCD500) Workpiece Knuckle Cutting condition vc (m/min) = 200, n (rpm) = 1100, fn(mm/rev) = 0.25, ap (mm) = 2, wet Designation Insert : DNMG150608-MK (NC6315) Holder: DDJLNR2525 Test result NC6315 Competitor Grades & Chip Breakers 13
