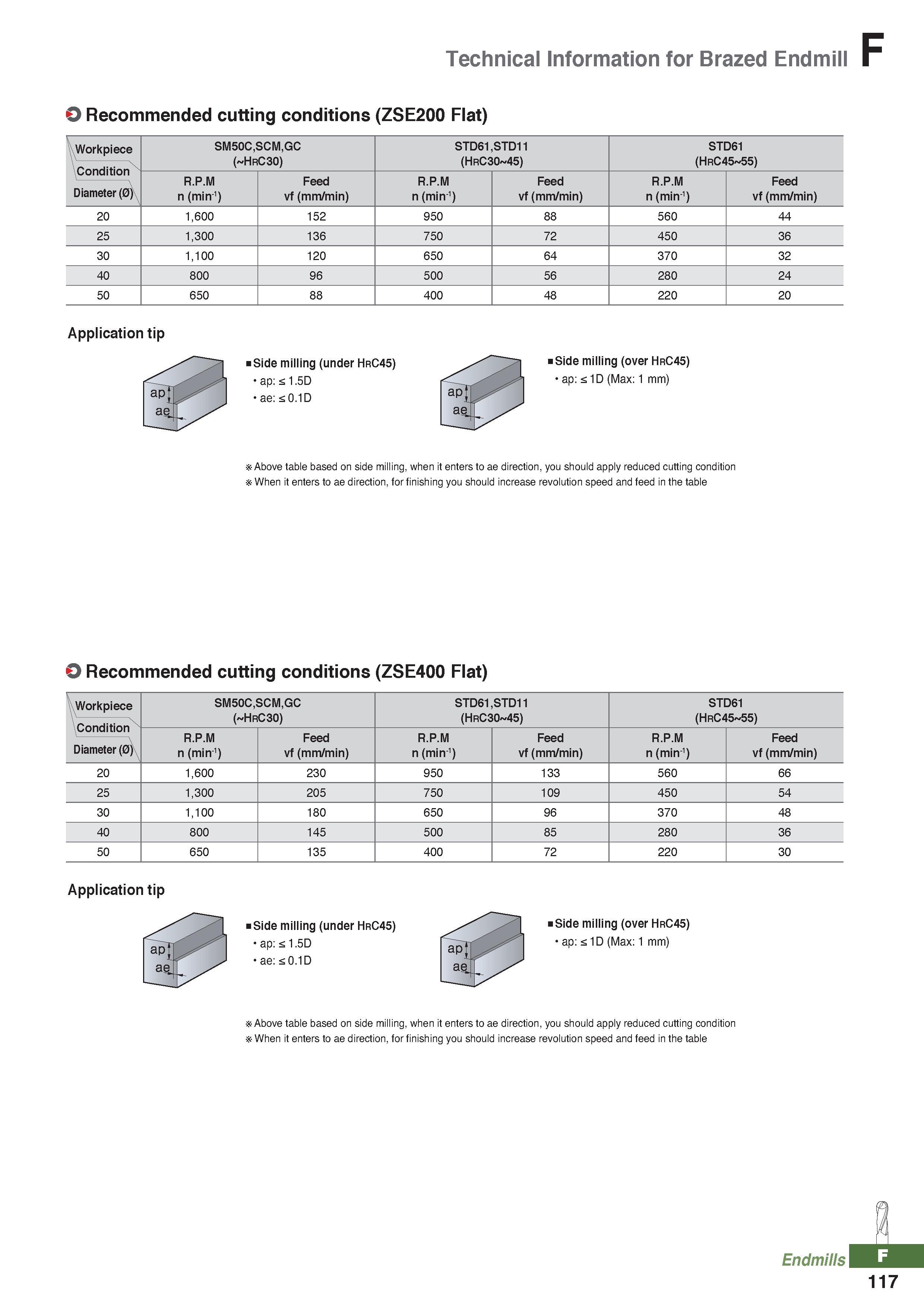

Technical Information for Brazed Endmill O Recommended cutting conditions (ZSE200 Flat) Workpiece Condition SM50C,SCM,GC ( HrC30) STD61,STD11 (HrC30 45) STD61 (HrC45 55) R.P.M Feed R.P.M Feed R.P.M Feed Diameter (0) n (min-1) vf (mm/min) n (min-1) vf (mm/min) n (min-1) vf (mm/min) 20 1,600 152 950 88 560 44 25 1,300 136 750 72 450 36 30 1,100 120 650 64 370 32 40 800 96 500 56 280 24 50 650 88 400 48 220 20 Application tip Side milling (under HrC45) "Side milling (over HrC45) ap:s1.5D I ae:s0.1D -ap:s1D (Max: 1 mm) ap ap a . Above table based on side milling, when it enters to ae direction, you should apply reduced cutting condition xWhen it enters to ae direction, for finishing you should increase revolution speed and feed in the table O Recommended cutting conditions (ZSE400 Flat) Workpiece Condition SM50C,SCM,GC ( HrC30) STD61,STD11 (HrC30 45) STD61 (HrC45 55) R.P.M Feed R.P.M Feed R.P.M Feed Diameter (0) n (min-1) vf (mm/min) n (min-1) vf (mm/min) n (min-1) vf (mm/min) 20 1,600 230 950 133 560 66 25 1,300 205 750 109 450 54 30 1,100 180 650 96 370 48 40 800 145 500 85 280 36 50 650 135 400 72 220 30 Application tip ap: s1.5D a T / y ae:s0.1D a T Side milling (over HrC45) ap:s1D (Max: 1 mm) Above table based on side milling, when it enters to ae direction, you should apply reduced cutting condition xWhen it enters to ae direction, for finishing you should increase revolution speed and feed in the table Endmill 117
