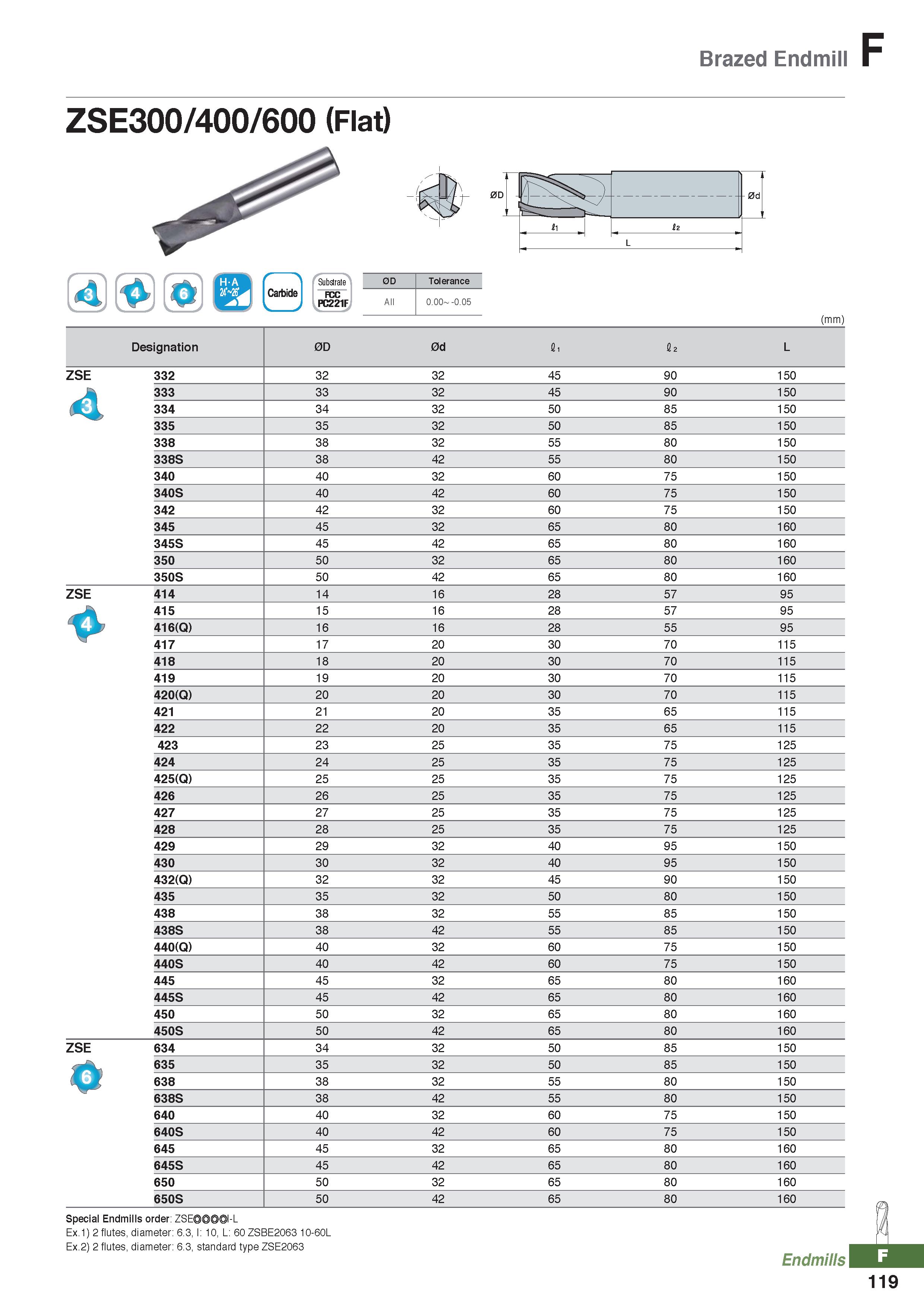

Brazed Endmill ZSE300/400/600 (Flat) - 0d ’f 11 &2 L Carbide Substrate FCC 0D Tolerance All O.OO- -O.O5 Special Endmills order: ZSE 0 l-L Ex.1) 2 flutes, diameter: 6.3, l: 1O, L: 60 ZSBE2O63 1O-6OL Ex.2) 2 flutes, diameter: 6.3, standard type ZSE2O63 (mm) Designation 0D 0d a, 1 2 L ZSE 332 32 32 45 90 15O 4 333 33 32 45 90 15O 334 34 32 50 85 15O 335 35 32 50 85 15O 338 38 32 55 80 15O 338S 38 42 55 80 15O 340 40 32 60 75 15O 340S 40 42 60 75 15O 342 42 32 60 75 15O 345 45 32 65 80 16O 345S 45 42 65 80 16O 350 50 32 65 80 16O 350S 50 42 65 80 16O ZSE 414 14 16 28 57 95 Jk 415 15 16 28 57 95 y> 416(Q) 16 16 28 55 95 417 17 20 30 70 115 418 18 20 30 70 115 419 19 20 30 70 115 420(Q) 20 20 30 70 115 421 21 20 35 65 115 422 22 20 35 65 115 423 23 25 35 75 125 424 24 25 35 75 125 425(Q) 25 25 35 75 125 426 26 25 35 75 125 427 27 25 35 75 125 428 28 25 35 75 125 429 29 32 40 95 15O 430 30 32 40 95 15O 432(Q) 32 32 45 90 15O 435 35 32 50 80 15O 438 38 32 55 85 15O 438S 38 42 55 85 15O 440(Q) 40 32 60 75 15O 440S 40 42 60 75 15O 445 45 32 65 80 16O 445S 45 42 65 80 16O 450 50 32 65 80 16O 450S 50 42 65 80 16O ZSE 634 34 32 50 85 15O 635 35 32 50 85 15O 638 38 32 55 80 15O 638S 38 42 55 80 15O 640 40 32 60 75 15O 640S 40 42 60 75 15O 645 45 32 65 80 16O 645S 45 42 65 80 16O 650 50 32 65 80 16O 650S 50 42 65 80 16O Endmills J. 119
