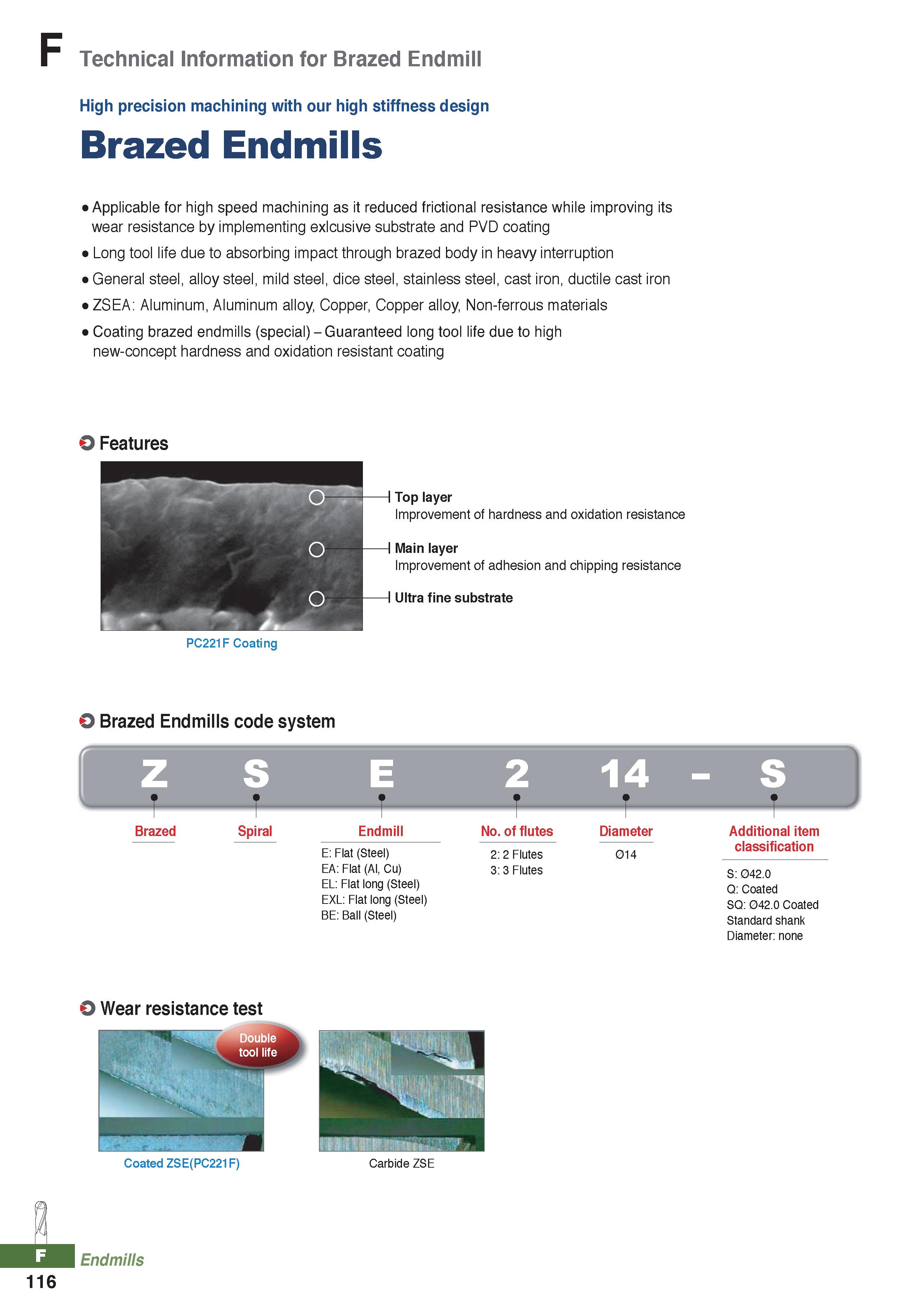

Technical Information for Brazed Endmill High precision machining with our high stiffness design Brazed Endmills Applicable for high speed machining as it reduced frictional resistance while improving its wear resistance by implementing exlcusive substrate and PVD coating Long tool life due to absorbing impact through brazed body in heavy interruption General steel, alloy steel, mild steel, dice steel, stainless steel, cast iron, ductile cast iron ZSEA: Aluminum, Aluminum alloy, Copper, Copper alloy, Non-ferrous materials Coating brazed endmills (special) - Guaranteed long tool life due to high new-concept hardness and oxidation resistant coating O Features PC221F Coating Top layer Improvement of hardness and oxidation resistance Main layer Improvement of adhesion and chipping resistance Ultra fine substrate O Brazed Endmills code system Z S 2 14 - S Brazed Spiral Endmill E: Flat (Steel) EA: Flat (Al, Cu) EL: Flat long (Steel) EXL: Flat long (Steel) BE: Ball (Steel) No. of flutes 2: 2 Flutes 3: 3 Flutes Diameter 014 Additional item classification S: 042.0 Q: Coated SQ: 042.0 Coated Standard shank Diameter: none O Wear resistance test Coated ZSE(PC221F) J. Endmills 116 Carbide ZSE
