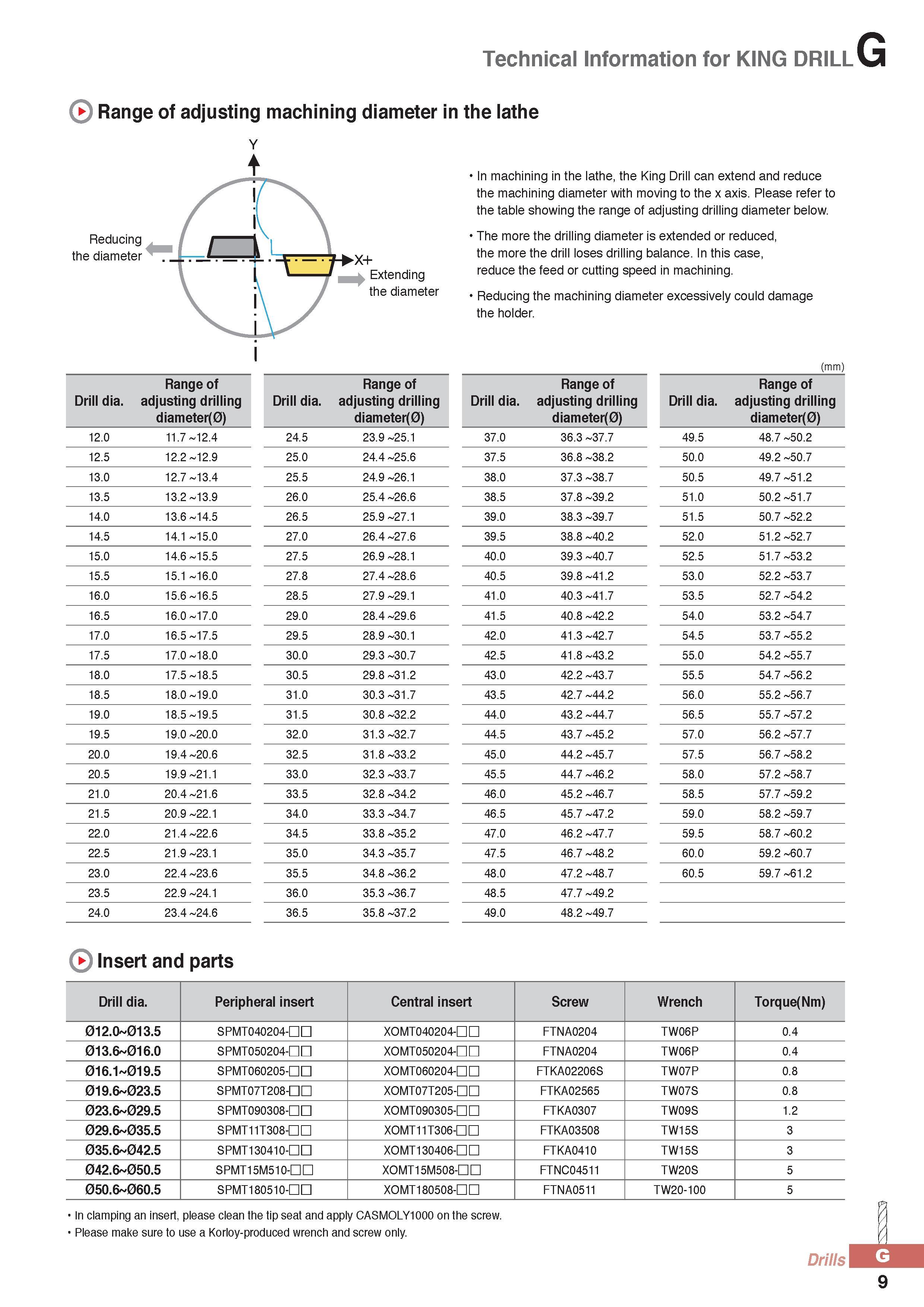

Technical Information for KING DRILL Range of adjusting machining diameter in the lathe Y I In machining in the lathe, the King Drill can extend and reduce the machining diameter with moving to the x axis. Please refer to the table showing the range of adjusting drilling diameter below. The more the drilling diameter is extended or reduced, the more the drill loses drilling balance. In this case, reduce the feed or cutting speed in machining. Reducing the machining diameter excessively could damage the holder. (mm) Range of Range of Range of Range of Drill dia. adjusting drilling Drill dia. adjusting drilling Drill dia. adjusting drilling Drill dia. adjusting drilling diameter(0) diameter(0) diameter(0) diameter(0) 12.0 11.7 12.4 24.5 23.9 25.1 12.5 12.2 12.9 25.0 24.4 25.6 13.0 12.7 13.4 25.5 24.9 26.1 13.5 13.2 13.9 26.0 25.4 26.6 14.0 13.6 14.5 26.5 25.9 27.1 14.5 14.1 15.0 27.0 26.4 27.6 15.0 14.6 15.5 27.5 26.9 28.1 15.5 15.1 16.0 27.8 27.4 28.6 16.0 15.6 16.5 28.5 27.9 29.1 16.5 16.0 17.0 29.0 28.4 29.6 17.0 16.5 17.5 29.5 28.9 30.1 17.5 17.0 18.0 30.0 29.3 30.7 18.0 17.5 18.5 30.5 29.8 31.2 18.5 18.0 19.0 31.0 30.3 31.7 19.0 18.5 19.5 31.5 30.8 32.2 19.5 19.0 20.0 32.0 31.3 32.7 20.0 19.4 20.6 32.5 31.8 33.2 20.5 19.9 21.1 33.0 32.3 33.7 21.0 20.4 21.6 33.5 32.8 34.2 21.5 20.9 22.1 34.0 33.3 34.7 22.0 21.4 22.6 34.5 33.8 35.2 22.5 21.9 23.1 35.0 34.3 35.7 23.0 22.4 23.6 35.5 34.8 36.2 23.5 22.9 24.1 36.0 35.3 36.7 24.0 23.4 24.6 36.5 35.8 37.2 37.0 36.3 37.7 49.5 48.7 50.2 37.5 36.8 38.2 50.0 49.2 50.7 38.0 37.3 38.7 50.5 49.7 51.2 38.5 37.8 39.2 51.0 50.2 51.7 39.0 38.3 39.7 51.5 50.7 52.2 39.5 38.8 40.2 52.0 51.2 52.7 40.0 39.3 40.7 52.5 51.7 53.2 40.5 39.8 41.2 53.0 52.2 53.7 41.0 40.3 41.7 53.5 52.7 54.2 41.5 40.8 42.2 54.0 53.2 54.7 42.0 41.3 42.7 54.5 53.7 55.2 42.5 41.8 43.2 55.0 54.2 55.7 43.0 42.2 43.7 55.5 54.7 56.2 43.5 42.7 44.2 56.0 55.2 56.7 44.0 43.2 44.7 56.5 55.7 57.2 44.5 43.7 45.2 57.0 56.2 57.7 45.0 44.2 45.7 57.5 56.7 58.2 45.5 44.7 46.2 58.0 57.2 58.7 46.0 45.2 46.7 58.5 57.7 59.2 46.5 45.7 47.2 59.0 58.2 59.7 47.0 46.2 47.7 59.5 58.7 60.2 47.5 46.7 48.2 60.0 59.2 60.7 48.0 47.2 48.7 60.5 59.7 61.2 48.5 47.7 49.2 49.0 48.2 49.7 Insert and parts Drill dia. Peripheral insert Central insert Screw Wrench Torque(Nm) 012.0 013.5 SPMT040204-Dn X0MT040204-Dn FTNA0204 TW06P 0.4 013.6 016.0 SPMT050204-Dn X0MT050204-nn FTNA0204 TW06P 0.4 016.1 019.5 SPMT060205-DD X0MT060204-DD FTKA02206S TW07P 0.8 019.6 023.5 SPMT07T208-DD X0MT07T205-DD FTKA02565 TW07S 0.8 023.6 029.5 SPMT090308-DD X0MT090305-DD FTKA0307 TW09S 1.2 029.6 035.5 SPMT11T308-DD X0MT11T306-DD FTKA03508 TW15S 3 035.6 042.5 SPMT130410-DD X0MT130406-D FTKA0410 TW15S 3 042.6 050.5 SPMT15M510-DD X0MT15M508-D FTNC04511 TW20S 5 050.6 060.5 SPMT180510-DD X0MT180508-D FTNA0511 TW20-100 5 J. In clamping an insert, please clean the tip seat and apply CASMOLYIOOO on the screw. Please make sure to use a Korloy-produced wrench and screw only. Drills 9
