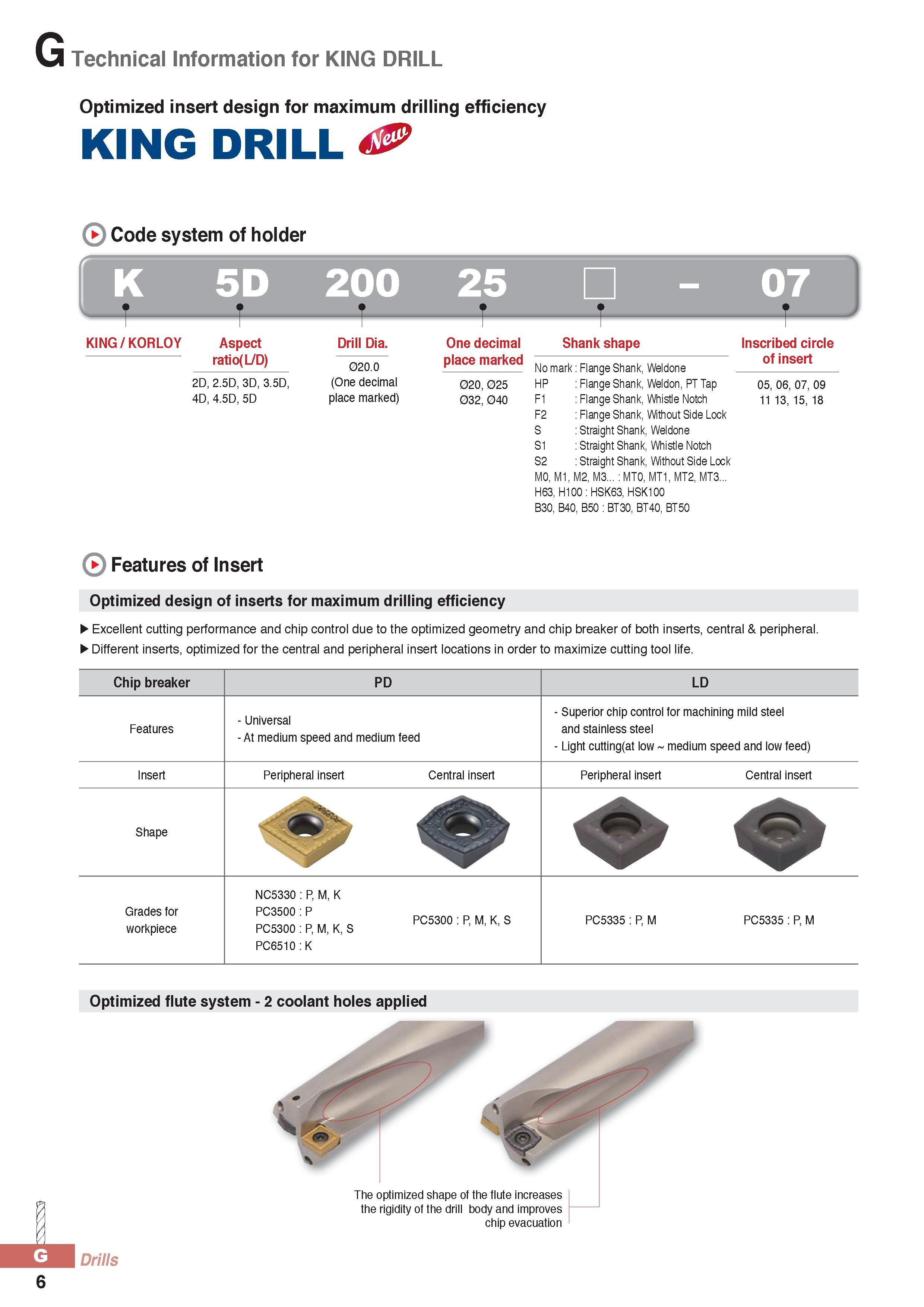

G Technical Information for KING DRILL Optimized insert design for maximum drilling efficiency KING DRILL & Code system of holder K 5D 200 25 07 -1 KING / KORLOY -1 Aspect ratio(L/D) 2D, 2.5D, 3D, 3.5D, 4D, 4.5D, 5D -1 Drill Dia. 020.0 (One decimal place marked) -1 One decimal place marked 020, 025 032, 040 -1 - Shank shape Flange Shank, Weldone Flange Shank, Weldon, PT Tap Flange Shank, Whistle Notch Flange Shank, Without Side Lock Straight Shank, Weldone Straight Shank, Whistle Notch Straight Shank, Without Side Lock M2, M3 MT0, MT1, MT2, MT3 No mark HP F1 F2 S 51 52 M0, M1, H63, H100 HSK63, HSK100 B30, B40, B50 BT30, BT40, BT50 Inscribed circle of insert 05, 06, 07, 09 11 13, 15, 18 Features of Insert Optimized design of inserts for maximum drilling efficiency Excellent cutting performance and chip control due to the optimized geometry and chip breaker of both inserts, central & peripheral. Different inserts, optimized for the central and peripheral insert locations in order to maximize cutting tool life. Chip breaker PD LD Features - Universal - At medium speed and medium feed - Superior chip control for machining mild steel and stainless steel - Light cutting(at low medium speed and low feed) Insert Peripheral insert Central insert Peripheral insert Central insert Shape Grades for workpiece NC5330 P, M, K PC3500:P PC5300 P, M, K, S PC5300 P, M, K, S PC6510:K PC5335 P, M PC5335 P, M Optimized flute system - 2 coolant holes applied .1 The optimized shape of the flute increases the rigidity of the drill body and improves chip evacuation Drills 6
