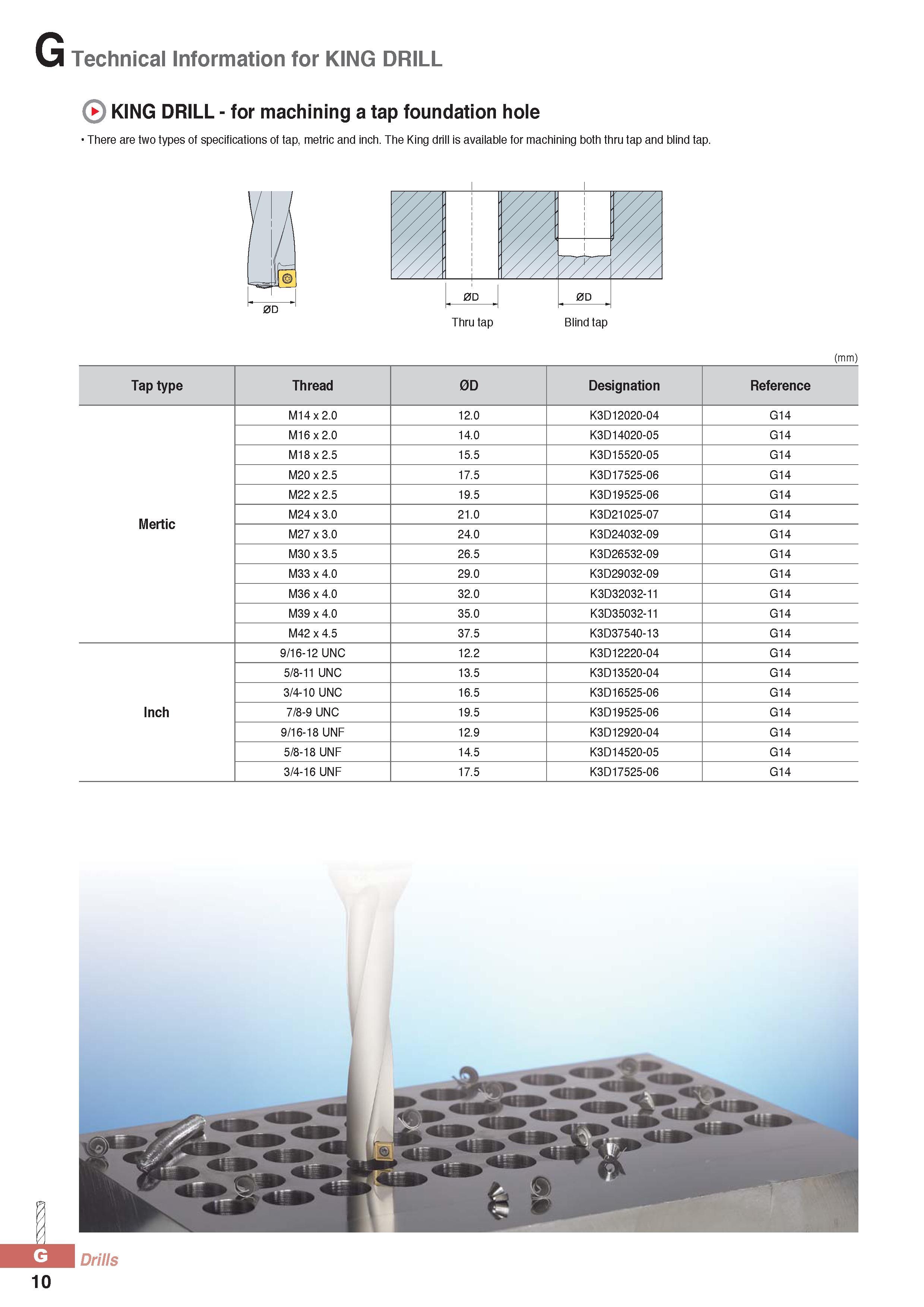

Technical Information for KING DRILL KING DRILL - for machining a tap foundation hole There are two types of specifications of tap, metric and inch. The King drill is available for machining both thru tap and blind tap. -4- fl 0D 0D Thru tap Blind tap (mm) Tap type Thread 0D Designation Reference M14 x 2.0 12.0 K3D12020-04 G14 M16 x 2.0 14.0 K3D14020-05 G14 M18 x 2.5 15.5 K3D15520-05 G14 M20 x 2.5 17.5 K3D17525-06 G14 M22 x 2.5 19.5 K3D19525-06 G14 Mertic M24 x 3.0 21.0 K3D21025-07 G14 M27 x 3.0 24.0 K3D24032-09 G14 M30 x 3.5 26.5 K3D26532-09 G14 M33 x 4.0 29.0 K3D29032-09 G14 M36 x 4.0 32.0 K3D32032-11 G14 M39 x 4.0 35.0 K3D35032-11 G14 M42 x 4.5 37.5 K3D37540-13 G14 9/16-12 UNC 12.2 K3D12220-04 G14 5/8-11 UNC 13.5 K3D13520-04 G14 3/4-10 UNC 16.5 K3D16525-06 G14 Inch 7/8-9 UNC 19.5 K3D19525-06 G14 9/16-18 UNF 12.9 K3D12920-04 G14 5/8-18 UNF 14.5 K3D14520-05 G14 3/4-16 UNF 17.5 K3D17525-06 G14 I J 10
