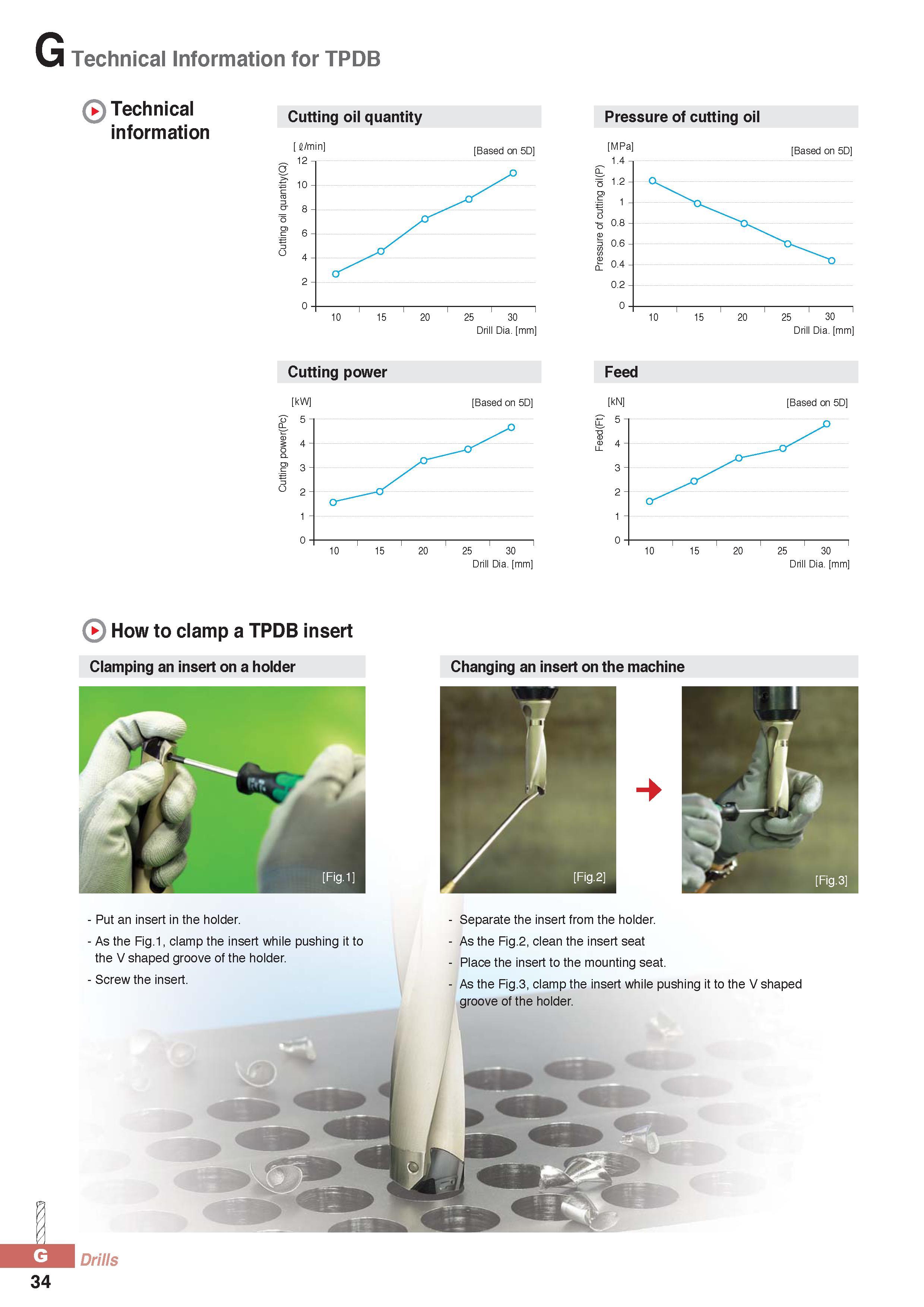

Technical Information for TPDB Technical information Cutting oil quantity fi/min Based on 5D Pressure of cutting oil MPa Based on 5D Drill Dia. mm Cutting power kW Based on 5D Feed kN Based on 5D Drill Dia. mm Drill Dia. mm How to clamp a TPDB insert Clamping an insert on a holder - Put an insert in the holder. - As the Fig.1, clamp the insert while pushing it to the V shaped groove of the holder. - Screw the insert. .1 Drills Changing an insert on the machine / / - HHigEH Separate the insert from the holder. As the Fig.2, clean the insert seat Place the insert to the mounting seat. As the Fig.3, clamp the insert while pushing it to the V shaped groove of the holder. 34
