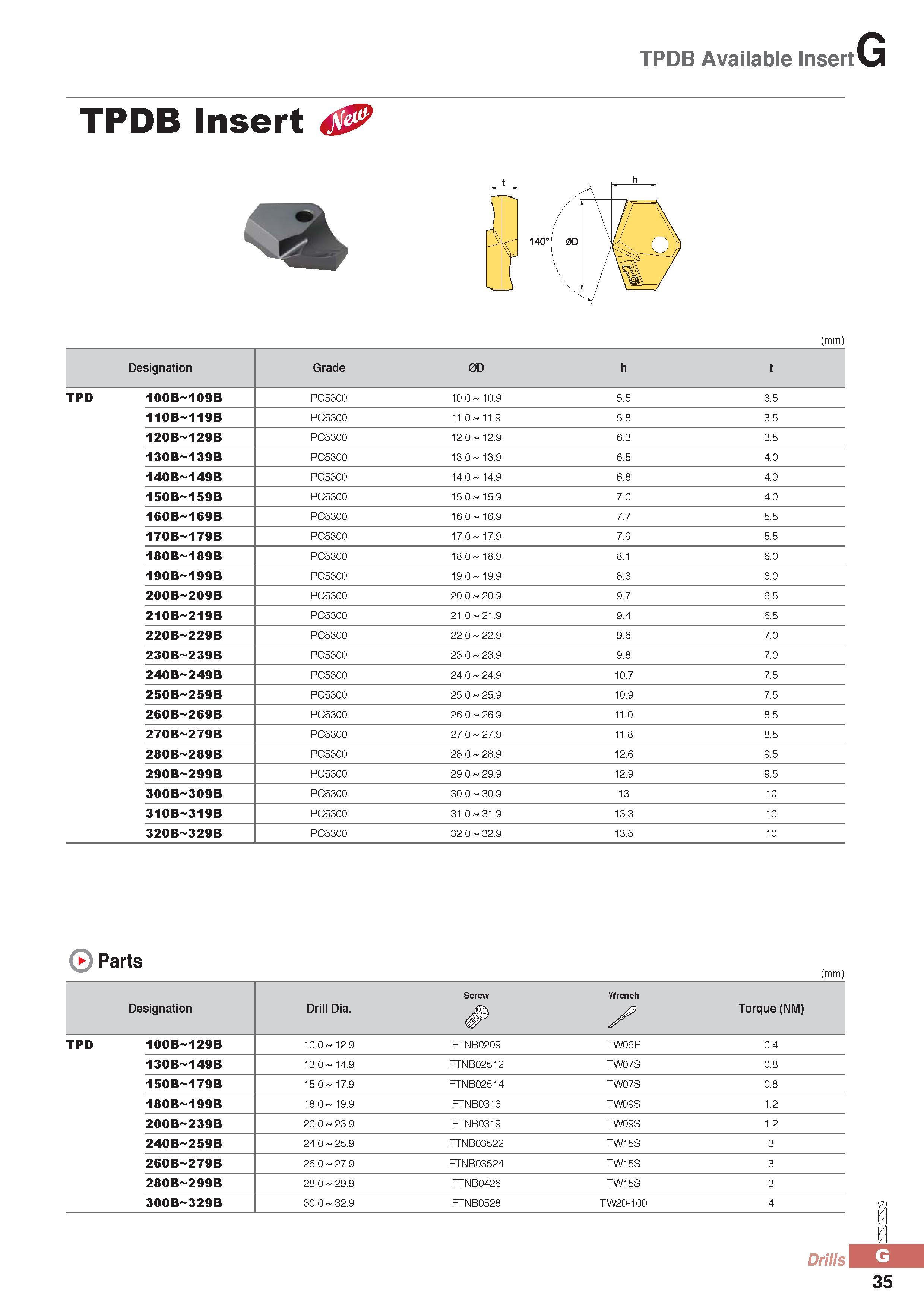

TPDB Available Insert TPDB Insert (mm) Designation Grade 0D h t TPD 100B 109B PC5300 10.0 - 10.9 5.5 3.5 110B 119B PC5300 11.0 - 11.9 5.8 3.5 120B 129B PC5300 12.0 - 12.9 6.3 3.5 130B 139B PC5300 13.0 - 13.9 6.5 4.0 140B 149B PC5300 14.0 - 14.9 6.8 4.0 150B 159B PC5300 15.0 - 15.9 7.0 4.0 160B 169B PC5300 16.0 - 16.9 7.7 5.5 170B 179B PC5300 17.0 - 17.9 7.9 5.5 180B 189B PC5300 18.0 - 18.9 8.1 6.0 190B 199B PC5300 19.0 - 19.9 8.3 6.0 200B 209B PC5300 20.0 - 20.9 9.7 6.5 210B 219B PC5300 21.0 - 21.9 9.4 6.5 220B 229B PC5300 22.0 - 22.9 9.6 7.0 230B 239B PC5300 23.0 - 23.9 9.8 7.0 240B 249B PC5300 24.0 - 24.9 10.7 7.5 250B 259B PC5300 25.0 - 25.9 10.9 7.5 260B 269B PC5300 26.0 - 26.9 11.0 8.5 270B 279B PC5300 27.0 - 27.9 11.8 8.5 280B 289B PC5300 28.0 - 28.9 12.6 9.5 290B 299B PC5300 29.0 - 29.9 12.9 9.5 300B 309B PC5300 30.0 - 30.9 13 10 310B 319B PC5300 31.0 - 31.9 13.3 10 320B 329B PC5300 32.0 - 32.9 13.5 10 Parts (mm) Designation Drill Dia. Screw Wrench Torque (NM) TPD 100B 129B 10.0 - 12.9 FTNB0209 TW06P 0.4 130B 149B 13.0 - 14.9 FTNB02512 TW07S 0.8 150B 179B 15.0 - 17.9 FTNB02514 TW07S 0.8 180B 199B 18.0 - 19.9 FTNB0316 TW09S 1.2 200B 239B 20.0 - 23.9 FTNB0319 TW09S 1.2 240B 259B 24.0 - 25.9 FTNB03522 TW15S 3 260B 279B 26.0 - 27.9 FTNB03524 TW15S 3 280B 299B 28.0 - 29.9 FTNB0426 TW15S 3 300B 329B 30.0 - 32.9 FTNB0528 TW20-100 4 Drills J. 35
