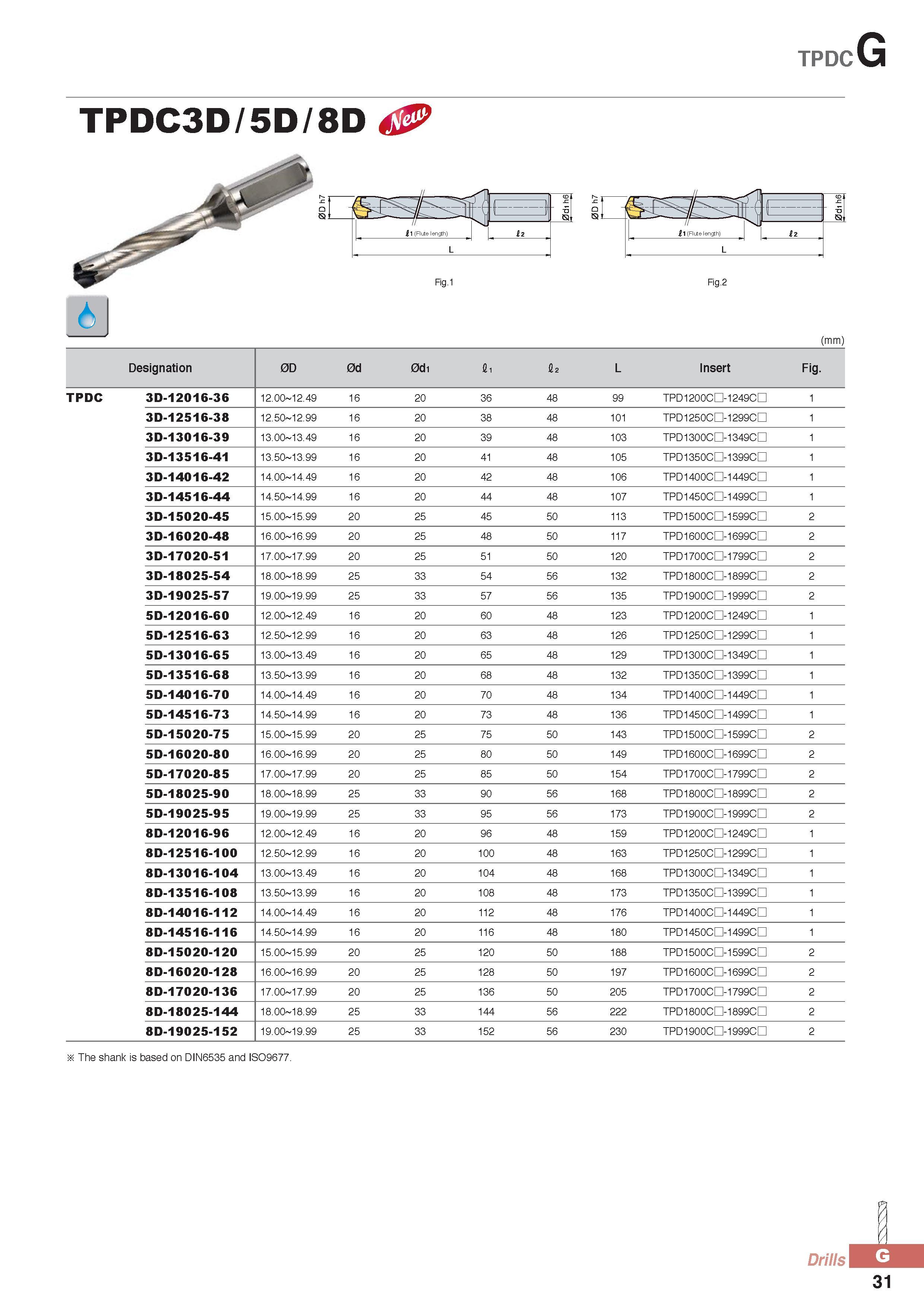

tpdcG TPDC3D/5D/8D & 4 4 SSf f 1 n f l<4J i 1 (Flute length) l 2 L 'C. r%. i d 1 f n ft i'vJI 11 (Flute length) 1 u L Fig.1 Fig.2 (mm) Designation 0D 0d 0d1 fii I2 L Insert Fig. TPDC 3D-12016-36 12.00 12.49 16 20 36 48 99 TPD1200CD-1249CD 1 3D-12516-38 12.50 12.99 16 20 38 48 101 TPD1250CD-1299CD 1 3D-13016-39 13.00 13.49 16 20 39 48 103 TPD1300CD-1349CD 1 3D-13516-41 13.50 13.99 16 20 41 48 105 TPD1350CD-1399CD 1 3D-14016-42 14.00 14.49 16 20 42 48 106 TPD1400C D-1449C 1 3D-14516-44 14.50 14.99 16 20 44 48 107 TPD1450CD-1499CD 1 3D-15020-45 15.00 15.99 20 25 45 50 113 TPD1500CD-1599CD 2 3D-16020-48 16.00 16.99 20 25 48 50 117 TPD1600CD-1699CD 2 3D-17020-51 17.00 17.99 20 25 51 50 120 TPD1700CD-1799CD 2 3D-18025-54 18.00 18.99 25 33 54 56 132 TPD1800CD-1899CD 2 3D-19025-57 19.00 19.99 25 33 57 56 135 TPD1900CD-1999CD 2 5D-12016-60 12.00 12.49 16 20 60 48 123 TPD1200CD-1249CD 1 5D-12516-63 12.50 12.99 16 20 63 48 126 TPD1250CD-1299CD 1 5D-13016-65 13.00 13.49 16 20 65 48 129 TPD1300CD-1349CD 1 5D-13516-68 13.50 13.99 16 20 68 48 132 TPD1350CD-1399CD 1 5D-14016-70 14.00 14.49 16 20 70 48 134 TPD1400C D-1449C 1 5D-14516-73 14.50 14.99 16 20 73 48 136 TPD1450CD-1499CD 1 5D-15020-75 15.00 15.99 20 25 75 50 143 TPD1500CD-1599CD 2 5D-16020-80 16.00 16.99 20 25 80 50 149 TPD1600CD-1699CD 2 5D-17020-85 17.00 17.99 20 25 85 50 154 TPD1700CD-1799CD 2 5D-18025-90 18.00 18.99 25 33 90 56 168 TPD1800CD-1899CD 2 5D-19025-95 19.00 19.99 25 33 95 56 173 TPD1900CD-1999CD 2 8D-12016-96 12.00 12.49 16 20 96 48 159 TPD1200CD-1249CD 1 8D-12516-100 12.50 12.99 16 20 100 48 163 TPD1250CD-1299CD 1 8D-13016-104 13.00 13.49 16 20 104 48 168 TPD1300CD-1349CD 1 8D-13516-108 13.50 13.99 16 20 108 48 173 TPD1350CD-1399CD 1 8D-14016-112 14.00 14.49 16 20 112 48 176 TPD1400C D-1449C 1 8D-14516-116 14.50 14.99 16 20 116 48 180 TPD1450CD-1499CD 1 8D-15020-120 15.00 15.99 20 25 120 50 188 TPD1500CD-1599CD 2 8D-16020-128 16.00 16.99 20 25 128 50 197 TPD1600CD-1699CD 2 8D-17020-136 17.00 17.99 20 25 136 50 205 TPD1700CD-1799CD 2 8D-18025-144 18.00 18.99 25 33 144 56 222 TPD1800CD-1899CD 2 8D-19025-152 19.00 19.99 25 33 152 56 230 TPD1900CD-1999CD 2 The shank is based on DIN6535 and ISO9677. Drills J. 31
