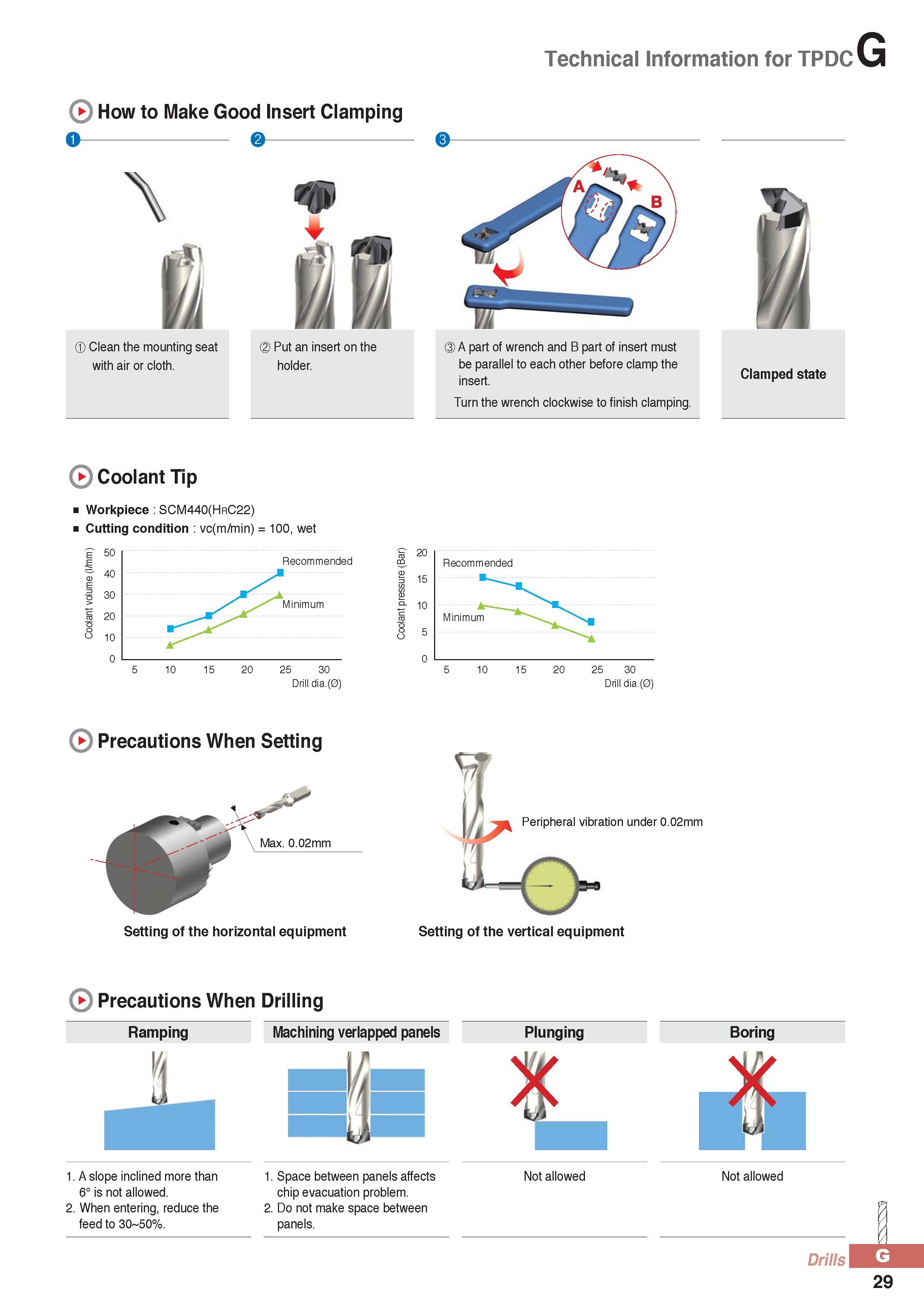

Technical Information for TPDC G How to Make Good Insert Clamping O - Put an insert on the holder. A part of wrench and B part of insert must be parallel to each other before clamp the insert. Turn the wrench clockwise to finish clamping. Coolant Tip Workpiece SCM440(HrC22) Cutting condition vc(m/min) = 100, wet 50 i= r 40 I 30 20 o a 10 0 Recommended m M inimum 5 10 15 20 25 30 Drill dia.(0) Drill dia.(0) Precautions When Setting Setting of the horizontal equipment Precautions When Drilling 1. A slope inclined more than 6° is not allowed. 2. When entering, reduce the feed to 30-50%. 1. Space between panels affects chip evacuation problem. 2. Do not make space between panels. Not allowed Ramping Machining verlapped panels Plunging Boring Not allowed Drills J. 29
